Zebra P4D-0U100000-00 Portable Barcode Printer

The Zebra P4D-0U100000-00 Portable Barcode Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra P4T - Direct Thermal-Thermal transfer printing, 203 dpi, 4" width, 3"/sec print speed, 8MB/16MB, serial and USB interfaces.
Printer Type
Mobile
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4 inch
  • Direct Thermal/Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Carry your printer with you anywhere with its lightweight design
  • 4.12" maximum label width for dependable, desired results
  • Supports fanfold media type for dependable, efficient results with maximum productivity
  • Direct Thermal/Thermal Transfer Printer with mobile application/usage provides maximum usability with better reliance
  • Comes with 16 MB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

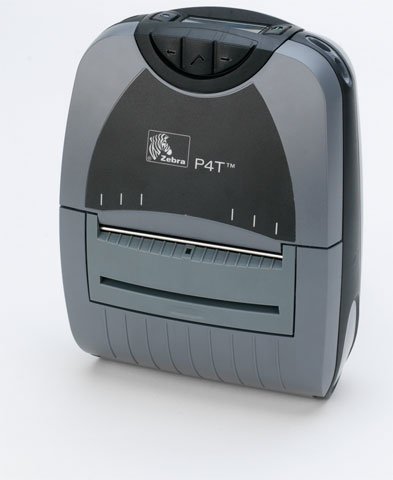

Zebra P4T Portable Barcode Printer Model Overview
Zebra brings you the world's first mobile thermal transfer printer with optional RFID upgradability. With the Zebra P4T, you can print long-life barcode labels and documents up to 4" wide that withstand harsh and outdoor enivronments. With the latest Bluetooth 2.0 or 802.11b/g wireless connectivity, battery monitoring, large LCD, center-loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user-friendly. Don't let the sleek appearance fool you: the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and healthcare.
Zebra P4D-0U100000-00 Portable Barcode Printer Overview

Zebra brings you the world's first mobile thermal printer with optional RFID upgradability. With the P4T, you can print long life bar code labels and documents that withstand harsh and outdoor enivronments. With the latest connectivity, battery monitoring, large LCD, center loading media and large memory, the P4T boasts an array of features that easily handle your printing needs while being intuitive and user friendly. Don't let the sleek appearance fool you, the advanced, ergonomic design stands up to the most demanding work environments. The P4T serves many industries, including government, manufacturing, transportation, logistics, mobile workforce and field service.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Data Matrix
  • Aztec Code
  • RSS
  • GS1 DataBar
  • QR Code
  • PDF-417
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-8
  • EAN-13
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Codabar
  • Code 128
  • UCC/EAN 128
  • Code 39
  • Code 93
Peel Facility:
Yes
Application/Usage:
Mobile
Features:
Shoulder Strap
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Fanfold
  • Receipt
  • Tag
  • Tag Stock
  • Black Bar
  • Gap
  • Continuous Form
  • Continuous Receipt
  • Label
  • Synthetic Media
  • Plain Paper
Media Sensor:
  • Out Of Ribbon Sensor
  • Transmissive Media Sensor
Media Thickness:
8.50 mil
Maximum Roll Diameter:
2.60"
Maximum Label Width:
4.12"
Label Core Size:
0.75"
Fonts & Emulation
Language Emulation:
  • CPCL
  • EPL
  • ZPL
  • XML
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
4200 mAh
Physical Characteristics
Form Factor:
Portable
Height:
8.6"
Width:
7"
Depth:
3"
Miscellaneous
Package Contents:

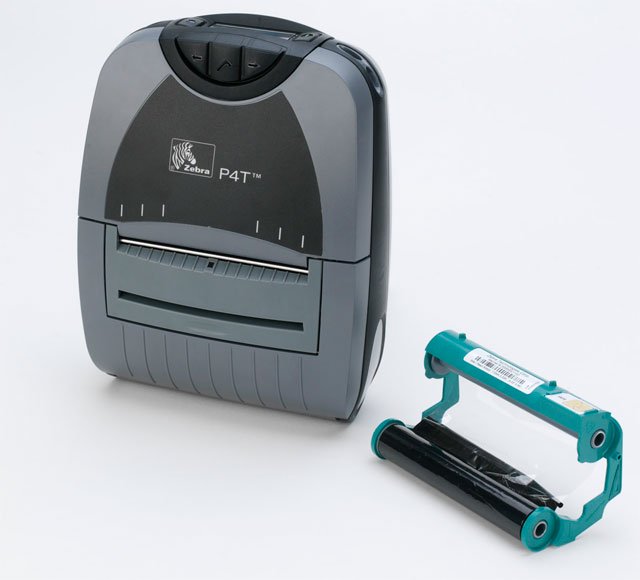

  • P4T Network Mobile Thermal Printer
  • Smart Battery and Cartridge
Additional Information:
  • 32 bit processor
  • Resident scalable fonts
  • Supports vertical or horizontal printing
  • Tolerance of multiple drops up to 5' to concrete
  • Media Handling: Internal media only
  • Open access design for easy media and ribbon loading
  • Large LCD that is daylight readable and low level illumination for low-light conditions
  • International character set support US/Canadian English/Latin 1 & 5 (Incl. Turkish)
  • Regional Grouping Codes (US/Canada/Australia/New Zealand/ Mexico/Nicaragua)
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0635606969538
UPC: 635606969538
EAN: 0635606969538
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra P4D-0U100000-00 Portable Barcode Printer is also known as ZEB-P4D-0U100000-00 or P4D-0U100000-00.
