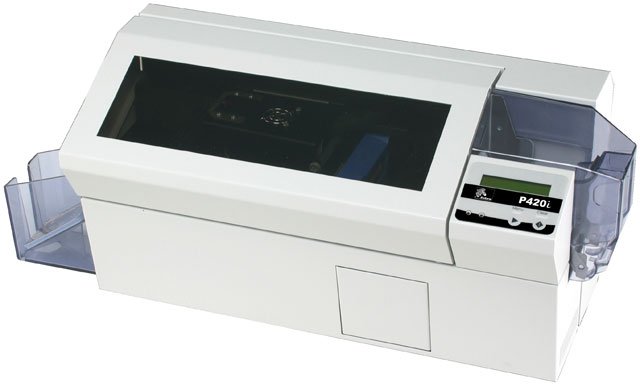

Zebra P420I-0M10U-ID0 ID Card Printer

The Zebra P420I-0M10U-ID0 ID Card Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra P420i - Dual-Sided printing, Parallel & USB interfaces, High-Coercivity Magnetic Stripe (stripe down) encoder, color printing, US Power Cord & Parallel cable included. Order USB cable separately, see accessories.

Designed for versatility in the most demanding situations
300 maximum print resolution (dpi) for your convenience and easy usage
The printer offers professional quality documents that can be printed either in color or monochrome
A smartly perfect card printing solution for small-scale businesses, schools and organizations that need a simple, reliable and affordable printing solution
Supports pvc composite media type for better reliance and maximum usability
Comes with 4 MB standard memory for timely printing with added reliability
2.12" x 3.38" - CR-80 Card media size for maximum feasibility and better accommodation of your requirements

Need a different version? See all Zebra P420i ID Card Printers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Zebra P420i ID Card Printer Model Overview

The Zebra P420i is a high-performance ID card printer that can print 102 cards per hour (35 sec/card). The P420i features parallel, USB and Ethernet interfaces so it's simple to add to any existing computer station, and with 4 MB of memory detailed card designs (including barcodes) are easily produced. The P420i features YMCKOK printing at a 300 dpi resolution, plus an included card flip-over feature to enable dual-sided printing on every card. For high-quality, high-performance ID card printing needs, the Zebra P420i is an excellent value.

Zebra P420I-0M10U-ID0 ID Card Printer Overview

With its LCD display and convenient user features, this rugged, dual-sided card printer readily prints high quality, personalized photo ID cards for high volume applications. Enhanced iSeries functionality makes high image quality card printing a simple function for all users.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Card Print

Print Color Capability:

Color

Maximum Color Print Speed:

35 Second

Maximum Print Resolution (dpi):

300

Barcode Symbology Supported:

Code 39
Code 128-B
Code 128-C
Interleaved 2 of 5
UPC-A
EAN-8
EAN-13
PDF-417

Encoding Technology:

Magnetic Stripe Encoder

Memory

Standard Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

PVC Composite
PVC Card

Media Size:

2.12" x 3.38" - CR-80 Card

Media Handling:

1 x Input Hopper - 100 Sheet Capacity

Media Thickness:

60 mil

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

10.8"

Width:

20.9"

Depth:

10.2"

Miscellaneous

Package Contents:

P420i Card Printer
Power Cord
Cleaning Kit
Parallel Cable
Demo Software
Cleaning Cartridge
Card Output Hopper
Driver & Documentation CD's
6 Panel (YMCKOK) Card Ribbon

Cables Included:

Additional Information:

Stripe Down HICO Magnetic Encoder
Card feeder capacity: 100 cards (30 mil)
Card output hopper capacity: 100 cards (30 mil)
Printing: Color dye sublimation and monochrome thermal transfer

Platform Supported:

Certifications & Standards:

FCC Class B
CE
UL
CUL

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212103

Q&A

Questions? Get help from
an ID Expert!

The Zebra P420I-0M10U-ID0 ID Card Printer is also known as ZCD-P420I0M10UID0 or P420I0M10UID0.
