Zebra P1009545 Receipt Printer

The Zebra P1009545 Receipt Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra KR403 - KR403 Kiosk Printer (Serial and USB)
  • A smart and inexpensive solution to print temporary documents
  • 203 maximum print resolution (dpi) offers great dependability with added efficiency
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Conveniently print your receipts
  • 3.25" maximum label width for your convenience and feasible usability
  • Supports roll paper media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with desktop application/usage provides reliable, feasible printing solution
Read More

Need a different version? See all Zebra KR403 Receipt Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra P1009545 Receipt Printer
Zebra P1009545 Receipt Printer Zebra P1009545 Receipt Printer Zebra P1009545 Receipt Printer
Zebra P1009545 Receipt Printer
Zebra P1009545 Receipt Printer
Zebra P1009545 Receipt Printer
Full specifications (PDF)

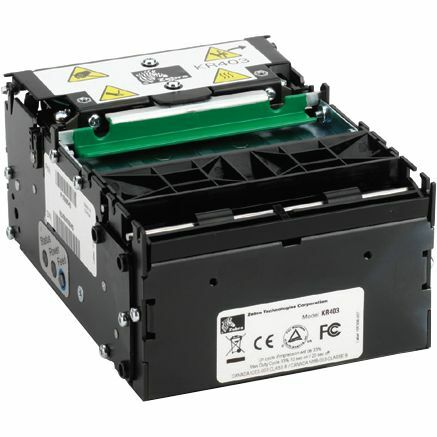

Zebra KR403 Receipt Printer Model Overview
Building on Zebra kiosk printers' reputation for reliable performance in tough printing environments, the KR403 receipt printer offers enhancements ranging from excellent print quality to expanded memory, fonts and bar code sets, including the retail industry required GS1 barcode.
Zebra P1009545 Receipt Printer Overview

The KR403 is easy to integrate into kiosk designs thanks to its compact footprint, range of mounting configurations, and Zebra Programming Language (ZPL), which increases functionality and allows for a wide variety of applications. And, it decreases total cost of ownership and raises customer satisfaction with features that reduce upkeep and downtime, including large media roll capacity for fewer roll changes, automatic remote alerts, and paper-jam-preventing looping presenter with retract-and-retain function.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
3.10"
Barcode Symbology Supported:
  • Code 128
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • EAN-18
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • MSI
  • MSI-3
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Micro PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • PDF-417
Application/Usage:
Desktop
Memory
Flash Memory:
1.50 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Black Mark
  • Label
Media Sensor:
  • Reflective Media Sensor
  • Out Of Paper Sensor
  • Paper Low Sensor
Media Thickness:
4 mil
Maximum Roll Diameter:
9.80"
Maximum Label Width:
3.25"
Fonts & Emulation
Language Emulation:
ZPL
Power Description
Power Source:
Battery
Input Voltage:
24 V DC
Physical Characteristics
Height:
2.7"
Width:
4.2"
Depth:
5.7"
Weight (Approximate):
2.43 lb
Miscellaneous
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0783555039007, 0799198600559, 3609740030390, 5712505797815
UPC: 783555039007, 799198600559
EAN: 0783555039007, 0799198600559, 3609740030390, 5712505797815
UNSPSC: 45101512
Questions? Get help from
a POS Expert!

What is your POS application?

The Zebra P1009545 Receipt Printer is also known as ZEB-P1009545 or P1009545.
