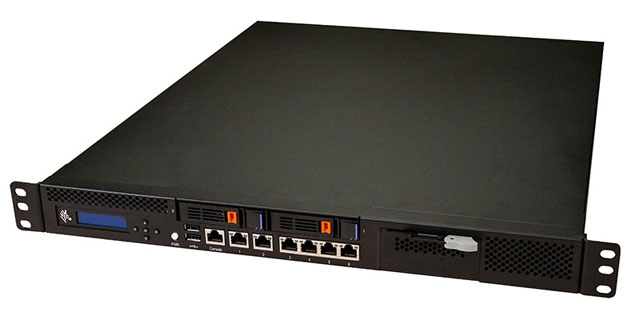

Zebra NX-7520-100R0-WR Wireless Controller

The ExtremeWireless WiNG NX 7500 Integrated Services Platform is designed to deliver next-generation wireless solutions for midsize and campus environments. Powered by the advanced WING 5 Operating System, this platform enhances WLAN intelligence, allowing for efficient routing of transmissions and seamless access point management through a single graphical interface. With plug-and-play functionality and centralized troubleshooting, this controller ensures superior performance, scalability, and security, accommodating up to 2,048 network elements. It is equipped with a modular design, enabling future upgrades that protect your investment while optimizing operational efficiencies.

Key Features:

• WING 5 OS: Enables a fully network-aware WLAN with enhanced routing efficiency.
• Zero-Touch Installation: Automates equipment discovery and deployment for easy setup.
• Hierarchical Management: Manage all locations via a unified interface.
• Centralized Troubleshooting: Remote tools for effective network diagnostics across distributed architectures.
• Modular Design: Upgrade features as bandwidth requirements grow with 10G capability.

Specifications:

• Physical Characteristics:
  • Dimensions: 1U, rack-mountable (17.2 in W x 1.76 in H x 21.28 in D)
  • Weight: NX 7510 - 41.8 lb / 19 kg; NX 7520 - 44 lb / 20 kg; NX 7530 - 46.2 lb / 21 kg
• Memory & Storage:
  • 16GB RAM
  • 64GB solid-state drive
• Performance:
  • Supports up to 2048 access points
  • 20 Gbits/sec data throughput
  • 8 Gbits/sec crypto throughput
• User Environment:
  • Operating Temp: 32°F to 104°F / 0°C to 40°C
  • Storage Temp: -4°F to 167°F / -20°C to 75°C
• Power:
  • Power Consumption: 110 Watts
  • Operational Supply: NX 7510/NX 7530 - 300 Watts AC; NX 7520 - 300 Watts DC
