Zebra MT2070 – Mobile Computer – Windows CE 5.0 – 64 MB

Part Number: MT2070-HD4D62370WR
Model: MT2000
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
64 MB
IP Rating
IP54
Interface Options
Bluetooth
WWAN
No

Product Description:

  Mobile Computer, Zebra MT2070, Batch, Windows CE 5.0, IP54, 21 Numeric, Gun, Bluetooth, 64MB/64MB, 2D Imager, Scanner Only, Use either RS-232 Cable (Part# CBA-R12-S07PAR) or USB Cable (Part# CBA-U12-S07PAR) plus 12v (Part# PWR-BGA12V50W0WW) for tethered mode for this configuration, Worldwide
Explore all Zebra MT2000 Mobile Computers
Add to Quote

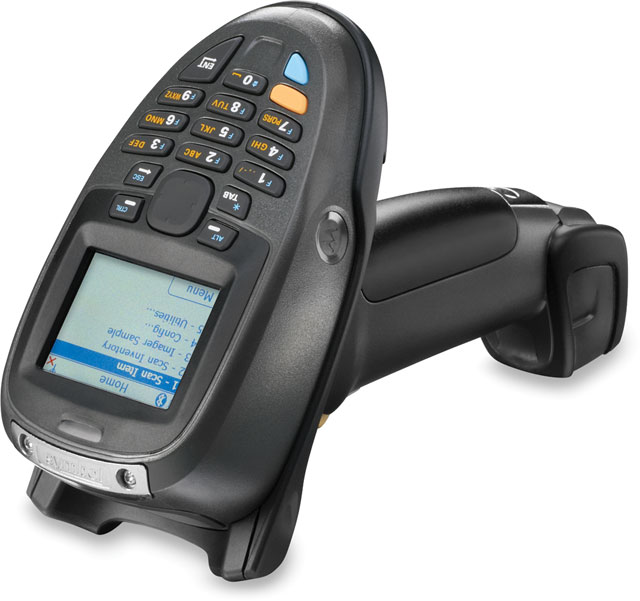

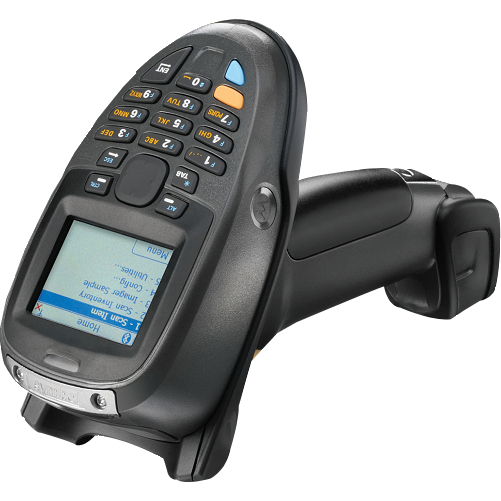

Zebra MT2070-HD4D62370WR Mobile Computer
Zebra MT2070-HD4D62370WR Mobile Computer
Zebra MT2070-HD4D62370WR Mobile Computer Zebra MT2070-HD4D62370WR Mobile Computer
Full specifications (PDF)

Zebra MT2000 Mobile Computer Model Overview

The MT2000 Series combines the simplicity of a scanner with the intelligence of a mobile computer, providing advanced 1-D/2-D barcode, DPM and image capture, as well as the ability to key in and view data. 802.11a/b/g, Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of applications, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment. Built on the .Net platform for easy application development, the MT2000 Series also comes pre-loaded with inventory software and an MCL client to facilitate porting of new and legacy applications.
Zebra MT2070-HD4D62370WR Mobile Computer Overview
Scanners are a key tool for your employees, helping them do their work faster and easier. But for those employees who also need to view and key in data, it might not be enough.

The MT2000 Series combines the simplicity of a scanner with the intelligence of a mobile computer, providing advanced 1D/2D bar code, DPM and image capture, as well as the ability to key in and view data. 802.11a/b/g, Bluetooth, corded and batch connectivity options provide the flexibility to meet a wide range of applications, and the ergonomic yet rugged design offers comfortable, reliable operation throughout your environment.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Batch
Image Sensor Type:
Imager
Scanner Range:
High Density
Drop Specification (To Concrete):
72"
Air Electrostatic Discharge (+/-):
15kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Indirect Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale PXA270
Processor Speed:
312 MHz
Memory
Standard Memory:
64 MB
Flash Memory:
64 MB
Display & Graphics
Screen Mode:
QVGA
Screen Resolution:
320 x 240
Display Color:
Color
Keyboard/Keypad
Number of Keys:
21
Keyboard Type:
Numeric
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
USB:
Yes
Serial:
Yes
Software
Operating System:
Windows CE 5.0
Battery Information
Battery Capacity:
2400 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Height:
7.8"
Width:
3.1"
Depth:
5"
Weight (Approximate):
13.50 oz
Miscellaneous
Certifications & Standards:
  • IP54
  • FIPS 140-2

Electrical Safety:

  • Certified to UL60950-1
  • CSA C22.2 No. 60950-1
  • EN60950-1

EMI/RFI:

  • FCC Part 2 (SAR)
  • FCC Part 15 Subpart B - Class B
  • RSS210
  • EN 301-489-1, 489-17

Laser Safety:

  • IEC Class 2
  • FDA Class II in Accordance with IEC60825-1
  • EN60825-1
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211715
