Zebra MP7201 – Barcode Scanner – Scanner Only

Part Number: MP7201-LNSLL000US
Model: MP72
to get Free Ground Shipping on your order.
3-year Premium Plus ($54.70)
No, stay at premium support package
$2,175.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
1D: All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm and future GS1 Digital Link barcodesDigimarc: Digimarc barcodes
Image Sensor Type
Imager

Product Description:

  Barcode Scanner, Zebra MP7201, Long, Single Interval Scale, Sapphire Glass, Color Camera, United States

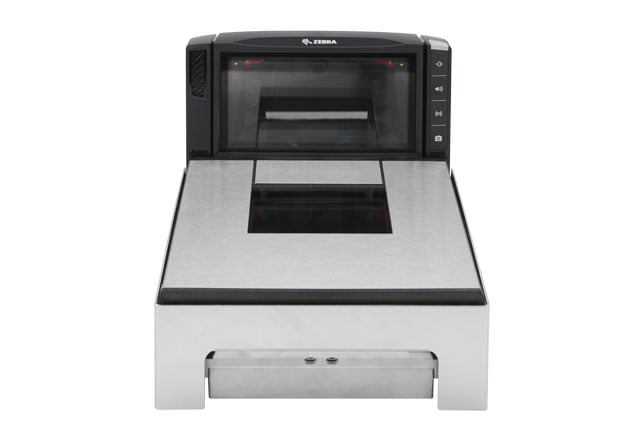

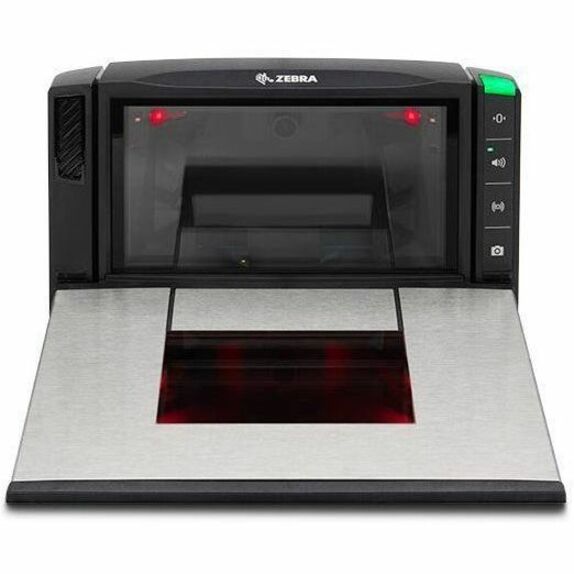

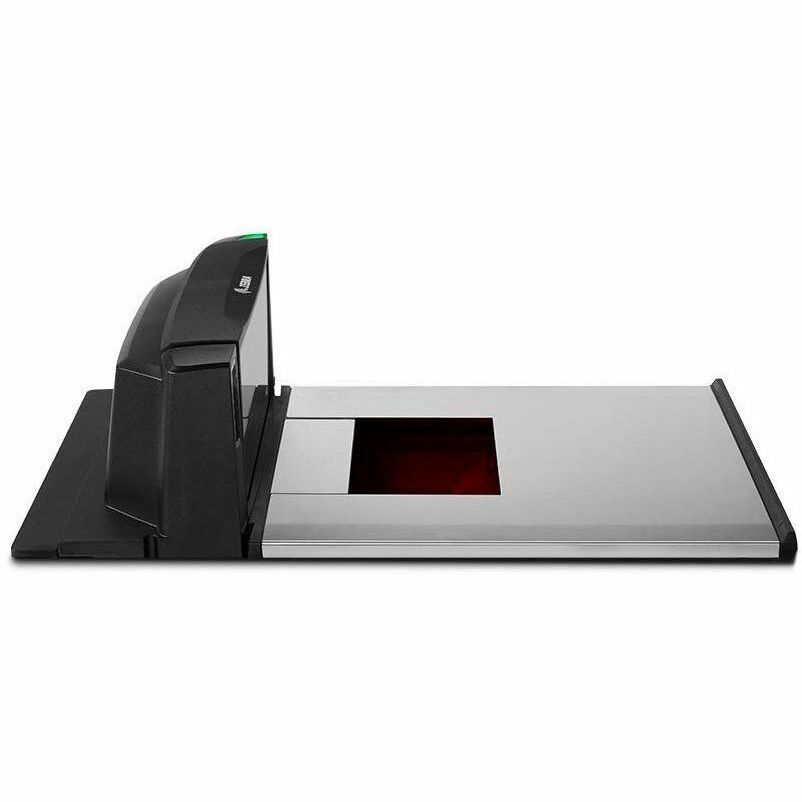

Zebra MP72 Barcode Scanner Model Overview

The MP72 Series Multi-Plane Scanner/Scale by Zebra revolutionizes the checkout experience, combining speed and innovation. This state-of-the-art scanning solution ensures maximum efficiency at the point of sale, enabling swift transactions with minimal effort. With advanced features like an optional HD color camera, it not only captures a wide range of barcodes but also enhances security and reduces shrinkage. The intelligently designed platter allows for accurate weight measurements, making it ideal for high-volume retail environments.


Key Features
  • Premium scanning performance with the latest PRZM Intelligent Imaging technology for quick reading of damaged or poorly printed barcodes.
  • Optimized for 2D barcodes and digital links, preparing your checkout lanes for evolving consumer demands.
  • Enhanced self-checkout capabilities with optional color camera for improved customer interaction and fraud prevention.
  • Lowest power consumption in its class, utilizing up to 50% less power than other scanners to reduce operational costs.
  • Easy integration with existing POS systems for seamless deployment across various retail formats.

Specifications
  • Dimensions: Long scanner - 20 in. L x 11.5 in. W x 4.00 in. D; Medium scanner - 15.7 in. L x 11.5 in. W x 4.00 in. D; Short scanner - 13.9 in. L x 11.5 in. W x 4.00 in. D
  • Weight: Long scanner - 13.10 lb; Long scanner/scale - 17.85 lb; Medium scanner - 11.20 lb; Medium scanner/scale - 15.95 lb; Short scanner - 11.55 lb
  • Scan Capability: Supports all major 1D and 2D barcodes including GS1 and Digimarc barcodes
  • Power Consumption: Idle Mode - 2.0 W; Active Mode - 2.75 W
  • Environmental Sealing: IP5X rated for dust resistance
  • Warranty: One Year from date of shipment against defects in workmanship and materials
Zebra MP7201-LNSLL000US Barcode Scanner Overview

Redefine the checkout experience with unmatched speed and unrivaled innovation

In an age of endless shopping choices, customers expect to get in and out of stores quickly, with a choice of how they shop. Set a new standard for checkout convenience with the MP72 Series Multi-Plane Scanner/Scale.1 As Zebra's latest bioptic scanner, the MP72 Series delivers the fastest checkout performance yet - with premium scanning speeds and an ease of use that ensures every customer enjoys a swift and seamless experience. Innovative features include an optional color camera that enables computer vision applications and helps minimize shrink, so you can optimize your workforce and provide customers with convenient self-checkout options without hurting your bottom line. A smart investment, the MP72 Series makes it easy and cost-effective to modernize your checkout with low energy consumption, superior uptime and easy integration with existing infrastructure.

Exceed Expectations with Faster-Than-Ever Checkouts

Premium scan performance from an industry leader

With a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology, the MP72 Series offers unmatched scanning speed and simplicity on virtually any 1D, 2D, GS1 or Digimarc®, paper and mobile barcode. Poorly printed, damaged, crinkled or faded barcodes won't slow down your checkouts. Offset illumination makes it even easier to scan reflective barcodes on customer phones and glossy packaging.

Future-ready with optimized 2D and Digital Link performance

As information-rich 2D barcodes like GS1 Digital Link become more prevalent at the POS, your customers still expect the easy swipe experience of 1D. New hardware and software advancements deliver significantly better 2D performance, helping ready your checkout lanes for the rise of 2D barcodes.

Maximum checkout speeds with up to 2x larger fields of view

? With high swipe speeds and fields of view that are up to 100% larger than other scanners in its class2, the MP72 Series makes scanning second nature. There's less need to carefully position barcodes - providing a simpler experience for everyone, from experienced cashiers to first-time users.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2D:

  • All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm and future GS1 Digital Link barcodes

Digimarc:

  • Digimarc barcodes
Image Sensor Type:
Imager
Scan Pattern:
Area
Scanner Range:
Standard Range
Features:
  • Data Formatter
  • Notification LED
  • Sensormatic EAS
  • Checkpoint EAS
  • Diagnostic Reporting
Image Formats:
  • BMP
  • JPEG
  • RAW
Maximum Ambient Light:
86080 lux
Illumination Type:
LED
Illumination Color:
White
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • IBM 46XX
Power Description
Maximum Operating Power Consumption:
2.75 W
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
20% to 95%
Physical Characteristics
Form Factor:
Fixed Mount
Durability:
Spill Resistant
Height:
5"
Width:
11.5"
Depth:
4"
Length:
20"
Weight (Approximate):
17.86 lb
Miscellaneous
Ingress Protection (IP) Rating:
IP5X
Application/Usage:
  • Retail
  • Merchandising
  • Warehouse
  • Pharmacy
  • Self-checkout
  • Loyalty Program
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Zebra MP7201-LNSLL000US Barcode Scanner is also known as ZEB-MP7201LNSLL000US or MP7201LNSLL000US.
