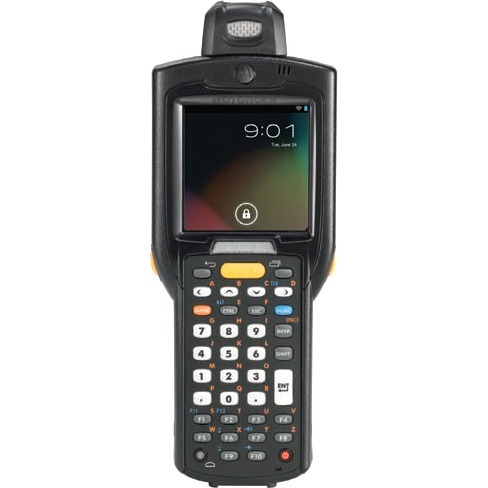

Zebra MC32N0-RL3SAHEIA Mobile Computer

A newer version of this item is available.
It is replaced by the Zebra Mobile Computer.

Zebra MC3200 Rotating Head - Mobile Computer, Zebra MC3200, Rotating Head, 1D Laser, Android Jelly Bean, 38-Key Keypad, Wi-Fi/Bluetooth, Standard Capacity Battery, Expanded Memory.Interface Cables And Charging Cradle Sold Separately. Single Slot Charging Cradle Kit (Part# Crd-MC32-100Us-01). Four Slot Charging Cradle Kit (Part# Crd3000-400Ces).

RAM Memory

1 GB

IP Rating

IP54

Interface Options

Bluetooth, Wi-Fi

Operating System

Android 4.1

Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
Built-in Wi-Fi enables seamless transfer of captured images and scanned data between devices
3" LCD screen is ideal for scan intensive applications
Features Alpha keypad to meet different client and application needs
Improve work efficiency with laser scanning engine
Android 4.1 Jelly Bean offers advanced notifications, voice search, and android beam with a fair level of performance
microSD card slot gives an extra storage option
Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections

Need a different version? See all Zebra MC3200 Mobile Computers

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Zebra MC3200 Mobile Computer Model Overview

Zebra's MC3200 mobile computer allows you to re-set the bar for productivity in inventory management with the next generation in the class leading MC3000 Series. The MC3200 has unparalled barcode scanning performance. Whether you choose the 1D laser or 2D imager engine, your workers get Zebra's most advanced scanning technology, able to capture barcodes as fast as they can press the trigger, regardless of whether items are in hand or on high racks in the warehouse, or whether barcodes are scratches, poorly printed or dirty. The MC3200 provides desktop style application performance that improves employee productivity and on-the-go satisfaction. The MC3200 is rugged and ready for the store floor, back room, warehouse or loading dock.

Zebra MC32N0-RL3SAHEIA Mobile Computer Overview

Redefine productivity and reliability with the MC3200 mobile computer, the next generation in the class-leading MC3000 Series, now with more options to meet your needs. Choose the right operating system for your business - Android Jelly Bean or Microsoft Embedded Compact 7. Your choice of our most advanced 1D laser or 1D/2D imager scan engine allows your workers to easily capture bar codes in any condition. Three lightweight models - brick, gun and turret - bring all day comfort to every task - from cycle counting to putaway, replenishment and voice-directed picking. And since the MC3000 Series has been one of our most popular mobile computers for over 10 years, you get a tough and tested mobile computer you can trust to take your inventory management efficiency to the next level.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Light Source:

Laser

Scanner Range:

Standard Range

Barcode Symbology Supported:

Drop Specification:

4ft To Concrete @ -4°F to 122°F
5ft To Concrete @ 73°F

Air Electrostatic Discharge (+/-):

20kV DC

Direct Electrostatic Discharge (+/-):

10kV DC

Indirect Electrostatic Discharge (+/-):

10kV DC

Processor & Chipset

Processor Manufacturer:

Texas Instruments

Processor Type:

OMAP 4

Memory

Memory Card Slot:

Yes

Memory Card Supported:

microSD
microSDHC

Maximum Memory Card Size Supported:

32 GB

Display & Graphics

Screen Size:

Screen Resolution:

320 x 320

Display Color:

Color

Display Screen Type:

LCD

Backlight Technology:

LED

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Resistive

Keyboard/Keypad

Number of Keys:

Keyboard Type:

Alpha

Network & Communication

Wireless LAN:

Yes

Wireless LAN Standard:

IEEE 802.11a/b/g/n

Bluetooth:

Yes

Antenna Form Factor:

Internal

Wireless Security:

Legacy
WPA and WPA2 (Personal or Enterprise)
802.1X
WEP40/WAP104
TKIP
AES
TLS
TTLS (CHAP3, MSCHAP, MSCHAPv2, PAP or MD53)
PE AP (TL S3, GTC)
LEAP
FAST (TLS3, GTC)

Software

Operating System:

Android 4.1 Jelly Bean

Battery Information

Battery Capacity:

2740 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Width:

3.2"

Depth:

1.6"

Length:

8.4"

Weight (Approximate):

13.13 oz

Miscellaneous

Package Contents:

MC3200 Rugged Mobile Computer
Battery
Strap
Stylus

Certifications & Standards:

IP54
EN61000-4-2
IEC 68-2-32
MIL-STD 810G
CCXv4
FIPS 140-2

LED Safety:

EN/IEC 62471 for 2D

Radio:

AU: EN 55022
Japan: VCCI -3
Canada: ICES-003 Class B
US: FCC Part 15 Class B
EU: EN 301 489-1, 489 -17

Laser Safety:

IEC /Class 2/FDA ll in accordance with IEC 60825-1/EN 60825-1

Electrical Safety:

UL 60950-1
CSA C22.2 No. 60950-1
EN 60950-1
IEC 60950-1

RF Exposure:

USA: FCC Part 2, FCC OET Bulletin 65 Supplement C
Canada: RSS-102
EU: EN 62311, 62479, 50360, 50566
Australia: Radiocommunications Standard 2003

WLAN and Bluetooth (PAN):

USA: FCC Part 15.247, 15.407
Canada: RSS-210 EU: EN 300 328, EN 301 893
Japan: ARIB STD-T33, T66, T70, T71
Australia: AS/NZS 4268

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0702334648940

UPC: 702334648940

EAN: 0702334648940

UNSPSC: 43211715
