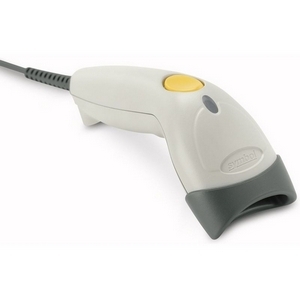

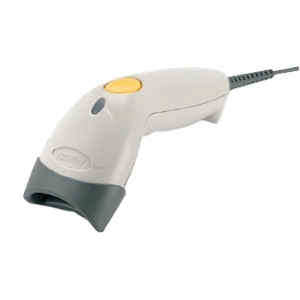

The Zebra LS1203 handheld scanner is your ideal solution for everyday retail scanning needs. Offering high-quality laser scanning with user-friendly ergonomics, this scanner boasts a durable design that is perfect for small businesses such as gift shops, boutiques, and more. Its plug-and-play functionality ensures a hassle-free installation while minimizing training time for employees, leading to enhanced operational efficiency and increased customer satisfaction. With its robust construction and multiple interface options, the LS1203 is designed to deliver reliability, reduce operational costs, and support future POS systems effortlessly. Key features:
Ergonomic design: Lightweight and balanced for maximum comfort during all-day use.
Plug-and-play ease: Eliminates setup and training time for fast implementation.
Durable construction: Withstands multiple drops and ensures minimal maintenance.
High-quality scanning: Accurate 1D laser scanning with Auto-Scan™ mode for seamless operation.
Multiple interfaces: Compatible with USB, RS-232, and Keyboard Wedge for versatile connectivity.
Specifications:
Physical Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
Weight: Approximately 4.3 oz. (122 g) without the cable
Power Source: Host power or external power supply (5+/-10% VDC @ 100 mA)
Operating Temperature: 32° to 122° F (0° to 50° C)
Storage Temperature: -40° to 158° F (-40° to 70° C)
Scan Rate: 100 scans per second
Drop Specs: Withstands multiple 5 ft. drops to concrete
Warranty: 3 years against defects in workmanship and materials
Zebra LS1203-CR10001R Barcode Scanner Overview
The LS1203 handheld Bar Code Reader from Symbol Technologies delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Symbol the global leader in handheld bar code scanning.
Power Device, Zebra, Level Vi AC/DC Power Supply Wall Adapter, With Captive DC Cable And US Adapter Clip AC Input, 100-240V, 0.2A DC Output, 5.2V, 1.1A, 5.7W
What barcode symbologies does the Zebra LS1203-CR10001R support?
The LS1203 supports a comprehensive range of 1D barcode formats including UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS variants, and Chinese 2 of 5. This broad decode capability makes it suitable for most retail and inventory applications without additional configuration.
What interface options are available for the LS1203 scanner?
The LS1203 offers multiple interface options in a single scanner: RS-232, USB, and Keyboard Wedge (KBW). This multi-interface design simplifies installation and integration with various POS and host systems, providing a future-proof solution that ensures compatibility today and tomorrow. We offer interface-specific kits that include cables and power supplies as needed.
Is the Zebra LS1203-CR10001R durable enough for continuous retail use?
Yes, the LS1203 features durable single board construction and meets Zebra's stringent 5 ft. drop test specifications, withstanding multiple drops to concrete. It is designed for continuous usage all day, every day, significantly reducing downtime and repair costs. The scanner operates reliably in retail environments with typical artificial and natural lighting conditions, including direct sunlight.
What are the operating temperature and humidity specifications for the LS1203?
The LS1203 operates in temperatures ranging from 32° to 122° F (0° to 50° C) with humidity tolerance of 5% to 95% relative humidity, non-condensing. Storage temperature range extends from -40° to 158° F (-40° to 70° C). These specifications make it suitable for most indoor retail and warehouse environments.
How fast does the LS1203 scan barcodes?
The LS1203 delivers a scan rate of 100 scans per second with a 650nm laser diode light source. The scanner is bi-directional, meaning it can read barcodes in any orientation, and offers both triggered scanning and Auto-Scan (continuous mode) options for maximum flexibility in retail workflows.
What is included with the LS1203-CR10001R, and what accessories might I need?
The LS1203-CR10001R is sold as a scanner-only unit; cables and accessories must be purchased separately. We offer complete interface kits that include cables and power supplies. For a fully assembled solution, we also provide the complete LS1203-1AZU0100SR kit. Contact us today to determine the right configuration for your specific POS or host system.
The Zebra LS1203-CR10001R Barcode Scanner is also known as
SYM-LS1203CR10001R
or LS1203CR10001R.
Full specifications (PDF)
