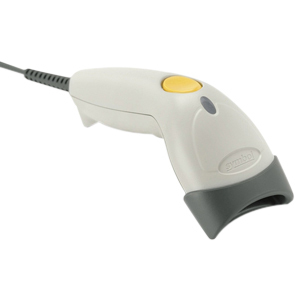

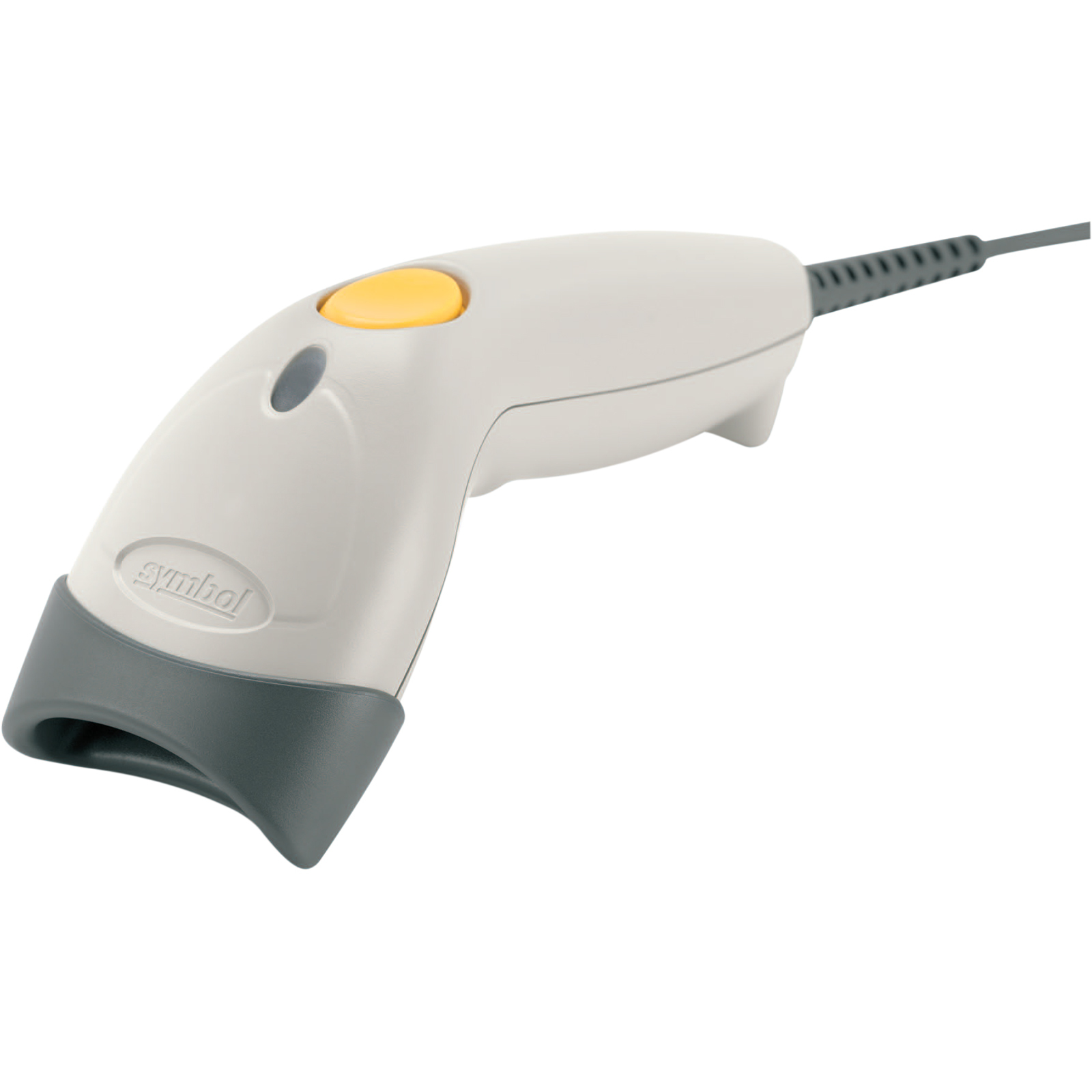

Zebra LS1203 – Barcode Scanner – Corded – 1D – Cable Only

Part Number: LS1203-7AZU0100ZR
Model: LS1203
3-year Premium Plus ($68.42)
3-year Premium ($13.72)
No Support
$144.07
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  Corded Barcode Scanner, Symbol LS1203, 1D Laser, General Purpose, USB, Handheld, Stand not included, USB Cable (Series A Connector, 7ft. Straight, BA-U01-S07ZA), Black

Motorola LS1203 Barcode Scanner Model Overview

Zebra's LS1203 handheld scanner provides excellent value for everyday use. The LS1203 delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld bar code scanning. Featuring multiple interfaces, including RS232, USB, KBW (keyboard wedge) in one scanner, the LS1203 simplifies installation and integration and its futureproof solution ensures compatibility with your host/POS today and tomorrow.
Zebra LS1203-7AZU0100ZR Barcode Scanner Overview

The Zebra LS1203 handheld scanner delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld bar code scanning.


Increased productivity from the start

For point of sale check-out applications, the LS1203 provides the power to improve operational efficiencies right out of the box. The plug-and-play design virtually eliminates installation hassles. The intui-tive ergonomic design eliminates training requirements - employees are up and running in minutes.

Manual keying is eliminated, reducing cashier errors and ensuring that your customers are charged the co-rrect amount. The result is faster checkout, increased customer satis-faction and a quick return on investment. In the back room, the LS1203 automates paper-based processes, such as inventory management, translating into more accurate information and less time spent on day-to-day administrative tasks - and more time spent serving customers.

Durable construction combined with future-proofing

With a single board construction and durable scan element, the LS1203 can easily stand up to daily use and those inevitable drops. With everyday operation you can count on, the LS1203 ensures mini-mal maintenance costs and maximum uptime. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow's POS system.

Proven quality you can trust

When you choose the LS1203, you receive the added assurance of purchasing a product from Zebra - the global leader in handheld bar code scanning with millions of scanners in use every day by the world's largest retailers worldwide. And since even the most durable products require a maintenance plan and support strategy, Zebra has designed a full complement of service offerings to help you protect your investment and maintain peak performance.


Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC/EAN
  • UPC/EAN with Supplementals
  • UCC/EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 TriOptic
  • Code 128
  • Code 128 Full ASCII
  • Codabar
  • Interleaved 2 of 5
  • Discrete 2 of 5
  • Code 93
  • MSI
  • Code 11
  • IATA
  • RSS Variants
  • Chinese 2 of 5
Light Source:
Laser
Image Sensor Type:
Linear
Scan Rate:
100 scan/s
Depth of Field:
  • 0.5" - 4"@5mil
  • 0" - 6"@7.5mil
  • 0" - 7.5"@10mil
  • 0" - 8"@13mil - 100% UPC
  • 0" - 10"@20mil
Scan Pattern:
Bi-directional
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Height:
2.4"
Width:
2.4"
Depth:
7.1"
Weight (Approximate):
4.30 oz
Miscellaneous
Package Contents:
  • Symbol LS1203-7AZU0100ZR
  • USB Type-A Cable
Additional Information:
USB - 4 pin USB Type A Cable

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
  • Taiwan EMC
  • Japan VCCI/MITI/Dentori

Laser Safety:

  • IEC Class 1

Environmental:

  • RoHS
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0853585464787, 1342210229000
UPC: 853585464787
EAN: 0853585464787, 1342210229000
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (45)
  • Mobile Computer Accessories (1)
  • Mounting Hardware and Stands (2)
  • Power Device (7)
  • Scanner Accessories (10)
  • Spare Parts (1)

Recommended Accessories for Model: Zebra LS1203-7AZU0100ZR Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Zebra LS1203-7AZU0100ZR

See All Cables, Connectors, and Adapters for Zebra LS1203-7AZU0100ZR Barcode Scanner >

Top Mobile Computer Accessories Purchased With Zebra LS1203-7AZU0100ZR

Top Mounting Hardware and Stands Purchased With Zebra LS1203-7AZU0100ZR

Top Power Device Purchased With Zebra LS1203-7AZU0100ZR

See All Power Device for Zebra LS1203-7AZU0100ZR Barcode Scanner >

Top Scanner Accessories Purchased With Zebra LS1203-7AZU0100ZR

See All Scanner Accessories for Zebra LS1203-7AZU0100ZR Barcode Scanner >

Top Spare Parts Purchased With Zebra LS1203-7AZU0100ZR

Frequently Asked Questions

The Zebra LS1203 supports a comprehensive range of 1D barcode formats including UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 128, Codabar, Interleaved 2 of 5, Code 93, MSI, and RSS variants. This broad decode capability makes it ideal for retail environments where you encounter multiple barcode standards throughout the day. We offer the LS1203 with full technical documentation to ensure seamless integration with your existing systems.

Yes, the LS1203 features Zebra's stringent durability standards, including single board construction that withstands multiple 5-foot drops to concrete without failure. It's designed for continuous all-day usage, significantly reducing downtime and repair costs in demanding warehouse and retail settings. The scanner operates reliably across a wide temperature range (32° to 122° F) and humidity levels up to 95%, making it suitable for most indoor retail and logistics environments.

The Zebra LS1203 offers multiple interface options in a single scanner: USB, RS-232, and Keyboard Wedge (KBW) connectivity. This multi-interface design simplifies installation and integration while providing future-proof compatibility with your current POS system and host systems. We include the appropriate cables and power supplies with each interface kit to ensure hassle-free deployment.

The LS1203 delivers a scan rate of 100 scans per second with a typical working distance from contact to 8 inches on standard UPC/EAN symbols. The scanner features bi-directional scanning capability and can handle pitch angles up to ±65° and skew angles up to ±60°, allowing operators to scan barcodes from various angles without repositioning. This performance level is ideal for retail checkout and inventory management applications.

The LS1203 features an ergonomic hybrid design with a sleek, lightweight, and balanced form factor that weighs approximately 4.3 ounces without the cable. Its user-friendly ergonomics are specifically designed to reduce operator fatigue during continuous all-day scanning in retail environments like gift shops, boutiques, sporting goods stores, and jewelers. The intuitive plug-and-play design also minimizes setup and training time for faster return on investment.

The LS1203 operates on 5 VDC ±10% at 100 mA, with standby current under 35 mA, and can draw power directly from the host device or an external power supply. This flexible power architecture allows integration with various POS systems and host computers without requiring dedicated power infrastructure. Contact us today to discuss the right power configuration for your specific retail or warehouse setup.

The Zebra LS1203-7AZU0100ZR Barcode Scanner is also known as SYM-LS12037AZU0100ZR or LS12037AZU0100ZR.
