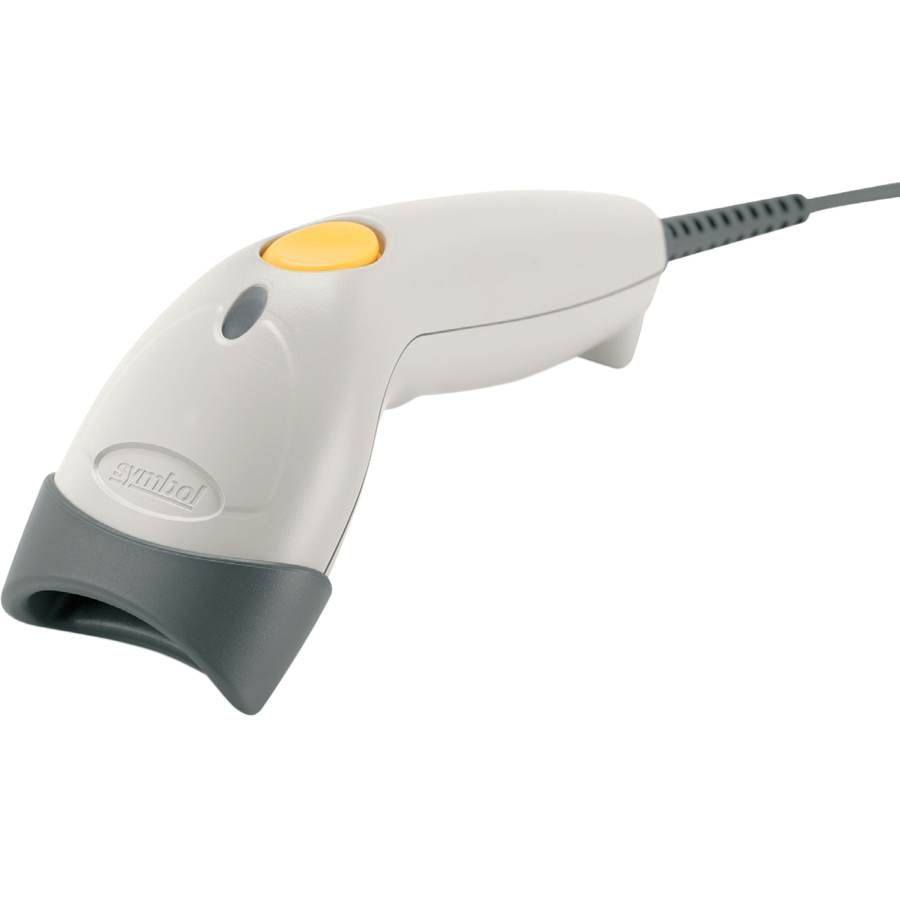

The Zebra LS1203 handheld scanner is your ideal solution for everyday retail scanning needs. Offering high-quality laser scanning with user-friendly ergonomics, this scanner boasts a durable design that is perfect for small businesses such as gift shops, boutiques, and more. Its plug-and-play functionality ensures a hassle-free installation while minimizing training time for employees, leading to enhanced operational efficiency and increased customer satisfaction. With its robust construction and multiple interface options, the LS1203 is designed to deliver reliability, reduce operational costs, and support future POS systems effortlessly. Key features:
Ergonomic design: Lightweight and balanced for maximum comfort during all-day use.
Plug-and-play ease: Eliminates setup and training time for fast implementation.
Durable construction: Withstands multiple drops and ensures minimal maintenance.
High-quality scanning: Accurate 1D laser scanning with Auto-Scan™ mode for seamless operation.
Multiple interfaces: Compatible with USB, RS-232, and Keyboard Wedge for versatile connectivity.
Specifications:
Physical Dimensions: 2.4 in. H x 7.1 in. L x 2.4 in. W (6.2 cm H x 18 cm L x 6 cm W)
Weight: Approximately 4.3 oz. (122 g) without the cable
Power Source: Host power or external power supply (5+/-10% VDC @ 100 mA)
Operating Temperature: 32° to 122° F (0° to 50° C)
Storage Temperature: -40° to 158° F (-40° to 70° C)
Scan Rate: 100 scans per second
Drop Specs: Withstands multiple 5 ft. drops to concrete
Warranty: 3 years against defects in workmanship and materials

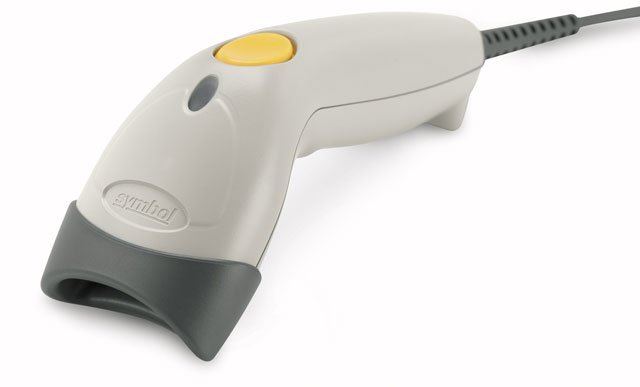

Zebra LS1203-1AZU0100SR Barcode Scanner Overview
The LS1203 Bar Code Reader from Symbol Technologies delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Symbol the global leader in handheld bar code scanning.
Power Device, Zebra, Level Vi AC/DC Power Supply Wall Adapter, With Captive DC Cable And US Adapter Clip AC Input, 100-240V, 0.2A DC Output, 5.2V, 1.1A, 5.7W
What barcode symbologies does the Zebra LS1203 scanner support?
The Zebra LS1203 supports a comprehensive range of 1D linear barcode formats including UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 128, Codabar, Interleaved 2 of 5, Code 93, MSI, IATA, RSS variants, and Chinese 2 of 5. This broad decode capability makes it suitable for retail, inventory, and general-purpose scanning applications across multiple industries.
What connection options are available for the LS1203 barcode scanner?
We offer the Zebra LS1203 with multiple interface options to fit your existing infrastructure: USB, RS-232, and keyboard wedge (KBW) connectivity. This multi-interface design ensures compatibility with your current POS systems and host computers, providing a future-proof solution that simplifies installation and integration.
How durable is the Zebra LS1203 for warehouse and retail environments?
The LS1203 features rugged single-board construction that meets Zebra's stringent 5-foot drop test standards to concrete, making it highly durable for demanding warehouse and retail environments. It's designed for continuous all-day usage with operating temperatures from 32° to 122°F and humidity tolerance from 5% to 95%, significantly reducing downtime and repair costs.
What is the scanning performance and speed of the LS1203?
The Zebra LS1203 delivers a scan rate of 100 scans per second with bi-directional scanning capability using a 650nm laser diode. It provides a typical working distance from contact to 8 inches on standard UPC/EAN symbols, with flexible scanning angles of ±30° roll, ±65° pitch, and ±60° skew for reliable performance in various scanning positions.
Is the Zebra LS1203 suitable for small retail businesses?
Yes, the LS1203 is specifically designed to meet the needs of small businesses and local retailers such as gift shops, boutiques, sporting goods stores, jewelers, video stores, and florists. Its ergonomic hybrid design, lightweight 4.3-ounce form factor, and affordable price point make it an ideal choice for small retailers seeking to reduce data entry errors and boost productivity without significant capital investment.
What power requirements does the LS1203 scanner have?
The Zebra LS1203 operates on 5 VDC (±10%) at 100 mA during active scanning, with standby current under 35 mA. Power can be supplied directly from your host device or through an external power supply, and we include the appropriate USB cable (7ft. Series A connector) and stand with your purchase from Barcodes Inc.
The Zebra LS1203-1AZU0100SR Barcode Scanner is also known as
SYM-LS12031AZU0100SR
or LS12031AZU0100SR.
Full specifications (PDF)
