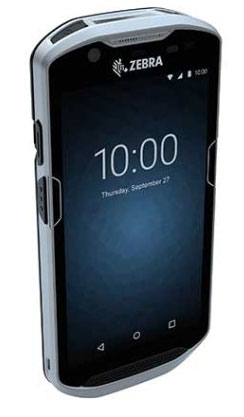

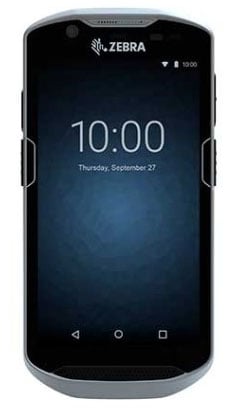

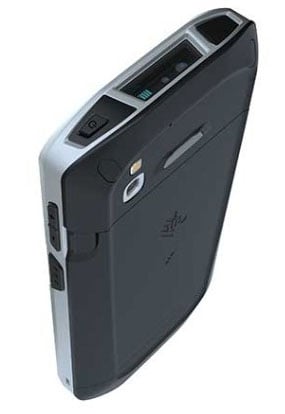

Zebra TC52 – Mobile Computer
Part Number:
KT-TC520K-1PEZU4T-NA
Model:
TC52
Full specifications (PDF)
Zebra TC52 Mobile Computer Model Overview
The TC52/TC57 Touch Computers build on the highly successful TC51/TC56, adding a new platform and new capabilities to deliver the ultimate in enterprise-class touch computing. You get the ultimate user experience — the simplicity of Android with all the business features workers need to maximize productivity and minimize process cycle times. You get the ultimate technology advancements on a cutting edge platform, maximizing the benefits of mobility today, with the future proofing you need to serve your business tomorrow. You get the ultimate collection of value-add apps, Mobility DNA™, with four new complimentary solutions that deliver unparalleled functionality — including the best possible WiFi performance, centralized control of the device update process, control over access to Google Mobile Services (GMS) and more. And optional Visibility Services offer the ultimate in device management capabilities to maximize device value.
Android for instant familiarity
Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly-graphic interactive apps today’s workers expect.
Advanced touchscreen technology
Give your workers touchscreen simplicity. The 5 in. display offers plenty of real estate for graphics-intensive intuitive applications. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And with best-in-class outdoor readability, the screen is easy to read, even in bright sunlight.
Easily capture it all — barcodes, labels and documents
Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc — regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance — no need to ever align the device with the barcode. Need to capture multiple barcodes on a single label or data on a form, such as checkboxes, text fields, signatures and more? You can do it all with the press of a single button with Zebra’s SimulScan, a no-cost pre-installed Mobility DNA application.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers an impressive 14 hours of power — plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy — there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
Active Edge™ Touch Zone for One-touch Feature Access
Your users can easily create unique dedicated soft keys on either side of the display to access their most frequently used device features and applications with single touch simplicity — from the scanner, camera and line-of-business applications to push-to-talk and text messaging.
Rugged and ready for the toughest business day
While these touch computers look like smartphones, the similarities stop there — they are engineered for the enterprise, inside and out. You can drop it in water or on concrete and use it in dusty areas, out in the rain or snow — and still expect reliable operation. The unibody design provides extra impact protection for the sensitive electronics. And the Corning® Gorilla® Glass touch panel and imager window bring maximum scratch-resistance and shatter-proofing to two of the most vulnerable device features.
A platform to handle all your apps — today and tomorrow
The ultra-powerful processor provides superior performance on all voice and data apps. You also get built-in support for the next two versions of Android (P and Q) and future apps, such as artificial intelligence.
Rich locationing support
Easily implement locationing with support for many technologies, including Visible Light Communication (VLC), Bluetooth 5.0 BLE and WiFi, plus Zebra’s SmartLens and MotionWorks solutions.
Support for the latest WiFi enhancement improves WiFi range and speed — with less power
2x2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology allows access points to communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range. And processing is shifted from the mobile device to the access point, extending battery cycle time.
The highest quality voice in its class
Three microphones, high-volume speakers and noise-cancellation technology work together to ensure that callers on both ends of every call can hear every word — even in the noisiest areas.
New 5 MP front-facing camera supports more advanced apps
With the new front-facing camera, you get built-in support for the latest positioning technology, Visible Light Communication (VLC) which allows you to track the location of shoppers and workers with compatible overhead LED lighting. Video calling improves service and productivity. Customers enjoy a more personal touch — and remote experts can see a repair in process to help onsite technicians resolve issues faster and increase first-time-fix rates.
Complete cellular network flexibility with single device simplicity
The TC57 provides all workers anywhere in the world with dependable cellular service. Support for carrier aggregation substantially improves application performance by increasing data capacity and speeds. It is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.
Ultra high-resolution photos and videos
The 13 MP color rear camera captures highly detailed photos and videos — ideal for proof-of-condition/delivery/service, onsite technical support and more.
Bluetooth 5.0 for twice the speed and four times the range — with less power
Improved data speeds up to 2 Mbps increases application flexibility and performance for Bluetooth peripherals, such as printers and headsets, while Bluetooth Low Energy reduces power requirements to extend battery cycle times.
Maximize productivity with enterprise accessories
Unlike consumer smartphones, you get a full suite of backward compatible business-class accessories that make the TC52/TC57 easier to use and manage, from a snap-on trigger handle for easier scanning to unique ShareCradles that charge it all — devices and batteries.
WorryFree WiFi — dependably superior WiFi, delivered
Provide every worker with the best possible WiFi connection, every minute of every shift. This free tool delivers near instant application response times, unmatched roaming performance, plus exceptional voice quality and network diagnostics — everything you need to leverage your WiFi network to increase workforce productivity and better serve customers.
PowerPrecision Console — prevent aging batteries from reducing workforce productivity
This free PC-based solution provides an easy-to-read dashboard that allows you to quickly identify and remove aging batteries from your battery pool — before they impact workforce productivity and mobile device uptime.
End-to-end revolutionary control of the update process with LifeGuard
Updating your enterprise-class Android mobile devices is often time-consuming, costly, complex and difficult to track. Now you can do it all with LifeGuard Analytics — free with your Zebra OneCare® Support contract. View available updates along with priority and which devices are eligible for the update. Automatically update your devices over the air with the press of a button. And easily monitor and manage the status of updates in real time.
Easily manage access to Google Mobile Services (GMS) with Restricted Mode
StageNow’s new Restricted Mode delivers an industry first — an easy way to simply click to deactivate Google Mobile Services (GMS) that come standard with the operating system — and reactivate should you need them down the road.
Improve device value with Zebra’s optional Visibility Services
Get the device management data you need to take device uptime, operational efficiency and the return on investment to the next level. Asset Visibility Service (AVS) is an easy to use and deploy solution that doesn’t require an Enterprise Mobility Management (EMM) system. Operational Visibility Services (OVS) is a comprehensive device management solution that leverages your EMM information to help get more value out of your Zebra mobile devices. These optional services can be added to your optional Zebra OneCare support contract.
RETAIL ASSOCIATES
• Price/inventory checks • Loyalty apps • Item locator • Price management • Line busting/POS • Assisted selling • Electronic coupons • Store transfers • Gift registry lookup
RETAIL MANAGERS
• Workforce management • Planogram management • Promotion compliance • Merchandising
DIRECT STORE DELIVERY DRIVERS
• Order automation • Delivery tracking • Inventory management • Customer support
FIELD SERVICE TECHNICIANS
• Asset management • Parts inventory • Invoicing • Scheduling and location-based services
LIGHT COURIER DRIVERS
• Proof of delivery • Asset management • Location services • Invoicing
GOVERNMENT AND PUBLIC SAFETY
• eCitation • Situational awareness • Communication and collaboration • Asset management
TC52/TC57 Series Specifications
Standard Features
- Android 10 (upgradable through Android 11/R) with Zebra’s Restricted Mode for control over GMS (Google Mobile Services) and other pre-loaded apps
- 5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
- Dual mode capacitive touch with stylus or bare or gloved fingertip input (conductive stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
- Qualcomm Snapdragon 660 octa-core, 2.2 GHz
- 4GB RAM/32GB Flash Memory
- 13 MP (rear) and 5 MP (front) camera
- 1 nano SIM; 1 eSIM (TC57 only)
- Wi-Fi (802.11a/b/g/n/ac/d/h/i/r/k/v/w); Wi-Fi certified; IPv4, IPv6, 2x2 MU-MIMO
- Bluetooth 5.0 BLE
- IP68 and IP65
Optional Features and Accessories
- Zebra OneCare® SV (Special Value Add) and Essential and Select support services
- Snap-on USB/Charge Back Accessory
- Snap-on Trigger Handle Accessory
- Rugged Boot Accessory
- TC5X ShareCradles
- Zebra Bluetooth Printers
- Zebra Cordless Scanners
TC52/TC57 Series vertical markets and applications:
Brand
Zebra
Model
TC52
Scan Range
Standard Range
Interface Options
Bluetooth
Recommended Accessories
Category
- Batteries (4)
- Cables, Connectors, and Adapters (9)
- Carrying and Protective Accessories (12)
- Docks and Cradles (13)
- Headsets (1)
- Miscellaneous (1)
- Mounting Hardware and Stands (2)
- Power Device (12)
- RAM Mount Mounting Systems (1)
- Scan Handles (3)
- Screen Protector (1)
- Spare Parts (2)
- Stylus (1)
Recommended Accessories for Model: Zebra KT-TC520K-1PEZU4T-NA Mobile Computer
Top Batteries Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra BTRY-TC51-43MA1-01 BatteryBatteries, Zebra, Power Precision+ Spare Lithium Ion Battery, 4150 mAh, Advanced Technology, Provides A High Level Of Intelligence (State Of Charge And State Of Health) To Deliver Maximum Performance, Single, for TC52In Stock$168.85 -
Zebra BTRY-TC51-43MA1-10 BatteryBatteries, Zebra, TC5X Power Precision+ Spare Lithium Ion Battery, 4150 mAh, Advanced Technology, Provides A High Level Of Intelligence (State Of Charge And State Of Health) To Deliver Maximum Performance, (10-Pack)In Stock$1,641.26 -
Zebra BTRY-TC51-43HC1-01 BatteryBatteries, Zebra, TC5X Healthcare Power Precision+ Spare Lithium Ion Battery, 4150 mAh, Healthcare Disinfectant Housing, Advanced Technology, Provides A High Level Of Intelligence (State Of Charge And State Of Health) To Deliver Maximum Performance, (Single)In Stock$168.85
Top Cables, Connectors, and Adapters Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra 25-124330-01R Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, This Is A Micro-USB Active-Sync Cable That Allows For Active-Sync Connectivity Between The Mobile Computer In A Single-Slot Or Two-Slot Cradle And A Host Device, This Cable Is Typically Used With A Single-Slot USB/Charging Cradle And The Length Is Approximately 48".In Stock$17.58 -
Zebra CBL-TC51-HDST25-01 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, 2.5mm Female To 3.5mm Male Headset Adapter Cable, Converts 3.5mm Audio Jack To A Standard 2.5mm Barrel Jack Connector, Allows Headsets With 2.5mm Barrel Jacks To Be Used With TC5X.Item on backorder — chat for lead time$48.04 -
Zebra CBL-TC51-HDST35-01 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Zebra, 3.5mm Keyed/Collared Female To 3.5mm Male Headset Adapter Cable With A 3.5mm Jack, Required For Use With Headsets That Use A Locking Keyed Connector On The Headset Jack, Includes Retention/Anti-Rotation Lock (ADP-Lock-3.5Ht1-01).Item on backorder — chat for lead time$50.44
Top Carrying and Protective Accessories Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra SG-TC51-BHDSTP1-01 Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, TC51 Basic Hand strap Kit (Single), Allows TC51 Devices Without A Rugged Boot To Be Configured With A Hand strap, For Use With TC51 Wlan Configurations Only, Not Compatible With TC56 Units, Does Not Have Tether Loop Bar On Bottom Of Device.Item on backorder — chat for lead timePlease Call for Pricing or to Purchase -
Zebra SG-TC51-EHDSTP1-03 Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, TC5X Replacement Hand Straps For Units With Rugged Boot (3--Pack), Provides Added Safety Against Accidental Drops Of The Device While On The Move.In Stock$145.54 -
Zebra SG-TC51-HLSTR1-01 Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, TC5X Soft Holster For Vertical Orientation With Open Bucket Design For Easy Insertion And Removal, Non Rotating, Accommodates Rugged Boot And Trigger Handle, Includes Loop And Tether Point For Optional Stylus.In Stock$138.34
Top Docks and Cradles Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra SAC-TC51-4SCHG-01 Docks and CradlesDocks and Cradles, Zebra, TC51/56 4-Slot Battery Charger, Charges Four Spare Batteries, Includes Power Supply And DC Cable, Country Specific AC Line Cord, Sold Separately.In Stock$548.37 -
Zebra CRD-TC51-1SCU-01 Docks and CradlesDocks and Cradles, Zebra, TC51/56 Single-Slot Charge/USB ShareCradle, Charges And Allows USB Communication To One Device, Includes Power Supply And DC Cable, Country Specific AC Line Cord And USB Cable, Sold Separately.In Stock$405.47 -
Zebra CRD-TC51-5SC4B-01 Docks and CradlesDocks and Cradles, Zebra, TC51/56 5-Slot Charge Only Cradle With 4-Slot Spare Battery Charger, Charges Up To 4 Devices And Up To 4 Spare Batteries, Includes Power Supply And DC Cable, Country Specific AC Line Cord, Sold Separately.In Stock$1,180.40
Top Headsets Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra HDST-35MM-PTVP-01 HeadsetHeadsets, Zebra, Over The Ear Headset (3.5mm) With Mic And PTT Button With Clip, Rotating Earpiece For Right/Left Ear Configuration, Built-In Cord Wrap, And Keyed For A Locking Failsafe Connection.Item on backorder — chat for lead time$491.83
Top Miscellaneous Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
RAM Mount RAM-B-166U ProductsUNPKD RAM SUCTION MOUNT TWIST LOCK RAM MOUNT PRODUCTS HAVE A 10-12 WEEK LEAD TIME.In Stock$46.10
Top Mounting Hardware and Stands Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra BRKT-SCRD-SMRK-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, A Rack/Wall Mounting Bracket, For One Five-Slot ShareCradle, Up To Four Single-Slot ShareCradles, Or Up To Four 4-Slot Battery Chargers, It Can Be Mounted On Standard 19 Network Rack Or On A Wall, Includes Cable Routing-Slots, Removable Power Supply Tray And Screws Required For Installation.In Stock$225.56 -
Zebra KT-TC51-ETH1-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, USB To Ethernet Adapter Kit For Single-Slot USB/Charging ShareCradle (CRD-TC51-1Scu-01) To Provide Ethernet Connectivity, Includes USB To Ethernet Module (Mod-MT2-Eu1-01) And Support Bracket/Plate (BrKT-TC51-EnET1-02).In Stock$192.40
Top Power Device Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra 23844-00-00R Power DevicePower Device, Zebra, AC Line Cord, Grounded, 7.5 Feet Or 2.3 Meters, 3-Prong, Associated Countries, Canada, Mexico, United States.In Stock$16.76 -
Zebra PWR-WUA5V12W0US Power DevicePower Device, Zebra, USB Type A Power Supply Adaptor With US Plug, Used With USB-C Cable (CBL-TC5X-USBc2A-01) To Charge Device.In Stock$39.29 -
Zebra PWR-WUA5V12W0EU Power DevicePower Device, Zebra, USB Type A Power Supply Adaptor With Europe Plug, Used With USB-C Cable (CBL-TC5X-USBc2A-01) To Charge Device.Item on backorder — chat for lead time$45.90
Top RAM Mount Mounting Systems Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
RAM Mount RAM-B-166U ProductsUNPKD RAM SUCTION MOUNT TWIST LOCK RAM MOUNT PRODUCTS HAVE A 10-12 WEEK LEAD TIME.In Stock$46.10
Top Scan Handles Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra TRG-TC51-SNP1-01 Scan HandleScan Handles, Zebra, TC5X Snap-On Trigger Handle, Requires TC5X Rugged Boot (Sg-TC51-Boot1-01), Trigger Handle Easily Removed To Access Battery, Compatible With ShareCradle And Charge Cables, This Sku Is Typically Ordered For Spare/Replacement Trigger Handles.Item on backorder — chat for lead time$243.99 -
Zebra KT-TC51-TRG1-01 Scan HandleScan Handles, Zebra, TC51/56 Trigger Handle And Rugged Boot KitIn Stock$485.59 -
Zebra TRG-TC51-SNP1-03 Scan HandleScan Handles, Zebra, TC51 Snap-On Trigger Handle Accessory, Requires TC51 Rugged BootIn Stock$424.19
Top Screen Protector Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra KT-TC51-SCRNP1-01 Carrying and Protective AccessoriesCarrying and Protective Accessories, Zebra, TC5X Tempered Glass Screen Protector (3-Pack), Includes Alcohol Wipes, Cleaning Cloth, And Tools Needed For Screen Protector Installation.In Stock$78.90
Top Spare Parts Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra HD4000-GA1-CS5 Spare PartsSpare Parts, Zebra, Hd4000Ga1Cs5 Hd4000 Spare Cable Sleeves-Pack Of 5 (Non Prescription)Item on backorder — chat for lead time$49.43 -
Zebra HD4000-GA1-FM Spare PartsSpare Parts, Zebra, Hd4000Ga1Fm Zebra Hd4000 Rev B Spare frame And MountItem on backorder — chat for lead time$188.78
Top Stylus Purchased With Zebra KT-TC520K-1PEZU4T-NA
-
Zebra SG-TC7X-STYLUS-03 StylusStylus, Zebra, Set Of Three Styluses (Sg-TC7X-STYLUS1-03) And Three Coiled Tethers (KT-TC7X-Tethr1-03).In Stock$74.93
Frequently Asked Questions
What are the key differences between the Zebra TC52 and the previous TC51 model?
The TC52 builds on the successful TC51 with a new platform and enhanced capabilities, including the Qualcomm Snapdragon 660 octa-core processor, upgraded Android 10 (with support for Android 11/R), and new Mobility DNA applications for superior WiFi performance and device management. The TC52 also features improved battery technology with PowerPrecision+ delivering 14 hours of power, plus new capabilities like Visible Light Communication (VLC) support through a 5 MP front-facing camera and enhanced 2x2 MU-MIMO WiFi technology. We offer both models, and our team can help you determine which best fits your enterprise needs.
Is the Zebra TC52 rugged enough for warehouse and logistics environments?
Yes, the TC52 is engineered for enterprise durability with an IP68 and IP65 rating, meaning it can withstand water submersion, dust, and harsh conditions common in warehouses and logistics operations. The unibody design provides extra impact protection, and both the Corning Gorilla Glass touchpanel and imager window offer maximum scratch-resistance and shatter-proofing for the most vulnerable components. You can confidently drop it on concrete or use it in rain, snow, or dusty areas while maintaining reliable operation—contact us today to discuss deployment options for your warehouse environment.
What scanning capabilities does the TC52 offer for barcode capture?
The TC52 features advanced PRZM Intelligent Imaging technology that delivers lightning-fast capture of printed and electronic 1D and 2D barcodes, including Digimarc, regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes from varying distances with omnidirectional scanning for true point-and-shoot performance—no alignment needed. Additionally, the pre-installed SimulScan application (part of Mobility DNA) enables workers to capture multiple barcodes on a single label or data from forms like checkboxes, text fields, and signatures with a single button press. Visit barcodesinc.com to explore our complete scanning solutions and accessories available with the TC52.
How long does the TC52 battery last on a single charge?
The TC52 is equipped with a PowerPrecision+ high-capacity Li-Ion battery (4150 mAh/15.98Wh) that delivers an impressive 14 hours of power—enough for the longest shift without interruption. The device supports Warm Swap mode, allowing workers to swap batteries quickly without turning off the device or closing active apps, and fast USB charging (up to 2.4A) ensures batteries are fully charged and ready in record time. We also offer the PowerPrecision Console, a free PC-based tool that helps you identify and remove aging batteries before they impact workforce productivity.
What connectivity options are available on the TC52?
The TC52 offers comprehensive connectivity with Wi-Fi 802.11a/b/g/n/ac/d/h/i/r/k/v/w (certified, IPv4/IPv6 compatible, and 2x2 MU-MIMO support), Bluetooth 5.0 BLE for twice the speed and four times the range with reduced power consumption, USB 2.0 High Speed (Host and Client), NFC, and optional cellular connectivity on the TC57 model with support for carrier aggregation and public safety networks like AT&T FirstNet and Verizon. The TC52 also supports rich locationing technologies including Visible Light Communication (VLC), Bluetooth 5.0 BLE, and WiFi, plus Zebra's SmartLens and MotionWorks solutions. Contact us today to discuss which connectivity features best match your logistics and warehouse operations.
What management and support tools are available for the TC52?
We offer several powerful Mobility DNA tools included free with the TC52: WorryFree WiFi for dependable WiFi connectivity and diagnostics, PowerPrecision Console for battery health monitoring, and StageNow's Restricted Mode for easy control over Google Mobile Services. With an optional Zebra OneCare support contract, you gain access to LifeGuard Analytics for end-to-end update management and optional Visibility Services (Asset Visibility Service and Operational Visibility Services) for comprehensive device management and uptime optimization. Contact us today to learn about support packages and management solutions that fit your enterprise requirements.
