Full specifications (PDF)
Connectivity Technology:
Wired/Wireless
Zebra KC50A22-G0B1C0-NA POS Touch Terminal
Part Number:
KC50A22-G0B1C0-NA
Model:
KC50

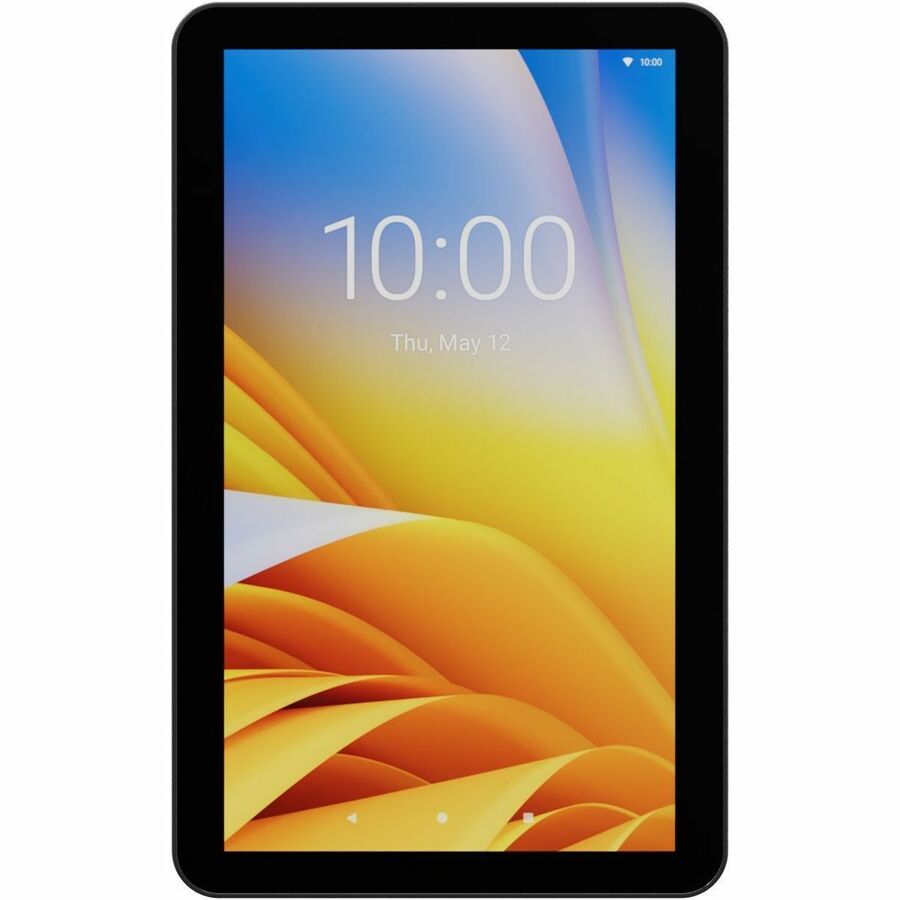

Zebra KC50 POS Touch Terminal Model Overview
The KC50 Android Kiosk Computer by Zebra is expertly crafted to balance an inviting consumer design with rugged functionality for business applications. Perfect for various industries such as retail, healthcare, and hospitality, it provides flexible mounting options and can operate in both portrait and landscape modes. The adaptable setup allows incorporation of multiple peripherals like barcode scanners and payment terminals, ensuring a seamless self-service experience. With its advanced Android platform and extensive connectivity features, the KC50 promises not only ease of use for customers but also secure and straightforward management for businesses.
Key Features
- Versatile use: Supports self-service, assisted checkout, and information display.
- Flexible design: Offers portrait or landscape orientation with modular peripherals.
- Accessibility compliant: Designed to meet ADA and EAA standards.
- Integrated support: Enables conversational interactions through a digital assistant.
- Robust connectivity: Equipped with Wi-Fi 6E for fast, reliable wireless performance.
Specifications
- Dimensions:
- 15 in: 15.17 in L x 9.43 in W x 1.51 in H
- 22 in: 20.35 in L x 12.56 in W x 1.70 in H
- Weight:
- 15 in: 5.7 lbs (2.6kg)
- 22 in: 11.6 lbs (5.3kg)
- Display:
- 15 in and 22 in Full HD, optically bonded touch panel.
- 300 NITS brightness with anti-smudge coating.
- Processor: Qualcomm® 5430 Octa Core chipset at 2.1 GHz.
- Operating System: Android, upgradeable to Android 16.
- Memory: Up to 8 GB RAM and 128 GB UFS Flash.
- Networking: Wi-Fi 6E, Ethernet, and Bluetooth 5.3 capabilities.
- Mounting: VESA 100/75 compatible with optional stands and accessories.
- Durability: IP65 sealing, ball-drop tested, and dust-proof design.
- Warranty: One-year warranty against defects.
Zebra KC50A22-G0B1C0-NA POS Touch Terminal Overview
Designed for consumers, built for business, with the ultimate in flexibility
The KC50 Android Kiosk Computer is the heart of the versatile Zebra Kiosk System - a comprehensive, flexible and modular solution created to meet a wide variety of self-service, assisted checkout and display needs across industries, from retail and hospitality to healthcare, manufacturing, travel, government and more. Customers are instantly comfortable and ready to interact with the modern and elegant design. The KC50 is designed for consumers on the outside and built for business on the inside, based on the same proven Zebra enterprise Android platform at work in millions of Zebra's tablet, handheld and wearable mobile computers all around the world. The KC50 can be placed in portrait or landscape mode and mounted on a wall, floor, counter or desk. This modular solution allows you to add whatever your kiosk requires - a barcode scanner, printer, light bar, payment terminal, TD50 companion touch display and more. And support for a conversational digital assistant gives you more ways to interact with your customers
Rapid consumer adoption with alluring and intuitive consumer design
Inviting consumer design
The modern KC50 was created with the customer in mind. The eye-catching design invites your customers to interact. And the bright screen is easy to see in any environment.
Accessibility for all
The flexible mounting system makes it easy to create kiosks that are accessible to all, helping your business comply with the American Disabilities Act (ADA) in the United States, the European Accessibility Act (EAA), the Accessible Canada Act (ACA) and other international organizations.
Technical Information
Processor & Chipset
Processor Manufacturer:
Qualcomm
Processor Type:
Octa-core (8 Core)
Processor Speed:
2.10 GHz
Memory
Standard Memory:
8 GB
Flash Memory:
128 GB
Display & Graphics
Screen Size:
22"
Screen Mode:
Full HD
Display Color:
Color
Touchscreen:
Yes
Network & Communication
Ethernet Technology:
- Ethernet
- Gigabit Ethernet
- Fast Ethernet
Wireless LAN:
Yes
Software
Operating System:
Android
Physical Characteristics
Height:
1.7"
Width:
12.6"
Length:
20.4"
Weight (Approximate):
11.60 lb
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC:
43211505
Recommended Accessories
Category
- Lighting (1)
- Mounting Hardware and Stands (2)
- Power Device (1)
Recommended Accessories for Model: Zebra KC50A22-G0B1C0-NA POS Touch Terminal
Top Lighting Purchased With Zebra KC50A22-G0B1C0-NA
-
$89.51
Top Mounting Hardware and Stands Purchased With Zebra KC50A22-G0B1C0-NA
-
Zebra 3PTY-SC-2000-CF1-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Kiosk Stand, KC50 Compatible, Single Display Mount with Countertop Height BaseItem on backorder — chat for lead time$655.56 -
Zebra 3PTY-SC-2000-PB1-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra KC50, Kiosk Stand, KC50 compatible, Single Display mount with pedestal base. Riser or printer box sold separately required for full height.In Stock$1,602.93
Top Power Device Purchased With Zebra KC50A22-G0B1C0-NA
-
$89.76
Frequently Asked Questions
What are the key features of the Zebra KC50A22 kiosk computer?
The Zebra KC50A22 is a 22-inch Android kiosk computer featuring Wi-Fi 6E connectivity, a rugged ball-drop tested display with anti-smudge coating, and dual noise-canceling microphones for conversational digital assistant integration. It supports flexible mounting in portrait or landscape orientation, includes Z-Flex connectors on all four sides for peripheral attachment, and offers Power-over-Ethernet (PoE) support to simplify deployment without requiring additional power outlets.
Can the KC50 kiosk integrate with barcode scanners and payment terminals?
Yes, the KC50 supports multiple scanning and payment options through its universal Z-Flex connectors and USB connections. You can add a removable Zebra SE4720 scanner, pair with any Zebra Bluetooth or USB handheld scanner, and integrate leading third-party payment terminals via dedicated USB connections. Future support for Zebra PayTM will provide comprehensive card-based payment solutions, and the kiosk also supports Apple VAS and Google Smart Tap for contactless digital wallet transactions.
What industries and use cases is the KC50 designed for?
The KC50 is built for diverse industries including retail (self-checkout, product configuration, price checks), hospitality (food ordering, hotel check-in), healthcare (patient check-in, appointment requests), airports (self check-in, baggage tags), parcel management, and manufacturing. Its modular design and flexible mounting options make it suitable for self-service, assisted checkout, and display applications across these verticals.
How durable is the KC50 display for public-facing environments?
The KC50 display is engineered for high-traffic public spaces with ball-drop testing to withstand sudden impacts, dust-proof construction, and resistance to sprayed or splashed liquids from any angle. The anti-smudge, fingerprint-resistant coating helps maintain visibility and reduces maintenance needs, making it ideal for demanding retail and hospitality environments.
What connectivity and management capabilities does the KC50 offer?
The KC50 features Wi-Fi 6E for nearly double the speed of Wi-Fi 5 and operates on the interference-free 6 GHz band for more robust connections. It includes Mobility Extensions (Mx) with over 100 enterprise features, OEM Config for centralized device management through Enterprise Mobility Management systems, and support for DataWedge barcode integration without coding. Additional tools like StageNow enable rapid deployment of multiple kiosks through barcode or NFC scanning.
What is the lifecycle and support duration for the KC50?
The Zebra KC50 will be available for purchase for four years, with service and support extended for an additional four years, providing up to eight total years of lifecycle coverage. This extended availability eliminates the cost and complexity of managing mixed model deployments and delivers exceptional return on investment for enterprise kiosk deployments. Contact us today to learn more about support options available from us.
The Zebra KC50A22-G0B1C0-NA POS Touch Terminal is also known as
ZEB-KC50A22G0B1C0NA
or KC50A22G0B1C0NA.
