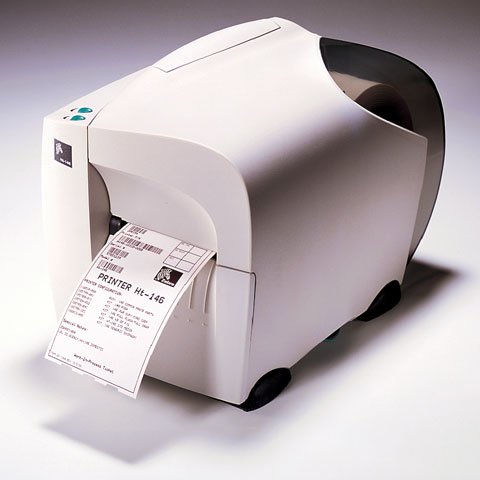

Zebra H146-10319-0001 Barcode Label Printer

The Zebra H146-10319-0001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra HT-146 - Thermal transfer & direct thermal, 203 dpi, 6 ips, 4" print width, parallel, serial & USB interfaces, 256KB RAM, 512KB flash. Includes U.S. power supply & dispenser with liner take-up. Order cables separately. See accessories.
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 11" maximum label length for your convenience and feasible usability
  • Dispenser feature for better reliance and usability
  • Comes with 256 KB standard memory to ensure maximum efficiency with great quality printing results
Read More
Discontinued Need Assistance?
Add to Quote
Zebra HT-146 Barcode Label Printer Model Overview
High-end desktop printing with feature-rich performance. Take everything you know about Zebra desktop printers, and then marvel at the expanded print volume, capacity and performance of the four-inch HT-146 thermal transfer barcode label printer. This unique printer delivers all the popular features found in the desktop printer market, while moving desktop design to new heights of feature-rich functionality and application flexibility.
Zebra H146-10319-0001 Barcode Label Printer Overview

High-end desktop printing with feature-rich performance. Zebra's Ht-146 four-inch Label printer offers the space-saving benefits of a desktop printer, then raises the bar with superior performance and productivity. Dual processors, together with high-speed Flash memory, deliver fast processing of different label formats and print speeds up to 6 inches per second-resulting in terrific throughput. What's more, the Ht-146 accommodates a full 8-inch media roll within its compact frame, so you spend more time printing and less time changing media.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
6 in/s
Maximum Print Width:
4.09"
Features:
Dispenser
Memory
Standard Memory:
256 KB
Flash Memory:
512 KB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
Media Types & Handling
Maximum Roll Diameter:
8"
Maximum Label Width:
4.25"
Maximum Label Length:
11"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
8.8"
Width:
9.5"
Depth:
14.5"
Miscellaneous
Certifications & Standards:
  • UL-CUL 1950
  • FCC Class B
  • VCCI Class B
  • C-TICK
  • EN 500082-1
  • EN 55022 Class B/CISPR 24
  • EN 55024/CISPR 24
  • EN 60950/IEC 950
  • EN 61000-3-2
  • EN 61000-3-3
  • CE
  • IRAM
  • CB
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
