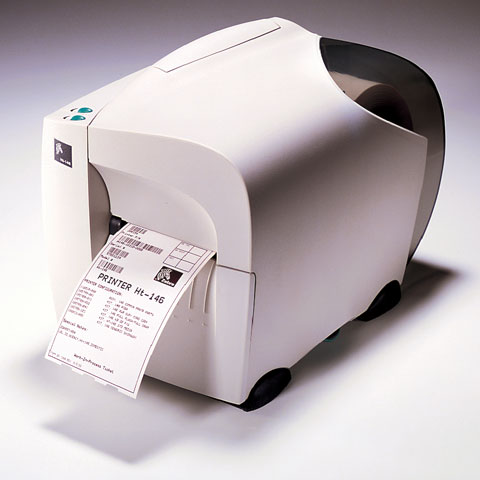

Zebra H146-10312-0001 Barcode Label Printer

The Zebra H146-10312-0001 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra HT-146 - Thermal transfer & direct thermal, 203 dpi, 6 ips, 4" print width, parallel, serial & USB interfaces, 256KB RAM, 512KB flash. Includes U.S. power supply & cutter. Order cables separately. See accessories.

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Printer Options

Cutter

Max Print Width

4.25 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
203 maximum print resolution (dpi) for your convenience and easy usage
Enjoy the optimal performance in today's on-demand labeling applications
4.25" maximum label width for dependable, desired results
11" maximum label length to easily accommodate your needs with added productivity
Supports label media type for dependable, efficient results with maximum productivity
Features multi-functional knives for conveniently cutting the paper to provide you with the desired shape
Comes with 256 KB standard memory for timely printing with added reliability
8" x Roll Paper media size for dependable, efficient results with maximum productivity

Need a different version? See all Zebra HT-146 Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra H146-10312-0001 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra HT-146 Barcode Label Printer Model Overview

High-end desktop printing with feature-rich performance. Take everything you know about Zebra desktop printers, and then marvel at the expanded print volume, capacity and performance of the four-inch HT-146 thermal transfer barcode label printer. This unique printer delivers all the popular features found in the desktop printer market, while moving desktop design to new heights of feature-rich functionality and application flexibility.

Zebra H146-10312-0001 Barcode Label Printer Overview

High-end desktop printing with feature-rich performance. Zebra's Ht-146 four-inch Label printer offers the space-saving benefits of a desktop printer, then raises the bar with superior performance and productivity. Dual processors, together with high-speed Flash memory, deliver fast processing of different label formats and print speeds up to 6 inches per second-resulting in terrific throughput. What's more, the Ht-146 accommodates a full 8-inch media roll within its compact frame, so you spend more time printing and less time changing media.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Maximum Mono Print Speed:

6 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Code 39
Code 128-A
Code 128-B
Code 128-C
UCC/EAN 128
Code 93
Codabar
Interleaved 2 of 5
UPC-A
UPC-E
UPC-A with 2 and 5 Add-on
Plessey
POSTNET
German Post Code
Japan Postal
PDF-417
Macro PDF-417
QR Code
Maxi Code

Memory

Standard Memory:

256 KB

Flash Memory:

512 KB

Cutter

Cutter:

Yes

Media Types & Handling

Media Type:

Label
Notched
Black Mark
Fanfold
Tag
Continuous Form

Media Size:

8" x Roll Paper

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

11"

Label Core Size:

Ribbon Core Size:

Fonts & Emulation

Language Emulation:

EPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

8.8"

Width:

9.5"

Depth:

14.5"

Miscellaneous

Additional Information:

Graphic Features:

Line and box drawing
PCX graphic storage

Platform Supported:

Certifications & Standards:

UL-CUL 1950
FCC Class B
VCCI Class B
C-TICK
EN 500082-1
EN 55022 Class B/CISPR 24
EN 55024/CISPR 24
EN 60950/IEC 950
EN 61000-3-2
EN 61000-3-3
CE
IRAM
CB

Item Numbers

UNSPSC: 43212108
