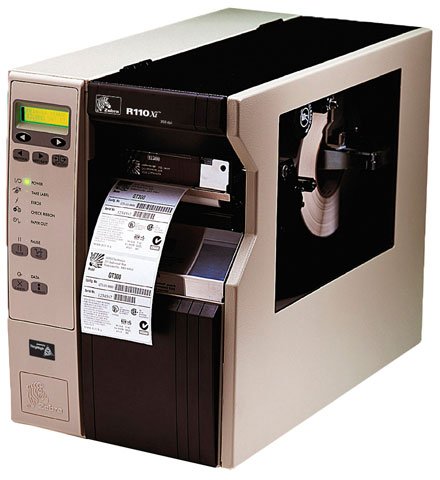

Zebra H12-7A1-00000 RFID Printer

Part Number: H12-7A1-00000
Model: R110xi

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi

Product Description:

  RFID Printer, 200 dpi, High Frequency, PrintServer 10/100, Serial and USB Interfaces

Zebra R110xi RFID Printer Model Overview

Built on the solid, tested Xi III Plus platform, the Zebra R110xi printer/encoder offers an unprecedented level of on-demand printing flexibility in tag placement and label size (4-inch) as well as unique features such as XML encoding for a seamless integration into enterprise systems, automatic inlay position calibration, program positioning, multiple power levels for precisely encoding small labels, and statistics tracking, which allows customers to track the number of good and unusable labels. For companies looking to comply with RFID mandates, the R110xi provides a robust and flexible solution with key advantages offering investment protection, efficiency and productivity.
Zebra H12-7A1-00000 RFID Printer Overview

Built on the solid, tested XiIIIPlus platform, the R110Xi HF offers encoding at 13.56 MHz for powerful but short-range readability. Offering an unprecedented level of on-demand printing flexibility in tag placement, the R110Xi HF also has unique features such as: XML for seamless integration into enterprise systems; automatic calibration; flexible inlay positioning; multiple power levels; statistics tracking; easier RFID programming; and more detailed information via the front panel display. The R110Xi HF supports currently available protocols, including Ultralight and ISO15693. The R110Xi HF printer/encoder is firmware upgradeable to support new protocols, so users can seamlessly upgrade to future RFID protocols as needed.

Technical Information
Recommended Use:
RFID Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
10 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-8
  • EAN-13
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • UCC Case Codes
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Micro PDF
  • Aztec Code
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
120 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
4.50"
Maximum Label Length:
39"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
15.5"
Width:
10.4"
Depth:
19.5"
Miscellaneous
Package Contents:
  • R110Xi HF Network Thermal Label Printer
  • Power Cord (North American Edition)
  • Driver and Software CD
  • RXi User's Guide
Cables Included:
AC
Additional Information:
  • Label Tracking
  • Clear Media Side Door
  • RFID antenna port selection
  • 300 unique darkness settings
  • Multilingual backlit LCD display
  • Maximum read or write flexibility for small label printing
  • Place transponders virtually anywhere within a smart label
  • Enhanced Alert notification - monitors print head condition
  • Multi level Element Energy Equalizer (E3) for superior print quality
  • CompactFlash (up to 1 GB memory) for added label format/font storage
  • Automatic program position selection for optimal transponder placement
  • Fully integrated HF RFID Reader or Encoder supporting Mifare Ultralight, ISO15693 and ISO14443A
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
