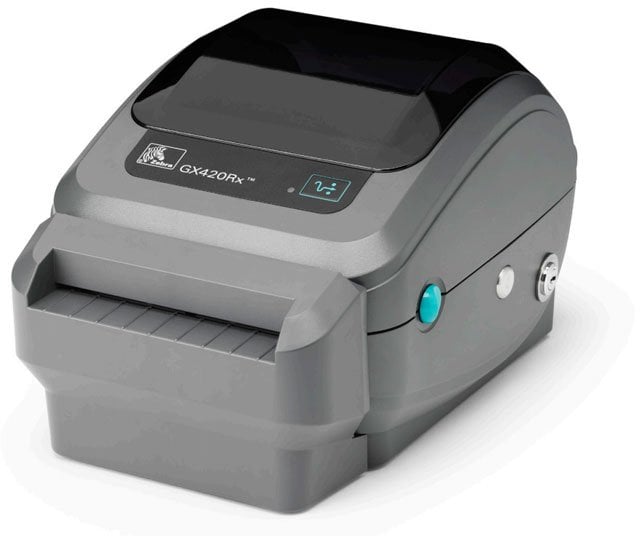

Zebra GX420Rx – Barcode Label Printer – 203 dpi

Part Number: GX4S-202510-000
Model: GX420Rx
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Print Resolution
203 dpi

Product Description:

  Direct thermal printer, 203 dpi, EPL2, ZPL II, USB/Serial/Parallel Interfaces, Secure Media with Lock

Zebra GX420 Barcode Label Printer Model Overview

  • A flexible option for creating shipping, inventory or product labels
  • Prints both direct thermal and thermal transfer labels
  • 203 dpi print resolution
  • Prints speeds up to 6"/second
  • Serial, Parallel, USB, & Ethernet interface options
  • Prints labels up to 4" wide
The Zebra GX420 Series features both Direct Thermal only (GX420d) and Direct Thermal/Thermal Transfer (GX420t) printing. Both printers feature 6"/sec print speed and 203 or 305 dpi resolution to produce crisp, long-lasting images.
Zebra GX4S-202510-000 Barcode Label Printer Overview
Making a difference to your desktop

Zebra's G-Series compact desktop printers deliver best-in-class speed and performance for print widths up to 104mm (4"). From the basic GK™ model to the feature-rich GX™ model, the G-Series printers offer a reliable, durable and flexible desktop solution for any printing application and budget.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • MSI
  • MSI-3
  • LOGMARS
  • Standard 2 of 5
  • POSTNET
  • RSS
  • Aztec Code
  • QR Code
  • Data Matrix
  • Maxi Code
  • Codablock
  • Code 49
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Features:
Secure Media Locking Mechanism
Print Technology:
Direct Thermal
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Direct Thermal Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Wristband
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
6"
Width:
6.8"
Depth:
8.3"
Weight (Approximate):
3 lb
Miscellaneous
Package Contents:
  • GX420s Direct Thermal Desktop Printer
  • USB Cable
  • User and Programming Manuals
  • Software and Drivers CD
Cables Included:
USB
Platform Supported:
PC
Certifications & Standards:
  • PFC
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
