Zebra GX430 – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer – Dispenser, Peeler
Part Number:
GX43-102511-000
Request a Bulk Pricing Quote
Chat with a Product Expert

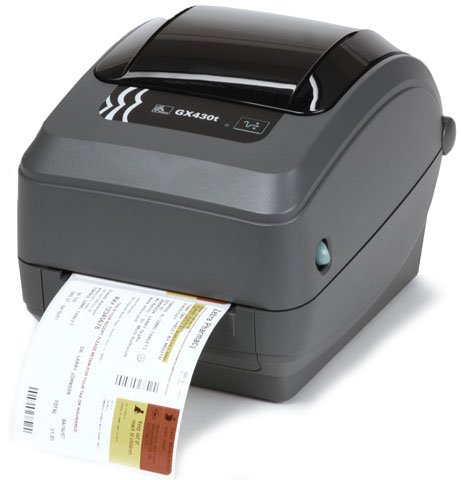

Zebra GX430t Barcode Label Printer Model Overview
The best-in-class Zebra GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the Zebra GX430t desktop printer is a smart investment that's always a perfect fit.
Zebra GX43-102511-000 Barcode Label Printer Overview
The best-in-class enhanced GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
Aztec Code Codablock Code 49 Data Matrix QR Code Maxi Code Micro PDF-417 Macro PDF-417 RSS GS1 DataBar Codabar Code 11 Code 128 Code 128-A Code 128-B Code 128-C Code 39 Code 93 EAN-8 EAN-14 EAN-13 EAN-8 With 2 or 5 Digit Extension EAN-13 With 2 or 5 Digit Extension German Post Code Industrial 2 of 5 Interleaved 2 of 5 POSTNET Japan Postal LOGMARS MSI MSI-3 Standard 2 of 5 UCC/EAN 128 UPC-A UPC-E UPC 2 or 5 Digit Extension EAN With 2 or 5 Digit Extension UPC-A with 2 or 5 Digit Extension UPC-E with 2 or 5 Digit Extension
Application/Usage:
Desktop
Print Technology:
Thermal Transfer
Memory
Interfaces/Ports
Media Types & Handling
Media Type:
Black Bar Black Mark Continuous Label Continuous Receipt Die-cut Label Fanfold Gap Notched Perforated Label Receipt Tag Tag Stock Direct Thermal Label Wristband
Media Sensor:
Transmissive Media Sensor Reflective Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Fonts & Emulation
Power Description
Physical Characteristics
Weight (Approximate):
4.60 lb
Miscellaneous
Package Contents:
GX430t Label Printer USA Power Cord English/European/Latin America/Asian User Documentation 6 ft USB Cable
Certifications & Standards:
FCC Part 15 Subpart 15 VCCI C-Tick EN55022 Class-B EN6100-3-2 EN6100-3-3 EN55024 CCC CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4 TUV NRTL IRAM NOM AAMI
Warranty
Item Numbers
GTIN:
0653729039037, 0783555031490, 0807027560766
UPC:
653729039037, 783555031490, 807027560766
EAN:
0653729039037, 0783555031490, 0807027560766
UNSPSC:
43212108
