Zebra GX43-102420-000 Barcode Label Printer

The Zebra GX43-102420-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra GX430t - Thermal transfer printing, 305 dpi, 4" print width, Serial, USB, Parallel interfaces. Includes EU/UK power cord and 6' USB cable.
Print Resolution
300 dpi
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
Read More
Discontinued Need Assistance?
Add to Quote

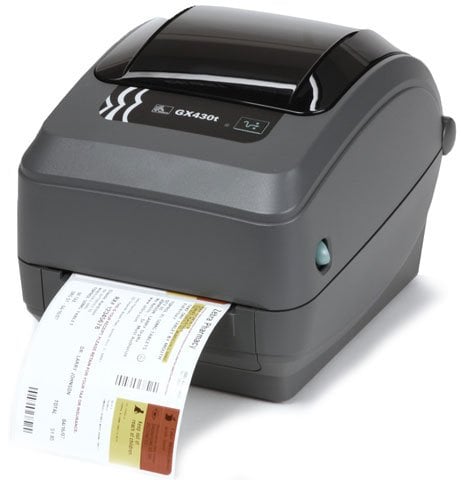

Zebra GX430t Barcode Label Printer Model Overview
The best-in-class Zebra GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the Zebra GX430t desktop printer is a smart investment that's always a perfect fit.
Zebra GX43-102420-000 Barcode Label Printer Overview

Zebra's G-Seriesâ"¢ GXâ"¢ and ZD500â"¢ performance desktop printers pair the fastest print speeds with the most complete feature set of our desktop printer lineup. Innovative label, receipt and tag-handling capabilities enable the flexibility your customers need. Offering top print quality and a variety of connectivity options, the GX420â"¢, GX430â"¢ and ZD500 printers support the widest range of applications and can be integrated into almost any environment so that your customers can improve efficiency and profitability, save time and reduce operator training. Ideal for small-label printing of text and graphics, Zebra's high-resolution GX430T delivers outstanding quality and fast printing speeds.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution:
300 dpi
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • EAN-14
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • LOGMARS
  • MSI
  • MSI-3
  • Standard 2 of 5
  • POSTNET
  • Plessey
  • UPC-A
  • UPC-E
  • UCC/EAN 128
  • RSS
  • EAN With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • QR Code
  • Maxi Code
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Connectivity Technology:
Wired
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Direct Thermal Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Wristband
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • XML
  • ZPL
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature (T-T):
39.9°F (4.4°C) - 105.8°F (41°C)
Storage Temperature (T-T):
-40°F (-40°C) - 140°F (60°C)
Operating Relative Humidity (H-H):
10% - 90%
Storage Relative Humidity (H-H):
5% - 95%
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.60 lb
Miscellaneous
Cables Included:
  • USB
  • AC
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 3609740019630, 5711045575501
EAN: 3609740019630, 5711045575501
UNSPSC: 43212108
