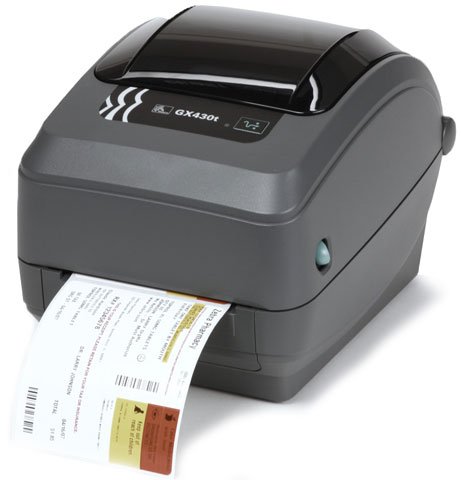

Zebra GX430t – Barcode Label Printer – 300 dpi – Thermal Transfer

Part Number: GX43-102411-150
Model: GX430t
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Desktop
Printing Technology
Thermal Transfer
Print Resolution
300 dpi

Product Description:

  Thermal transfer printing, 300 dpi, USB/RS-232/Ethernet interfaces, Expanded Memory, Real Time Clock, Dispenser, Peeler, Adjustable black line sensor. Includes 6'' USB cable and US power cord.

Zebra GX430t Barcode Label Printer Model Overview

The best-in-class Zebra GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the Zebra GX430t desktop printer is a smart investment that's always a perfect fit.
Zebra GX43-102411-150 Barcode Label Printer Overview

Zebra's G-Series compact desktop printers for print widths up to 4 inches deliver best-in-class speed and performance. From the basic GKTMmodel to the feature-rich GXTMmodel, the G-Series printers are reliable, durable, and flexible to fit almost any low- to mid-volume printing application and budget.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • LOGMARS
  • MSI
  • MSI-3
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC/EAN 128
  • UPC-A
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Macro PDF-417
  • GS1 DataBar
  • GS1 DataBar Composite
Peel Facility:
Yes
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
Odometer
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
  • Fanfold
  • Tag Stock
  • Wristband
Media Size:
Custom Size
Media Sensor:
  • Reflective Media Sensor
  • Adjustable Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL2
  • ZPL II
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.60 lb
Miscellaneous
Package Contents:
  • GX430t Label Printer
  • USA Power Cord
  • English/European/Latin America/Asian User Documentation
  • 6ft. USB Cable included
Cables Included:
  • USB
  • AC
Platform Supported:
PC
Certifications & Standards:
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
  • Unicode
  • PFC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0880959442003
UPC: 880959442003
EAN: 0880959442003
UNSPSC: 43212108
