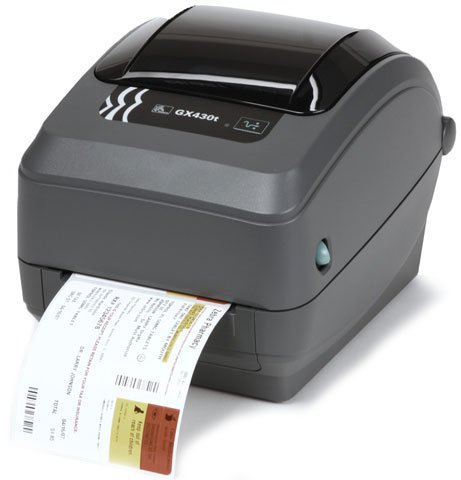

Zebra GX430t – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: GX43-101710-100
Model: GX430t
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
300 dpi, 305 dpi

Product Description:

  Direct Thermal-Thermal Transfer Printer (300 dpi, EPL2, ZPL II, Serial, USB and 802.11b-g Interfaces, LCD, Power Cord-US and Black Line Sensor)
Explore all Zebra GX430t Barcode Label Printers
Add to Quote
Zebra GX43-101710-100 Barcode Label Printer
Zebra GX43-101710-100 Barcode Label Printer
Zebra GX43-101710-100 Barcode Label Printer Zebra GX43-101710-100 Barcode Label Printer
Full specifications (PDF)

Zebra GX430t Barcode Label Printer Model Overview

The best-in-class Zebra GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the Zebra GX430t desktop printer is a smart investment that's always a perfect fit.
Zebra GX43-101710-100 Barcode Label Printer Overview

The best in class GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low to medium volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. GX430t desktop printer is a smart investment that's always a perfect fit.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • German Post Code
  • Interleaved 2 of 5
  • Japan Postal
  • LOGMARS
  • MSI
  • MSI-3
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC/EAN 128
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Macro PDF-417
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Form
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Paper
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL II
  • ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Miscellaneous
Package Contents:
  • GX430t Network Thermal Label Printer
  • USA Power Cord
Cables Included:
AC
Additional Information:
  • No Real Time Clock
  • 32 bit RISC processor
  • Adjustable Black line Sensor
  • Quick and easy ribbon loading system
  • Dual wall reinforced plastic construction
  • OpenACCESS design for easy media loading
  • User Documentation : English/European/Latin America/Asian
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
