Zebra GX43-100412-000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

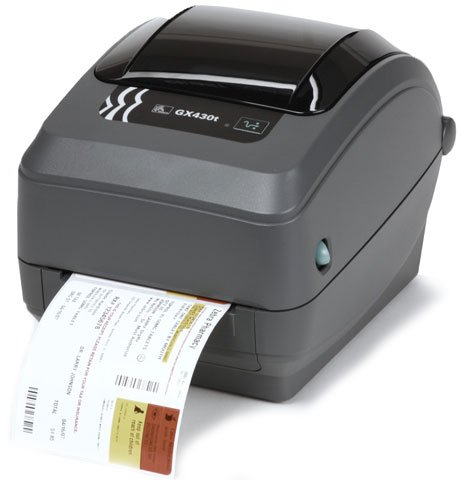

Zebra GX430t - Thermal transfer Printer (300 dpi, EPL2, ZPL II, Serial, USB and Ethernet Interfaces, Power cord-US, Cutter, Standard flash and No Real-time clock)
Wide range of features and options

The Zebra GX430t Thermal transfer desktop printer includes a 300 dpi printhead to ensure high-quality, crisp, clear printing of 2D barcodes, fine text and complex graphics - ideal for high-density data on small labels. The GX430t has the widest range of features and the easiest ribbon-loading system of any desktop printer on the market. It prints up to 4 ips.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Cutter
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-13
    • EAN-14
    • EAN-8
    • EAN-8 With 2 or 5 Digit Extension
    • EAN-13 With 2 or 5 Digit Extension
    • German Post Code
    • Interleaved 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UCC/EAN 128
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: G Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX430t
  • Product Name: GX430t Network Thermal Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Form
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Gap
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Package Contents:
    • GX430t Network Thermal Label Printer
    • Power Cord (USA)
    • GX430t Network Thermal Label Printer
    • Power Cord (USA)
  • Additional Information:
    • No Real Time Clock
    • 32 bit RISC processor
    • Media Option : Cutter Liner and Tag
    • Quick and easy ribbon loading system
    • Dual wall reinforced plastic construction
    • OpenACCESS design for easy media loading
    • User Documentation : English/European/Latin America/Asian

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Fonts & Emulation

  • Language Emulation:
    • EPL II
    • ZPL II

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model GX430t
Print Speed 4
Max Label Width 4.25
Print Method Thermal Transfer
Interface Options Serial, USB, Ethernet
Printer Type Desktop
Print Resolution 305 dpi
Label Core 1 inch
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Printer Mobility Not Mobile
