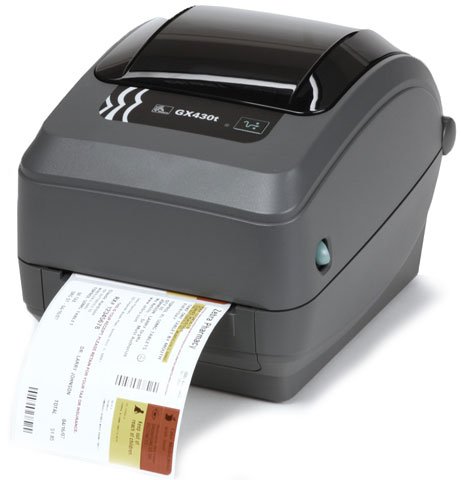

Zebra GX43-100310-000 Barcode Label Printer

A newer version of this item is available.
It is replaced by the Zebra GX43-102510-000 Barcode Label Printer.

Zebra GX430t - Direct Thermal and Thermal Transfer printing, 300 dpi, RS-232 serial, Parallel and USB interfaces, 8MB RAM, 4MB Flash, tear bar, EPL 2, ZPL II and US Power Cord

Printer Type

Desktop

Printing Technology

Thermal Transfer

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

300 dpi, 305 dpi

Max Print Width

4.25 inch

Ribbon Core Size

0.5 inch

A better-quality solution to print permanent-use documents
300 maximum print resolution (dpi) offers great dependability with added efficiency
The printer is capable of printing sharp and detailed monochrome documents quickly
Label Print gives dependable results with maximum productivity
4.25" maximum label width for dependable, desired results
39" maximum label length for dependable, desired results
Supports black bar media type for maximum feasibility and better accommodation of your requirements
Comes with 8 MB standard memory for timely printing with added reliability

Need a different version? See all Zebra GX430t Barcode Label Printers

Discontinued See Replacement

Add to Quote

Zebra GX43-100310-000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra GX430t Barcode Label Printer Model Overview

The best-in-class Zebra GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. The GX430t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the Zebra GX430t desktop printer is a smart investment that's always a perfect fit.

Zebra GX43-100310-000 Barcode Label Printer Overview

The best-in-class GX430t thermal transfer printer offers the widest range of features, 4 inches per second print speed and 300 dpi resolution to meet all your low- to medium-volume printing requirements. The GX430t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. GX430t desktop printer is a smart investment that?s always a perfect fit.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 128
Code 128-A
Code 128-B
Code 128-C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 With 2 or 5 Digit Extension
EAN-13 With 2 or 5 Digit Extension
German Post Code
Interleaved 2 of 5
Japan Postal
LOGMARS
MSI
MSI-3
Plessey
POSTNET
RSS
Standard 2 of 5
UCC/EAN 128
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A
UPC-E
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
Aztec Code
Codablock
Code 49
Data Matrix
Macro PDF-417
Maxi Code
Micro PDF-417
PDF-417
QR Code

Memory

Standard Memory:

8 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Black Bar
Black Mark
Continuous Form
Continuous Receipt
Die-cut Label
Fanfold
Gap
Notched
Perforated Paper
Receipt
Roll Fed
Tag
Tag Stock

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

7.50 mil

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Fonts & Emulation

Language Emulation:

EPL2
ZPL II

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

7.5"

Width:

7.6"

Depth:

10"

Miscellaneous

Package Contents:

GX430t Thermal Label Printer
Power Cord USA

Cables Included:

Additional Information:

No Real Time Clock
32 bit RISC processor
Quick and easy ribbon loading system
OpenACCESS design for easy media loading
Dual-wall reinforced plastic construction
User Documentation: English/European/Latin America/Asian

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Zebra GX43-100310-000 Barcode Label Printer is also known as ZEB-GX43-100310-000 or GX43100310000.
