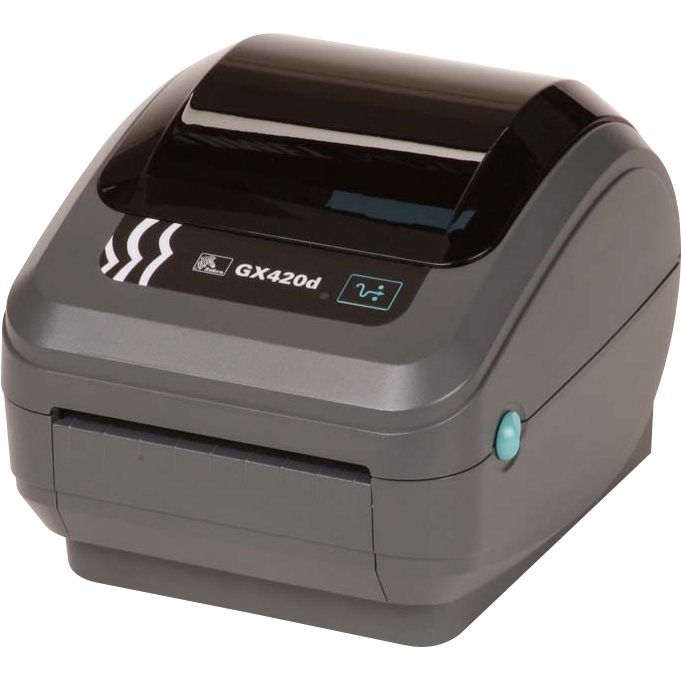

Zebra GX42-202810-000 Barcode Label Printer

Zebra ZD62142-D01L01EZ Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra ZD62142-D01L01EZ Barcode Label Printer.
Zebra GX420d - Direct thermal, 203 dpi, Serial/USB/Bluetooth interfaces. Includes 6' USB cable.
Printer Type
Desktop
Interface Options
Serial (RS-232), USB
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.25" maximum label width for your convenience and feasible usability
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports black bar media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with desktop application/usage provides dependable printing solution with added productivity
  • Comes with 8 MB standard memory to make you productive with the direct thermal printer smooth performance
  • LCD display is brighter with added efficiency, thinner, and feature better refresh rates
Read More

Need a different version? See all Zebra GX420d Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra GX42-202810-000 Barcode Label Printer
Zebra GX42-202810-000 Barcode Label Printer Zebra GX42-202810-000 Barcode Label Printer Zebra GX42-202810-000 Barcode Label Printer
Zebra GX42-202810-000 Barcode Label Printer
Zebra GX42-202810-000 Barcode Label Printer

Full specifications (PDF)
Zebra GX420d Barcode Label Printer Model Overview
The direct thermal Zebra GX420d is extra compact to fit in congested workspaces and produces 203-dpi print resolution at speeds up to 6 inches per second. The GX420d features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel. Increase your media choices and application flexibility with cutter, peeler, and adjustable black line sensor options.
Zebra GX42-202810-000 Barcode Label Printer Overview

The best-in-class enhanced GX420d direct thermal printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420d has a sleek and compact design, boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • MSI
  • MSI-3
  • LOGMARS
  • Standard 2 of 5
  • POSTNET
  • RSS
  • Aztec Code
  • QR Code
  • Data Matrix
  • Maxi Code
  • Codablock
  • Code 49
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Bluetooth:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Direct Thermal Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Wristband
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • EPL2
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6"
Width:
6.8"
Depth:
8.3"
Weight (Approximate):
3.10 lb
Miscellaneous
Package Contents:
  • GX420d Label Printer
  • USA Power Cords
  • English/European/Latin America/Asian User Documentation
Cables Included:
AC
Platform Supported:
PC
Certifications & Standards:
  • PFC
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra GX42-202810-000 Barcode Label Printer is also known as ZEB-GX42-202810-000 or GX42202810000.
