Zebra GX42-202522-000 Barcode Label Printer

The Zebra GX42-202522-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Zebra GX420d - Desktop Printer, Zebra GX420d, Direct Thermal, 203 dpi, 6ips, USB/Serial/Parallel, ZPL2/EPL2 /Cutter/Dispenser, Includes Liner and Tag, Includes 6' USB Cable and EU/UK Power Cord

Printer Type

Desktop

Printing Technology

Direct Thermal

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

203 dpi

Printer Options

Cutter, Dispenser

Max Print Width

4.25 inch

Print methods: Thermal transfer or direct thermal
Programming language: EPL and ZPL are standard
construction: Dual-wall frame
Tool-less printhead and platen replacement
OpenACCESS™ for easy media loading
Quick and easy ribbon loading
Auto-calibration of media
Triple connectivity: USB, parallel, serial

Need a different version? See all Zebra GX420d Barcode Label Printers

Discontinued Need Assistance?

Add to Quote

Zebra GX42-202522-000 Barcode Label Printer

Overview

Full specifications (PDF)

Zebra GX420d Barcode Label Printer Model Overview

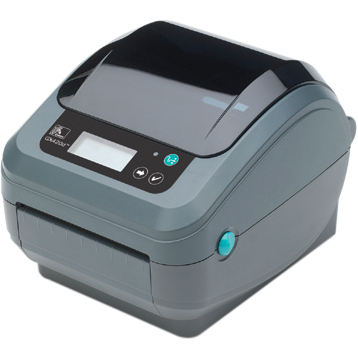

The direct thermal Zebra GX420d is extra compact to fit in congested workspaces and produces 203-dpi print resolution at speeds up to 6 inches per second. The GX420d features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel. Increase your media choices and application flexibility with cutter, peeler, and adjustable black line sensor options.

Zebra GX42-202522-000 Barcode Label Printer Overview

Delivering fast print speed, the GX420t thermal transfer printers are the ideal option for applications that require network manageability and low total cost of ownership.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

6 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Width:

4.09"

Barcode Symbology Supported:

Codabar
Code 11
Code 128
Code 128-A
Code 128-B
Code 128-C
UPC-A
UPC-E
EAN-8
EAN-13
EAN-14
EAN-13 With 2 or 5 Digit Extension
EAN-8 With 2 or 5 Digit Extension
German Post Code
Industrial 2 of 5
Interleaved 2 of 5
Japan Postal
LOGMARS
MSI
MSI-3
POSTNET
Plessey
RSS
Standard 2 of 5
UCC/EAN 128
UPC 2 or 5 Digit Extension
EAN With 2 or 5 Digit Extension
UPC-A with 2 or 5 Digit Extension
UPC-E with 2 or 5 Digit Extension
Aztec Code
Codablock
Code 49
Data Matrix
Macro PDF-417
Maxi Code
Micro PDF-417
PDF-417
QR Code
GS1 DataBar

Application/Usage:

Desktop

Features:

Dual Wall Frame
Compact

Memory

Standard Memory:

8 MB

Memory Technology:

SDRAM

Flash Memory:

4 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Display & Graphics

Display Screen:

Yes

Display Screen Type:

LCD

Cutter

Cutter:

Yes

Media Types & Handling

Media Type:

Black Bar
Black Mark
Continuous Label
Continuous Receipt
Die-cut Label
Fanfold
Gap
Notched
Perforated Label
Roll Fed
Tag
Tag Stock
Direct Thermal Label
Wristband

Media Sensor:

Reflective Media Sensor
Transmissive Media Sensor

Media Thickness:

7.50 mil

Maximum Roll Diameter:

Maximum Label Width:

4.25"

Maximum Label Length:

39"

Label Core Size:

1.50"

Fonts & Emulation

Language Emulation:

EPL
XML
ZPL
EPL2
ZPL II

Power Description

Power Source:

AC Supply

Physical Characteristics

Height:

Width:

6.8"

Depth:

8.3"

Weight (Approximate):

3.10 lb

Miscellaneous

Power Cable Localization:

Cables Included:

Platform Supported:

Item Numbers

GTIN: 0783555109809, 5711045640865

UPC: 783555109809

EAN: 0783555109809, 5711045640865

UNSPSC: 45101512

Q&A

Questions? Get help from a
Printer Expert!

The Zebra GX42-202522-000 Barcode Label Printer is also known as ZEB-GX42202522000 or GX42202522000.
