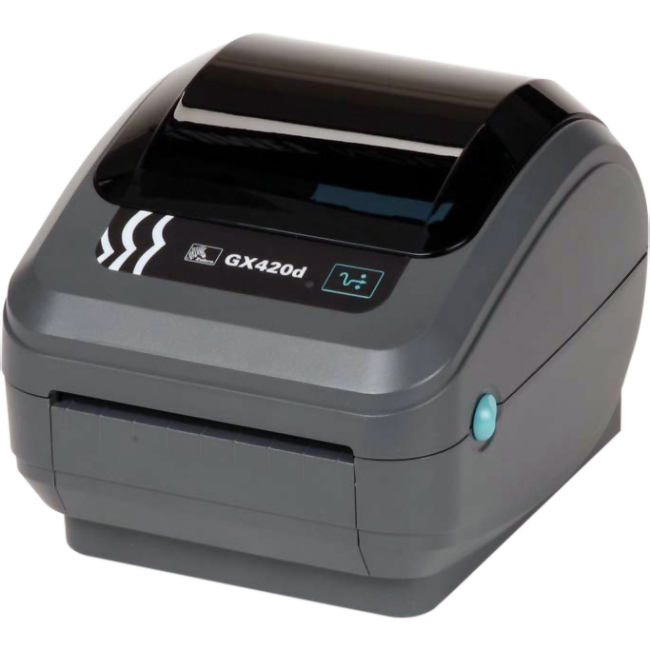

Zebra GX42-202420-000 Barcode Label Printer

The Zebra GX42-202420-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra GX420d - Direct thermal, 203 dpi, Serial/USB/Ethernet interfaces. Includes 6' USB cable and EU/UK power cord.
Print Resolution
203 dpi
  • Direct Thermal Printer provides you with all the features that you need to print quickly and easily
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 4.25" maximum label width for dependable, desired results
  • 39" maximum label length for dependable, desired results
  • Supports black bar media type for dependable, efficient results with maximum productivity
  • Direct Thermal Printer with desktop application/usage provides maximum usability with better reliance
  • Comes with 8 MB standard memory to make you productive with the direct thermal printer smooth performance
Read More

Need a different version? See all Zebra GX420d Barcode Label Printers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Zebra GX42-202420-000 Barcode Label Printer
Zebra GX42-202420-000 Barcode Label Printer Zebra GX42-202420-000 Barcode Label Printer Zebra GX42-202420-000 Barcode Label Printer
Zebra GX42-202420-000 Barcode Label Printer
Zebra GX42-202420-000 Barcode Label Printer

Full specifications (PDF)
Zebra GX420d Barcode Label Printer Model Overview
The direct thermal Zebra GX420d is extra compact to fit in congested workspaces and produces 203-dpi print resolution at speeds up to 6 inches per second. The GX420d features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel. Increase your media choices and application flexibility with cutter, peeler, and adjustable black line sensor options.
Zebra GX42-202420-000 Barcode Label Printer Overview

Delivering fast print speed, the GX420t thermal transfer printers are the ideal option for applications that require network manageability and low total cost of ownership.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • UPC-A
  • UPC-E
  • EAN With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • UPC 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • MSI
  • MSI-3
  • LOGMARS
  • Standard 2 of 5
  • POSTNET
  • RSS
  • Aztec Code
  • QR Code
  • Data Matrix
  • Maxi Code
  • Codablock
  • Code 49
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Connectivity Technology:
Wired
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Direct Thermal Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Wristband
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
  • EPL2
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
39.9°F (4.4°C) - 105.8°F (41°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
6"
Width:
6.8"
Depth:
8.3"
Weight (Approximate):
3.10 lb
Miscellaneous
Power Cable Localization:
  • EU
  • UK
Cables Included:
AC
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 3609740019609, 5054533368408, 5711045246654
EAN: 3609740019609, 5054533368408, 5711045246654
UNSPSC: 45101512
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra GX42-202420-000 Barcode Label Printer is also known as ZEB-GX42-202420-000 or GX42202420000.
