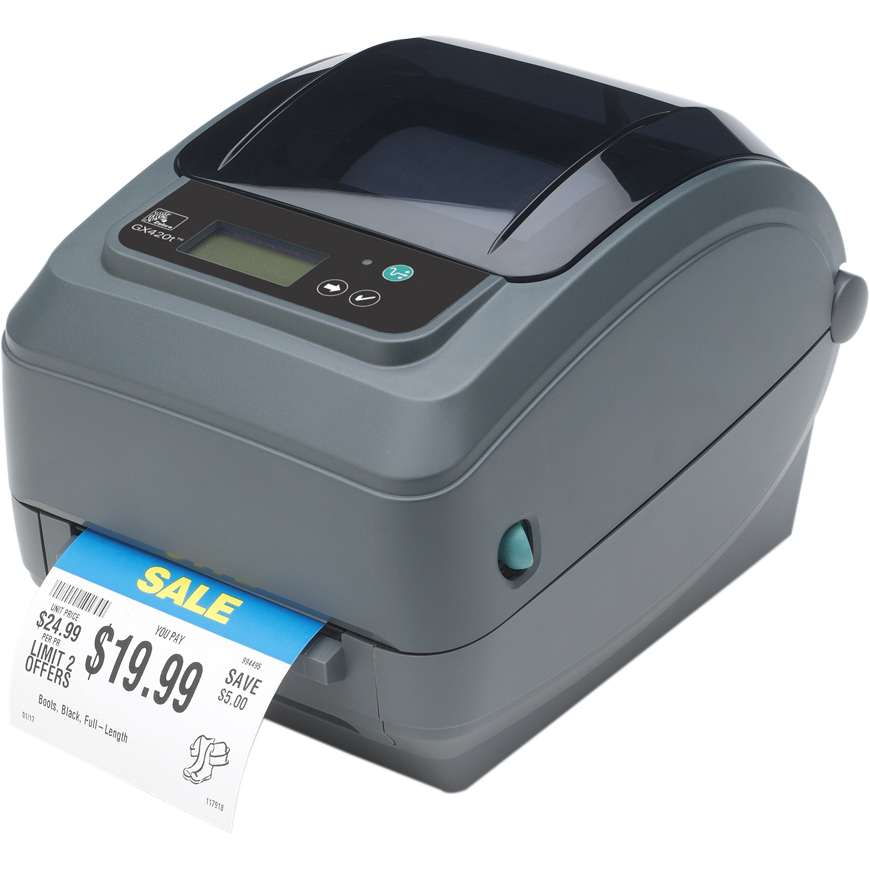

Zebra GX42-102811-000 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra GX420t - Thermal transfer printing, 203 dpi, 4" print width, USB, Serial, Bluetooth Interfaces, Dispenser, LCD. Includes power cord and USB cable.
Best in class speed and performance

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Peel Facility: Yes
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features:
    • Auto-calibration
    • Odometer
    • Dispenser
    • Peel Facility
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-14
    • Industrial 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI-3
    • Plessey
    • POSTNET
    • RSS
    • Standard 2 of 5
    • UCC 128
    • EAN 128
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A
    • UPC-E
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • Aztec Code
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Micro PDF-417
    • PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: G Series
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420t
  • Product Name: GX420t Desktop Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • GX420t Desktop Printer
    • USB Cable
    • User and Programming Manuals
    • Software & Driver CD
    • USA Power Cords
    • GX420t Desktop Printer
    • USB Cable
    • User and Programming Manuals
    • Software & Driver CD
    • USA Power Cords
  • Certifications & Standards:
    • Unicode
    • PFC
    • FCC Part 15
    • Subpart 15
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN6100-3-2
    • EN6100-3-3
    • EN55024
    • CCC
    • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
    • TUV NRTL
    • IRAM
    • NOM
    • AAMI

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Gap
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
    • Direct Thermal Label
    • Wristband
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Adjustable Media Sensor
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.55"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • EPL
    • ZPL
    • XML
    • EPL II
    • ZPL 1
    • ZPL II

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 64 MB

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model GX420t
Brand Zebra
Print Resolution 203 dpi
Printer Type Desktop
Print Method Thermal Transfer
Maximum Print Width 4.09
Interface Options USB
Printer Mobility Not Mobile
Ribbon Core 0.5
