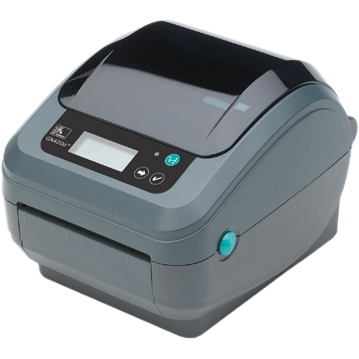

Zebra GX42-102710-100 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra GX420t - Thermal transfer printing, 203 dpi, 4" print width, USB, Serial, Wi-Fi (802.11b/g) Interfaces, Adjustable Black Line Sensor. Includes power cord and USB cable.
Best in class speed and performance

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Features: Auto-calibration
  • Barcode Symbology Supported:
    • Aztec Code
    • Codablock
    • Code 49
    • Data Matrix
    • Macro PDF-417
    • Maxi Code
    • Micro PDF-417
    • PDF-417
    • QR Code
    • RSS
    • GS1 DataBar
    • Codabar
    • Code 11
    • Code 128
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Code 39
    • Code 93
    • EAN-8
    • EAN-13
    • EAN-8 With 2 or 5 Digit Extension
    • EAN-13 With 2 or 5 Digit Extension
    • German Post Code
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • Japan Postal
    • LOGMARS
    • MSI
    • MSI-3
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UCC/EAN 128
    • UPC-A
    • UPC-E
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • EAN-14
    • UPC-A with EAN 2 or 5 Digit Extension
    • UPC-E with EAN 2 or 5 Digit Extension

General Information

  • Product Type: Thermal Transfer Printer
  • Product Series: G
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: GX420t
  • Product Name: GX420t Label Printer

Physical Characteristics

  • Height: 7.5"
  • Width: 7.6"
  • Depth: 10"
  • Form Factor: Desktop
  • Weight (Approximate): 4.60 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Black Mark
    • Continuous Label
    • Continuous Receipt
    • Gap
    • Fanfold
    • Die-cut Label
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag
    • Tag Stock
    • Wristband
  • Media Thickness: 7.50 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
    • Adjustable Media Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Other

  • Platform Supported: PC
  • Package Contents:
    • GX420t Label Printer
    • USA Power Cord
    • English/European/Latin America/Asian User Documentation
    • GX420t Label Printer
    • USA Power Cord
    • English/European/Latin America/Asian User Documentation
  • Certifications & Standards:
    • FCC Part 15
    • Subpart 15
    • VCCI
    • C-Tick
    • EN55022 Class-B
    • EN6100-3-2
    • EN6100-3-3
    • EN55024
    • CCC
    • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
    • TUV NRTL
    • IRAM
    • NOM
    • AAMI
    • PFC

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • EPL2
    • ZPL II
    • XML

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Standard: IEEE 802.11b/g

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model GX420t
Brand Zebra
Max Label Width 4.25
Label Core 1 inch
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Print Method Thermal Transfer
Interface Options Wireless, Serial, USB
Printer Type Desktop
Print Resolution 203 dpi
Print Speed 6
Printer Mobility Not Mobile
