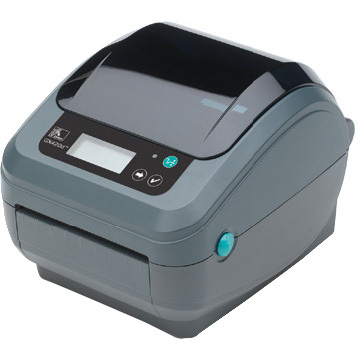

Zebra GX420t – Barcode Label Printer – 203 dpi

Part Number: GX42-102710-000
Model: GX420t
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Parallel, Serial (RS-232), USB, Wi-Fi
Print Resolution
203 dpi
Max Print Width
4.25 inch

Product Description:

  Thermal transfer/Direct thermal printing, 203 dpi, 4" print width, USB, Serial, Wi-Fi (802.11b/g) Interfaces, LCD. Includes power cord and USB cable.
Explore all Zebra GX420t Barcode Label Printers
Add to Quote
Zebra GX42-102710-000 Barcode Label Printer
Zebra GX42-102710-000 Barcode Label Printer
Zebra GX42-102710-000 Barcode Label Printer
Zebra GX42-102710-000 Barcode Label Printer Zebra GX42-102710-000 Barcode Label Printer

Full specifications (PDF)

Zebra GX420t Barcode Label Printer Model Overview

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Zebra GX42-102710-000 Barcode Label Printer Overview

Zebra's versatile desktop label printers fit almost any low- to mid-volume printing application and budget. These thermal desktop printers are a smart investment.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-14
  • Industrial 2 of 5
  • Japan Postal
  • LOGMARS
  • MSI-3
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC 128
  • EAN 128
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-E
  • UPC-A with EAN 2 or 5 Digit Extension
  • UPC-E with EAN 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • Aztec Code
  • Code 49
  • Data Matrix
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
Real Time Clock:
Yes
Application/Usage:
Desktop
Features:
  • Auto-calibration
  • Odometer
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
64 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Direct Thermal Label
  • Wristband
  • Linered Media
Media Sensor:
  • Adjustable Media Sensor
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.55"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • ZPL
  • XML
  • EPL II
  • ZPL 1
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.60 lb
Miscellaneous
Package Contents:
  • GX420t Desktop Printer
  • User and Programming Manuals
  • Software & Driver CD
  • USA Power Cords
Cables Included:
AC
Certifications & Standards:
  • Unicode
  • PFC
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017486581
UPC: 682017486581
EAN: 0682017486581
UNSPSC: 43212108
