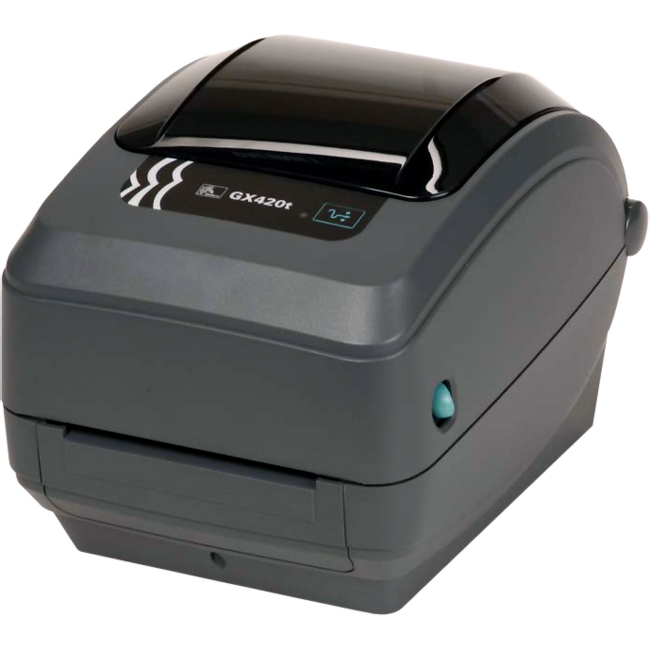

Zebra GX420t – Barcode Label Printer – 203 dpi – Cutter, Dispenser

Part Number: GX42-102512-000
Model: GX420t
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter, Dispenser

Product Description:

  Desktop Printer, Zebra GX420t, Thermal Transfer, 203 dpi, 6ips, USB/Serial/Parallel, ZPL2/EPL2 /Cutter/Dispenser, US Power Cord, No Real Time Clock
Explore all Zebra GX420t Barcode Label Printers
Add to Quote
Zebra GX42-102512-000 Barcode Label Printer
Zebra GX42-102512-000 Barcode Label Printer
Zebra GX42-102512-000 Barcode Label Printer
Zebra GX42-102512-000 Barcode Label Printer Zebra GX42-102512-000 Barcode Label Printer

Full specifications (PDF)

Zebra GX420t Barcode Label Printer Model Overview

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Zebra GX42-102512-000 Barcode Label Printer Overview

The best-in-class enhanced GX420t thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • EAN With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • MSI
  • MSI-3
  • POSTNET
  • RSS
  • Standard 2 of 5
  • Aztec Code
  • Codablock
  • Code 49
  • QR Code
  • Data Matrix
  • Macro PDF-417
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • GS1 DataBar
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
  • Direct Thermal Label
  • Wristband
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL2
  • XML
  • ZPL II
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.60 lb
Miscellaneous
Package Contents:
  • GX420t Label Printer
  • 6 feet USB Cable
  • USA Power Cords
  • User Documentation
Cables Included:
  • USB
  • AC
Platform Supported:
PC
Certifications & Standards:
  • FCC Part 15
  • Subpart 15
  • VCCI
  • C-Tick
  • EN55022 Class-B
  • EN6100-3-2
  • EN6100-3-3
  • EN55024
  • CCC
  • CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
  • TUV NRTL
  • IRAM
  • NOM
  • AAMI
  • PFC
Country of Origin:
China
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0682017483030, 0783555030837
UPC: 682017483030, 783555030837
EAN: 0682017483030, 0783555030837
UNSPSC: 43212108
