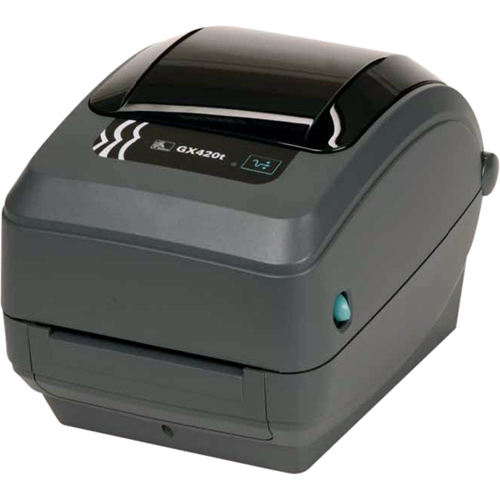

Zebra GX42-102420-000 Barcode Label Printer

The Zebra GX42-102420-000 Barcode Label Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Zebra GX420t - Desktop Printer, Zebra GX420t, Thermal Transfer, 203 dpi, 6ips, USB/Serial/Ethernet, ZPL2/EPL2 /Cutter/Dispenser, Includes EU/UK Power Cords
Printer Type
Desktop
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
203 dpi
Printer Options
Cutter, Dispenser
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports black bar media type for better reliance and maximum usability
  • Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
  • Comes with 8 MB standard memory for timely printing with added reliability
  • Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Zebra GX420t Barcode Label Printer Model Overview
Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Zebra GX42-102420-000 Barcode Label Printer Overview

Delivering fast print speed, the GX420t thermal transfer printers are the ideal option for applications that require network manageability and low total cost of ownership.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 128
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • UPC-A
  • UPC-E
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • Japan Postal
  • MSI
  • MSI-3
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC/EAN 128
  • UPC 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Macro PDF-417
  • Micro PDF-417
  • PDF-417
  • Maxi Code
  • QR Code
  • GS1 DataBar
  • UCC
Application/Usage:
Desktop
Connectivity Technology:
Wired
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Label
  • Continuous Receipt
  • Die-cut Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Roll Fed
  • Receipt
  • Tag
  • Tag Stock
  • Wristband
  • Direct Thermal Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL
  • XML
  • ZPL
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
39.9°F (4.4°C) - 105.8°F (41°C)
Operating Relative Humidity:
10% - 90%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
5% - 95%
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.60 lb
Miscellaneous
Cables Included:
  • USB
  • AC
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
GTIN: 3609740016073, 5711045221224
EAN: 3609740016073, 5711045221224
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra GX42-102420-000 Barcode Label Printer is also known as ZEB-GX42102420000 or GX42102420000.
