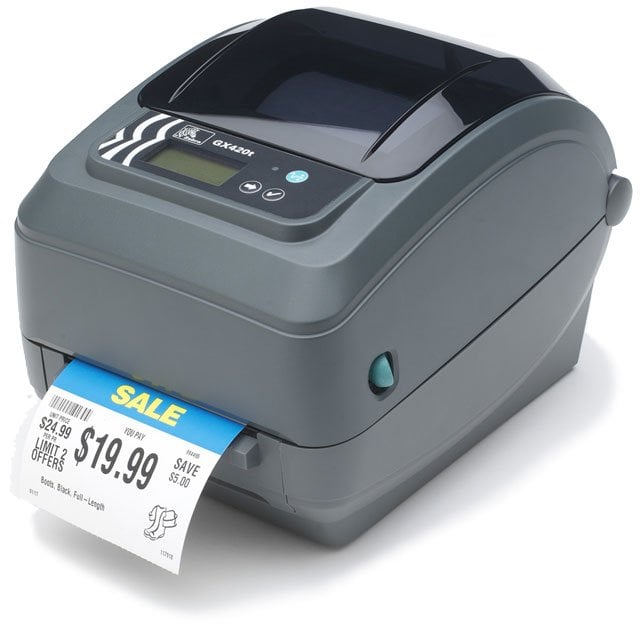

Zebra GX42-102411-000 Barcode Printer

Best in class speed and performance

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.

Technical Information

Maximum Mono Print Speed: 6 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Maximum Print Width: 4.09"
Recommended Use: Label Print
Features: Dispenser
Barcode Symbology Supported:
- Codabar
- Code 11
- Code 128
- Code 128-A
- Code 128-B
- Code 128-C
- Code 39
- Code 93
- EAN-13
- EAN-14
- EAN-8
- EAN With 2 or 5 Digit Extension
- EAN-13 With 2 or 5 Digit Extension
- EAN-8 With 2 or 5 Digit Extension
- UCC/EAN 128
- UPC-A
- UPC-E
- UPC-A with 2 or 5 Digit Extension
- UPC-E with 2 or 5 Digit Extension
- German Post Code
- Industrial 2 of 5
- Interleaved 2 of 5
- Japan Postal
- MSI
- MSI-3
- POSTNET
- RSS
- Standard 2 of 5
- Aztec Code
- Codablock
- Code 49
- QR Code
- Data Matrix
- Macro PDF-417
- Maxi Code
- Micro PDF-417
- PDF-417
- GS1 DataBar

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Product Series: G
Brand Name: Zebra
Manufacturer: Zebra Technologies Corporation
Product Model: GX420t
Product Name: GX420t Label Printer

Physical Characteristics

Height: 7.5"
Width: 7.6"
Depth: 10"
Form Factor: Desktop
Weight (Approximate): 4.60 lb

Interfaces/Ports

USB: Yes
Serial Port: Yes

Media Types & Handling

Maximum Label Width: 4.25"
Maximum Label Length: 39"
Media Type:
- Black Bar
- Black Mark
- Continuous Label
- Continuous Receipt
- Die-cut Label
- Fanfold
- Gap
- Notched
- Perforated Label
- Receipt
- Roll Fed
- Tag
- Tag Stock
- Direct Thermal Label
- Wristband
Media Thickness: 7.50 mil
Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
Label Core Size: 1.50"
Ribbon Core Size: 0.50"
Maximum Roll Diameter: 5"

Other

Platform Supported: PC
Package Contents:
- GX420t Label Printer
- USA Power Cords
- User Documentation
- GX420t Label Printer
- USA Power Cords
- User Documentation
Certifications & Standards:
- FCC Part 15
- Subpart 15
- VCCI
- C-Tick
- EN55022 Class-B
- EN6100-3-2
- EN6100-3-3
- EN55024
- CCC
- CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
- TUV NRTL
- IRAM
- NOM
- AAMI
- PFC

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
Power Source: AC Supply

Fonts & Emulation

Language Emulation:
- EPL2
- XML
- ZPL II

Memory

Standard Memory: 8 MB
Memory Technology: SDRAM
Flash Memory: 4 MB

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet

Warranty

Limited Warranty: 1 Year

Full specifications (PDF)

See all Zebra GX420t options »

Brand	Zebra
Model	GX420t
Interface Options	Serial, Ethernet, USB
Printer Type	Desktop
Included Features	ZPL2, EPL2
Max Roll Outer Diameter	5
Maximum Print Width	4.09
Max Label Width	4.25
Print Method	Thermal Transfer
Label Core	1 inch
Brand	Zebra
Print Resolution	203 dpi
Print Speed	6
Printer Mobility	Not Mobile
