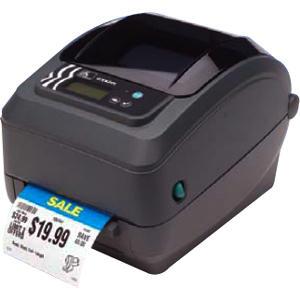

Zebra GX42-101710-000 Barcode Label Printer

Zebra GX42-102710-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX42-102710-000 Barcode Label Printer.
Zebra GX420t - Direct Thermal and Thermal Transfer printing, 203 dpi, RS-232 serial, USB and 802.11b wireless interfaces, 8MB RAM, 4MB Flash, tear bar, EPL 2, ZPL II and US Power Cord
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB, Wi-Fi
Print Resolution
203 dpi
Max Print Width
4.25 inch
  • A better-quality solution to print permanent-use documents
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • The printer is capable of printing sharp and detailed monochrome documents quickly
  • Get great quality printing results with label print printing
  • Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
  • 4.25" maximum label width to easily accommodate your needs with added productivity
  • 39" maximum label length to easily accommodate your needs with added productivity
  • Supports black bar media type for better reliance and maximum usability
  • Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra GX420t Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra GX42-101710-000 Barcode Label Printer
Zebra GX42-101710-000 Barcode Label Printer Zebra GX42-101710-000 Barcode Label Printer Zebra GX42-101710-000 Barcode Label Printer
Zebra GX42-101710-000 Barcode Label Printer
Zebra GX42-101710-000 Barcode Label Printer

Full specifications (PDF)
Zebra GX420t Barcode Label Printer Model Overview
Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Zebra GX42-101710-000 Barcode Label Printer Overview

The best-in-class GX420t thermal transfer printer offers the widest range of features, and fast 6 inches per second print speed to meet all your low- to medium-volume printing requirements. The GX420t has a sleek and compact design, boasts the easiest ribbon loading system on the market, and supports a variety of applications and industries. GX420t desktop printer is a smart investment that's always a perfect fit.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 39
  • Code 93
  • EAN-13
  • EAN-14
  • EAN-8
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • LOGMARS
  • MSI
  • MSI-3
  • Plessey
  • POSTNET
  • RSS
  • Standard 2 of 5
  • UCC/EAN 128
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-A
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • UPC-E
  • Aztec Code
  • Codablock
  • Code 49
  • Data Matrix
  • Macro PDF-417
  • Maxi Code
  • Micro PDF-417
  • PDF-417
  • QR Code
  • GS1 DataBar
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Form
  • Continuous Receipt
  • Fanfold
  • Gap
  • Notched
  • Perforated Paper
  • Receipt
  • Roll Fed
  • Tag
  • Tag Stock
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • ZPL
  • EPL
  • XML
  • ZPL II
  • EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Miscellaneous
Package Contents:
  • GX420t Network Thermal Label Printer
  • Drive and Software CD
  • Power Cord (USA)
Cables Included:
AC
Additional Information:
  • 32 bit RISC processor
  • LCD For Visual Communication
  • Quick and easy ribbon loading system
  • Dual-wall reinforced plastic construction
  • OpenACCESS design for easy media loading
  • User Documentation : English/European/Latin America/Asian
Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra GX42-101710-000 Barcode Label Printer is also known as ZEB-GX42-101710-000 or GX42101710000.
