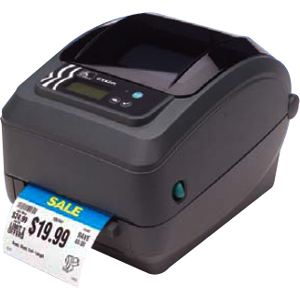

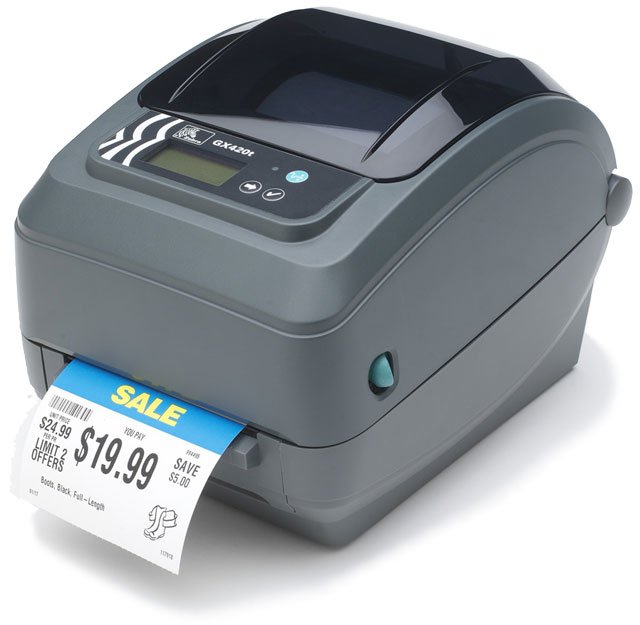

Zebra GX420t – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: GX42-100310-100
Model: GX420t
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
203 dpi

Product Description:

  Direct Thermal and Thermal Transfer printing, 203 dpi, RS-232 serial, Parallel and USB interfaces, 8MB RAM, 4MB Flash, tear bar, black bar sensor, EPL 2, ZPL II and US Power Cord
Explore all Zebra GX420t Barcode Label Printers
Add to Quote
Zebra GX42-100310-100 Barcode Label Printer
Zebra GX42-100310-100 Barcode Label Printer
Zebra GX42-100310-100 Barcode Label Printer
Zebra GX42-100310-100 Barcode Label Printer Zebra GX42-100310-100 Barcode Label Printer

Full specifications (PDF)

Zebra GX420t Barcode Label Printer Model Overview

Zebra GX420t is easy to use, flexible and reliable. The Thermal transfer Zebra GX420t has the easiest ribbon-loading system around. The GX420t produces 203 dpi print resolution at speeds up to 6 ips, and like all GX models, it's well-suited to a variety of applications and industries thanks to a wide choice of options. The Zebra GX420t features a wide range of options including 802.11b/g or Bluetooth wireless connectivity and 10/100 Ethernet, in addition to standard USB/serial/parallel.
Zebra GX42-100310-100 Barcode Label Printer Overview

The GX420t comes standard with EPL and ZPL programming languages and triple connectivity for easy integration into existing systems. For additional flexibility, 10/100 internal Ethernet is also available. Well-suited to any industry and with options such as an adjustable media sensor, cutter and peeler, the reliable GX420t desktop printer is a smart investment that's always a perfect fit.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
6 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • EAN-8
  • EAN-13
  • Code 128
  • Code 39
  • Code 93
  • Code 11
  • Codabar
  • EAN-14
  • German Post Code
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Japan Postal
  • ISBT-128
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • GS1 DataBar
  • Standard 2 of 5
  • UCC 128
  • EAN 128
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • UPC-E
  • UPC-A
  • Codablock
  • Code 49
  • Maxi Code
  • Data Matrix
  • QR Code
  • PDF-417
  • Micro PDF-417
  • Aztec Code
  • Macro PDF-417
  • Code 128-C
  • Code 128-B
  • Code 128-A
  • RSS
  • MSI-3
  • UCC/EAN 128
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
Application/Usage:
Desktop
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Black Bar
  • Black Mark
  • Continuous Receipt
  • Continuous Label
  • Die-cut Label
  • Fanfold
  • Gap
  • Notched
  • Perforated Label
  • Receipt
  • Roll Fed
  • Wristband
  • Tag
  • Tag Stock
  • Direct Thermal Label
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Media Thickness:
7.50 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
  • EPL II
  • ZPL II
  • XML
  • EPL
  • ZPL
Power Description
Power Source:
AC Supply
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
7.5"
Width:
7.6"
Depth:
10"
Weight (Approximate):
4.63 lb
Miscellaneous
Package Contents:
  • GX420t Label Printer
  • USA Power Cord
  • User Guide
  • USB Cable (6 ft)
Cables Included:
  • USB
  • AC
Platform Supported:
PC
Certifications & Standards:
  • FCC Part 15
  • Subpart B
  • VCCI
  • IRAM
  • AAMI
  • CCC
  • C-Tick
  • EN55022 Class-B
  • EN61000-3-2
  • EN6100-3-3
  • EN61000-3-0
  • CCC
  • CB Scheme IEC IEC 60950 : 1991 +A1 +A2 +A3 +A3 +A4
  • TUV NRTL
  • NOM
  • EN55024
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
