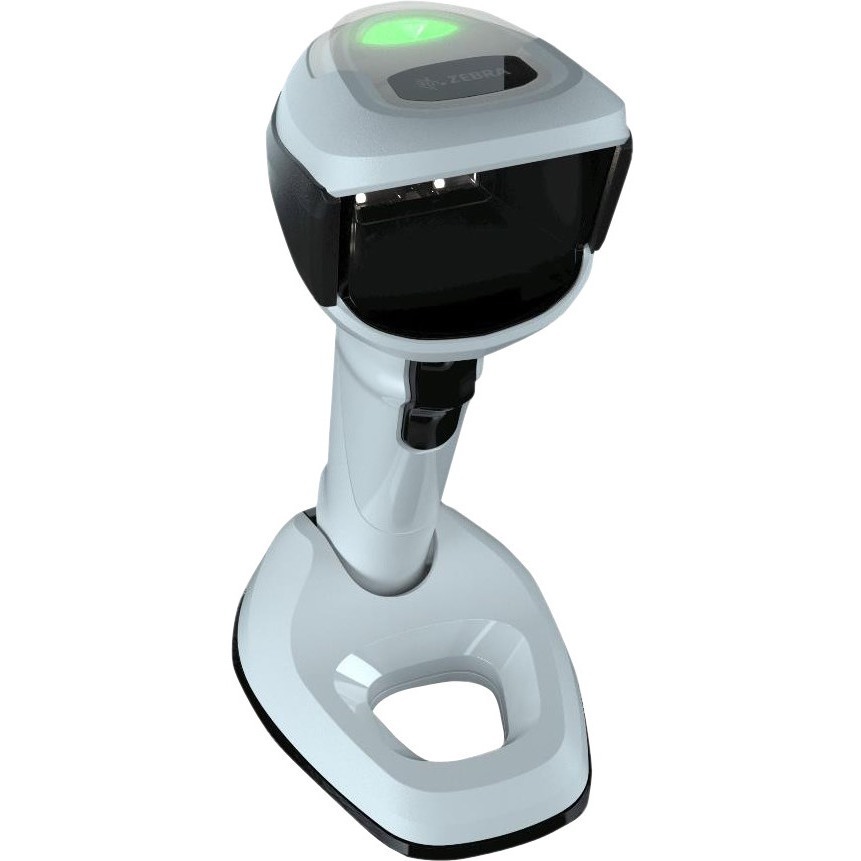

Zebra DS9908-HDWU2105AZU Barcode Scanner

Zebra DS9908-HD - General Purpose Scanners, Zebra DS9908-HD, DS9908-HD White USB Kit, US: DS9908-HD5000WZZUS Scanner, CBA-U21-S07ZBR Shielded USB Cable
Connectivity
Corded
Form Factor
Handheld, Presentation
Interface Options
USB, Serial
Scanner Capability
2D
Scanner Type
Imager
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
$1,087.31
In Stock
3-year Premium Plus ($99.18)
3-year Premium ($49.68)
No Support
Add to Quote
Zebra DS9900 Series Barcode Scanner Model Overview
The DS9900 Series features a one-of-a-kind hybrid form factor that provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra’s award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. The DS9900 Series can instantly capture dense, crinkled, faded, distorted, low contrast, and glossy printed barcodes, as well as electronic barcodes on dimly lit displays.

Key Features:
  • The DS9900 Series combines an 800 MHz microprocessor, a high-resolution sensor and Zebra’s exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes.
  • A patent-pending capacitive touch sensor and accelerometer work together to instantly switch to handheld mode as soon as an associate picks up the scanner.
  • With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving.
  • If you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model.
  • Deactivate Checkpoint EAS tags while scanning to boost productivity at the checkout and prevent erroneous alarms.


The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect — short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, Zebra’s award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra’s industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager — the ultimate in performance and design.


Scan it all with virtually no exceptions

The DS9900 Series combines an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes. Problematic barcodes won’t slow down your checkout lanes. The DS9900 Series can instantly capture dense, poorly printed, damaged, low-contrast, as well as electronic barcodes on dimly lit mobile phone displays.


Rapid-fire scanning to keep your lines moving

With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving. You get one of the industry’s top first-pass read rates — up to 240 in./610 cm per second. A large field of view makes presentation scanning easier than ever, enabling associates to focus on your shoppers rather than positioning items.


Bring RFID to your point of sale

If you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model. Checkouts are easier than ever, since associates can scan multiple items at once without line of sight. Capturing RFID tags provides the real-time inventory visibility needed for timely re-ordering and trending analysis. The reader operates with just 5 VDC and does not require an external power supply. And complimentary RFID data conversion software lets you read RFID tags without modifying your existing POS application.


Dynamic switching between hands-free and handheld modes

A patent-pending capacitive touch sensor and accelerometer work together to instantly switch to handheld mode as soon as an associate picks up the scanner. There are no mechanical components to wear out, providing fail-proof switching throughout the scanner’s life.


Hybrid ergonomics

The ergonomic handle is comfortably weighted and balanced, remarkably easy to pick up and aim in handheld mode. In presentation mode, the integrated adjustable stand offers a sturdy, compact solution that fits into space-constrained areas and frees up more space for impulse buys.


Two scanners in one

Handheld and presentation modes have different requirements for scanning. That’s why the DS9900 Series is purpose built for both modes. In presentation mode, the scan range is limited to prevent unintentional scanning of nearby items. In handheld mode, the scan range is extended up to 24 in./62 cm to easily reach items in the cart.


Day-in, day-out dependability

The DS9900 Series delivers the day-in, day-out dependable operation you need in your checkout lanes. Its proven single circuit board design eliminates a common point of failure, substantially increasing durability. Image quality is protected by a patented double-sealed optical scanning system, ensuring that the ‘eye’ of the DS9900 Series always captures the sharpest possible barcode for fast and reliable decoding. And the recessed scan window protects against smudges, dirt and scratches.


Designed to survive spills and drops

With IP52 sealing and elevated electronics, accidental spills and dust won’t impact operation1. Inadvertent drops aren’t a problem either — you can depend on reliable operation, even after multiple 5 ft./1.5 m drops to concrete and 2,000 consecutive 1.5 ft./0.5 m tumbles2.


Deactivate EAS tags while scanning

Optional EAS support allows associates to deactivate Checkpoint EAS tags while scanning the price, boosting productivity at the checkout and preventing erroneous alarms.


Doubles as a document scanner

With a single press of the scan trigger, Zebra’s Intelligent Document Capture can capture a high-resolution image of checks and full page documents. Smart software automatically compensates for variations in lighting and squares up the image for optimum clarity.


Streamline data collection with OCR

Support for OCR transmits scanned text to your application to expedite the collection of data from passports, ID cards and more.


Capture multiple barcodes with one press of the scan trigger

With Multi-Code Data Formatting (MDF), the DS9900 Series can scan multiple barcodes with a single trigger pull and transmit only the barcodes you need, in the order your application expects.


Identify poor-performing barcodes

Zebra’s ScanSpeed Analytics provides detailed performance metrics on each barcode captured — enabling you to identify and eliminate poor performing barcodes that slow down the checkout process. You can also view the number of decodes performed in handheld and hands-free mode to better understand how associates are using the scanner.


Single out one barcode from many

With Zebra’s Preferred Symbol, the DS9900 Series can capture and output only the preferred barcode, so associates no longer have to physically cover nearby barcodes before scanning.


Commission RFID tags on returns and more

In addition to reading RFID tags to complete a purchase, the DS9900 Series RFID model is capable of writing data to RFID tags — enabling staff to quickly commission tags on new inventory items and returned goods for faster processing.


Effortless deployment

The DS9900 Series couldn’t be easier to setup. With support for nearly 100 languages, it’s ready to use in your corner of the world. Right out of the box, the scanner is configured for the most common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go. And the DS9900 Series is compatible with Zebra DS9808 cables to leverage your existing accessory investment.


Easily manage all of your scanners with powerful complimentary tools

With 123Scan, you can easily create configuration barcodes to program scanners. If your scanners are in multiple locations across the country or around the world, with Scanner Management Service (SMS), you can configure and update the firmware for any DS9900 Series device that is plugged into the host — no depot staging or user action is required — such as the scanning of a configuration barcode.


Easy application development

Get everything you need to easily integrate scanning into your business applications with our Scanner Software Development Kits (SDKs) for Windows, Android, iOS and Linux. These SDKs provide documentation, drivers, test utilities and sample source code. And the RFID model comes with Zebra’s SDK and a sample application that enables it to read data from a barcode and write that data to an RFID tag — lowering the cost and complexity of implementing RFID.


Markets and Applications

 Retail Front of Store • Checkout scanning • Mobile payments, coupons and loyalty • Age verification (DL scanning) • Checkpoint EAS • RFID (POS and commissioning tags) Quick Serve Restaurants (QSR) • Checkout scanning • Age verification (DL scanning) • Mobile payments, coupons and loyalty Convenience Stores • Checkout scanning • Age verification (DL scanning) • Mobile payments, coupons and loyalty


Zebra DS9908-HDWU2105AZU Barcode Scanner Overview

Improve workflow efficiency and accuracy with the hybrid presentation imager built for the lab

2D barcodes and RFID help medical labs and pharmacies track critical items like medications, blood, tissue and other specimen samples to improve accuracy and efficiency. But barcodes found in the lab - from tiny barcodes on microscope slides to curved barcodes on medication bottles - can be challenging for a general purpose imager. Zebra's DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. Workers get first-time, every time capture of the many types of barcodes found in the lab including small, high density, curved and color-coded. A one-of-a-kind hybrid design offers both handheld and hands-free scanning, with seamless switching between modes. And an RFID model combines barcode scanning with RFID capabilities to read RFID tags on blood bags and other specimen samples. Improve workflow and accuracy with the hybrid imager built for the lab - the DS9900 Series.

Industry-best Performance

Scan it all with virtually no exceptions

The DS9900 Series combines a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology for unparalleled performance on virtually any barcode found in pharmacies and labs - including poorly printed, shiny, faded, dirty and damaged, as well as electronic barcodes on dimly lit displays. Its high density focus easily reads smaller high density barcodes on microscope slides as well as curved barcodes on medicine bottles and blood vials. White illumination LEDs make it easy to scan barcodes on color-coded specimen trays and biopsy cassettes. The result? High-confidence scanning in the lab with first-time, every time capture of even the most challenging barcodes for fewer workflow disruptions.

Rapid-fire scanning to boost productivity

With an 800 MHz microprocessor, advanced illumination system and first-pass read rates up to 240 in./610 cm per second, the DS9900 Series provides near instant barcode capture. With the widest field of view in its class, the scanner requires less precision when positioning items - making hands-free scanning easier than ever.

Optional RFID model for blood bag tracking and more

An RFID model offers barcode scanning and UHF RFID reading/writing in a single platform - providing an ideal solution for tracking serial numbers, expiration dates and other critical data in blood processing. Workers can read multiple RFID-tagged samples in one pass without line of sight. The RFID model operates from a single USB port and does not require an external power supply. Complimentary RFID data conversion software reports RFID tag data as a standard barcode so you don't need to modify your existing application.

Purpose-built for Hybrid Scanning

Dynamic switching between hands-free and handheld modes

The DS9900 Series combines a patent-pending capacitive touch sensor for hand detection and accelerometer for motion detection to instantly switch modes when a worker picks up or puts down the scanner. There are no mechanical components to wear out for fail-proof switching throughout the scanner's life.

Hybrid ergonomics

The ergonomic handle and a well-balanced design make the DS9900 Series remarkably easy to aim in handheld mode. And the integrated adjustable stand offers a sturdy, compact solution that easily fits into crowded workspaces.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code
  • 11, MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1
  • DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US Currency
Image Sensor Type:
Imager
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Alpine White
Height:
8"
Width:
3.7"
Depth:
5.2"
Weight (Approximate):
11.64 oz
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Zebra DS9908-HDWU2105AZU Barcode Scanner is also known as ZEB-DS9908HDWU2105AZ or DS9908HDWU2105AZU.
