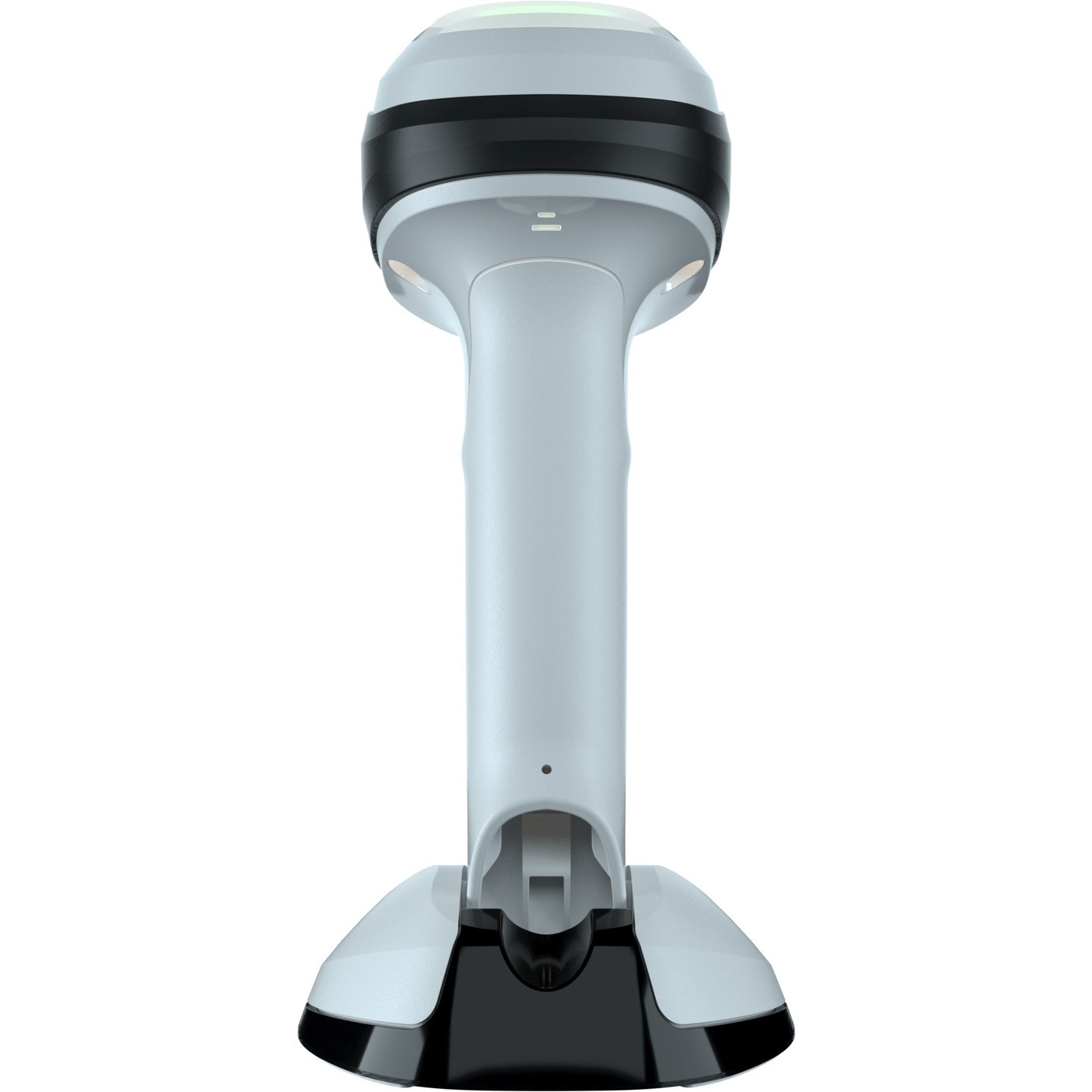

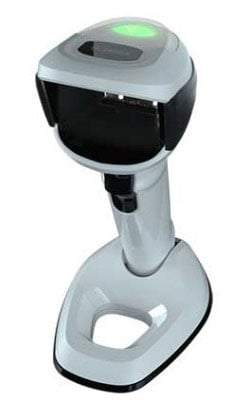

Zebra DS9908-HDWU2104AZW Barcode Scanner

Zebra DS9908-HD - General Purpose Scanners, Zebra DS9908-HD, DS9908-HD USB Kit: DS9908-HD4000WZZWW Scanner, CBA-U21-S07ZBR Shielded USB Cable
  • Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
$365.21
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Quantity Unit Price Discount
2 $358.95 1% OFF
5 $351.70 3% OFF
Add to Quote
Zebra DS9900 Series Barcode Scanner Model Overview
Zebra's DS9900 Series Corded Hybrid Imager for Retail boosts productivity at the point of sale with the ulitmate performance and design. The DS9900 Series allows you to give shoppers short lines, a speedy transaction and attentive service. The DS9900 Series' one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. With the DS9900 Series, you get Zebra's industry-leading scanning technology, seamless switching between models and superior ease of use, along with a wide range of innovative features that boost productivity. The ergonomic handle is comfortably weighted and balanced, remarkably ease to pick up and aim in handheld mode. In presentation mode, the integrated adjustable stand offers a sturdy, compact solution that fits into space-constrained areas and frees up more space for impulse buys.
Zebra DS9908-HDWU2104AZW Barcode Scanner Overview

Improve workflow efficiency and accuracy with the hybrid presentation imager built for the lab

2D barcodes and RFID help medical labs and pharmacies track critical items like medications, blood, tissue and other specimen samples to improve accuracy and efficiency. But barcodes found in the lab - from tiny barcodes on microscope slides to curved barcodes on medication bottles - can be challenging for a general purpose imager. Zebra's DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. Workers get first-time, every time capture of the many types of barcodes found in the lab including small, high density, curved and color-coded. A one-of-a-kind hybrid design offers both handheld and hands-free scanning, with seamless switching between modes. And an RFID model combines barcode scanning with RFID capabilities to read RFID tags on blood bags and other specimen samples. Improve workflow and accuracy with the hybrid imager built for the lab - the DS9900 Series.

Industry-best Performance

Scan it all with virtually no exceptions
The DS9900 Series combines a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology for unparalleled performance on virtually any barcode found in pharmacies and labs - including poorly printed, shiny, faded, dirty and damaged, as well as electronic barcodes on dimly lit displays. Its high density focus easily reads smaller high density barcodes on microscope slides as well as curved barcodes on medicine bottles and blood vials. White illumination LEDs make it easy to scan barcodes on color-coded specimen trays and biopsy cassettes. The result? High-confidence scanning in the lab with first-time, every time capture of even the most challenging barcodes for fewer workflow disruptions.

Rapid-fire scanning to boost productivity
With an 800 MHz microprocessor, advanced illumination system and first-pass read rates up to 240 in./610 cm per second, the DS9900 Series provides near instant barcode capture. With the widest field of view in its class, the scanner requires less precision when positioning items - making hands-free scanning easier than ever.

Optional RFID model for blood bag tracking and more
An RFID model offers barcode scanning and UHF RFID reading/writing in a single platform - providing an ideal solution for tracking serial numbers, expiration dates and other critical data in blood processing. Workers can read multiple RFID-tagged samples in one pass without line of sight. The RFID model operates from a single USB port and does not require an external power supply. Complimentary RFID data conversion software reports RFID tag data as a standard barcode so you don't need to modify your existing application.

Purpose-built for Hybrid Scanning

Dynamic switching between hands-free and handheld modes
The DS9900 Series combines a patent-pending capacitive touch sensor for hand detection and accelerometer for motion detection to instantly switch modes when a worker picks up or puts down the scanner. There are no mechanical components to wear out for fail-proof switching throughout the scanner's life.

Hybrid ergonomics
The ergonomic handle and a well-balanced design make the DS9900 Series remarkably easy to aim in handheld mode. And the integrated adjustable stand offers a sturdy, compact solution that easily fits into crowded workspaces.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code
  • 11, MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1
  • DataBar
  • Base 32 (Italian Pharma)
2D:
  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39
  • Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
OCR:
  • OCR-A
  • OCR-B
  • MICR
  • US Currency
Image Sensor Type:
Imager
Scanning Distance:
18"
Display Screen:
Yes
Cable Type Included:
USB
Field of View (Horizontal):
48°
Field of View (Vertical):
31°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Image Formats:
  • JPEG
  • BMP
  • TIFF
Maximum Ambient Light:
107600 lux
Drop Specification:

Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete

Minimum Print Contrast:
16%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
3 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.7 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Product Color:
Alpine White
Height:
8"
Width:
3.7"
Depth:
5.2"
Weight (Approximate):
11.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Healthcare
  • Pharmacy
  • Laboratory
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Zebra DS9908-HDWU2104AZW Barcode Scanner is also known as ZEB-DS9908HDWU2104AZ or DS9908HDWU2104AZW.
