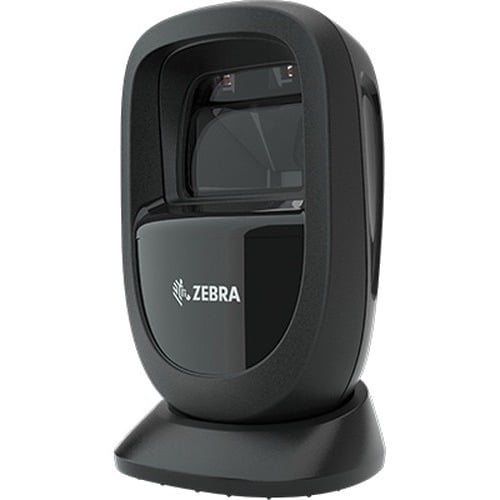

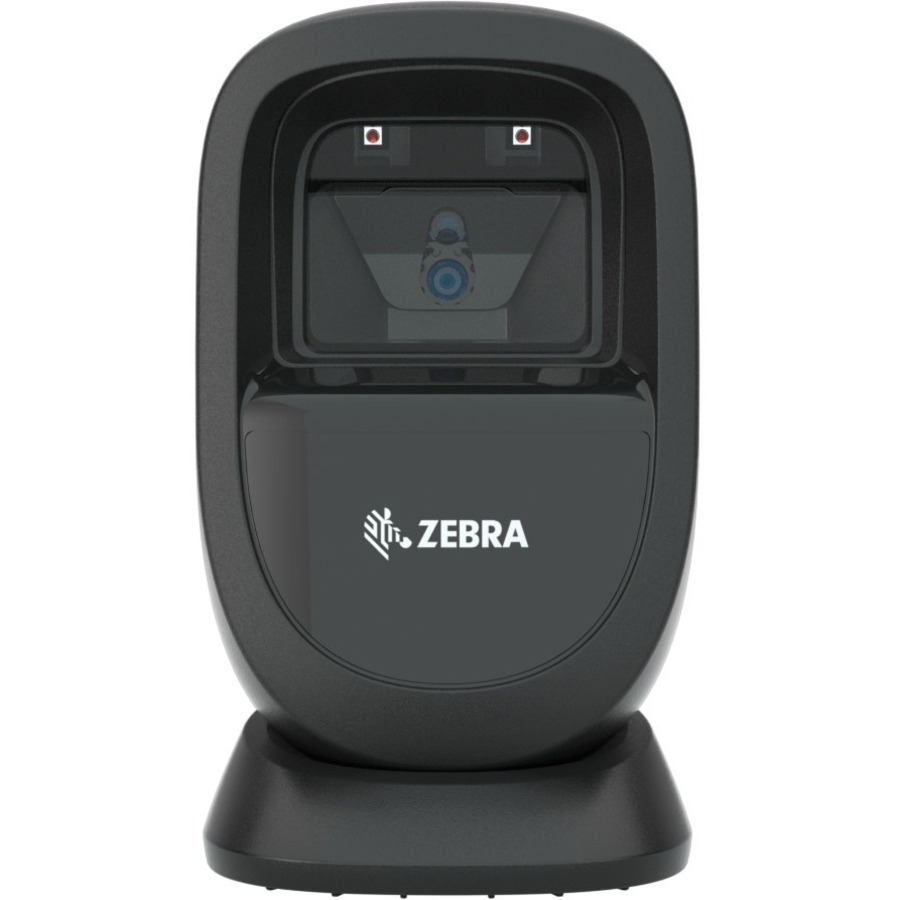

Zebra DS9308-SRD0004ZZWW Barcode Scanner

Zebra DS9308-SR00004ZZWW Barcode Scanner A newer version of this item is available.
It is replaced by the Zebra DS9308-SR00004ZZWW Barcode Scanner.
Zebra DS9308 - Corded Barcode Scanner, Zebra DS9308, 1D/2D Imager, General Purpose, SCANNER ONLY, Presentation, IP52, Standard Range, Digimarc, Black
Connectivity
Corded
Form Factor
Presentation
Interface Options
USB
Scanner Capability
2D
Scanner Type
Imager
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Zebra DS9308 Barcode Scanner Model Overview
With its near-zero footprint and stylish aesthetics, the DS9300 Series fits anywhere — from trendy boutiques to convenience stores with limited real-estate at the checkout counter. Rapid-fire swipe speeds and unparalleled performance keep lines moving.

Key Features:
  • The compact DS9300 Series fits in the most space-constrained counters and the modern and stylish design is at home everywhere, from the trendiest boutique to a petroleum convenience store.
  • The DS9300 Series leverages an 800 MHz processor, megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology to instantly capture virtually any printed and electronic barcode.
  • Designed for maximum reliability - IP52 sealing, 5 ft./1.5 m drop spec, 1,000 x 1.5 ft./ 0.5 m tumble spec plus concealed beeper hole and elevated circuitry to protect against spills in QSRs, convenience stores and more.
  • Value added features include optional driver’s licenses parsing (North America only), Digimarc barcode support, EAS tag deactivation and more.
  • Complimentary Tools for Easy Deployment and Management across an enterprise.


From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality


A fit-everywhere modern design with a near-zero footprint

The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.


Scan it all — with virtually no exceptions

Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.


Rapid-fire can’t-miss scanning

When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.


Intelligent adaptive illumination

The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.


Instantly capture and process driver’s license data

Use the information on a driver’s license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.


Eliminate paper with document capture

With Intelligent Document Capture, the DS9300 Series can turn prescriptions, passports, checks and other A6 or smaller documents into clear and easy-to-read electronic images — the smart software automatically corrects lighting issues and more to ensure optimum document clarity. There’s no need to locate and scan documents on a separate scanner, enabling faster checkout and a better customer experience at the POS.


Automatically deactivate anti-theft tags

Support for Checkpoint Electronic Article Surveillance (EAS) eliminates a step at the POS for faster checkout — a single pass in front of the DS9300 Series captures barcodes and deactivates tags.


Capture multiple barcodes with one press of the scan trigger

With Multi-Code Data Formatting (MDF), the DS9300 Series can capture multiple barcodes with a single scan and transmit only the barcodes you need, in the order your application expects.


Single out one barcode from many

With Zebra’s Preferred Symbol, the DS9300 Series can capture and output only the preferred barcode, so associates no longer have to waste time physically covering nearby barcodes before scanning.


Ensure feedback is always visible and audible

You can adjust the volume, frequency and duration of the beeper to ensure your associates can hear the tone that signals a successful scan. And the bright green “good decode” LED is visible no matter where your associates are standing — in front of or behind the scanner.


Drops, dust and spills — no problem

The DS9300 Series is built to handle 5 ft./1.5 m drops to concrete and 1,000 consecutive 1.5 ft./0.5 m tumbles, ready to survive the knocks and bumps that can happen in the real-world. And spills and dust won’t slow the DS9300 Series down. Thanks to IP52 sealing and a patent-pending opto-mechanical layout that includes a concealed beeper hole with elevated circuitry and cable connector, even the base is spill proof.


A multi-position base that won’t wear out

The flexible ratcheting base offers four positions, from 15° back to 45° forward. This frictionless system won’t wear out like those used in competitive devices, ensuring convenient positioning for maximum flexibility, every day the DS9300 Series is in service


Backwards compatibility with DS9208 cables and power supplies

Upgrade to the DS9300 Series to get all the advantages of today’s advanced scanning technologies in your business — cost-effectively.


Plug-and-play instant deployment

Get up and running right out of the box with optimized default configuration settings, auto-host detect cables that instantly connect to all popular interfaces and keyboard support for nearly 100 languages


Multiple mounting options for a wide variety of applications

The “slipper” style multi-mount accessory keeps the scanner in place on a table or wall without restricting the tilt range or the ability to remove the scanner for handheld use — ideal for price checking, pick and pack and more. The locking-mount accessory is ideal for applications where the scanner should not be removed, for example, in customer facing applications such as self checkout and mobile loyalty


DataCapture DNA delivers unsurpassed value

Only from Zebra, this unique collection of value-add tools makes it easier to deploy, update, troubleshoot, manage and develop applications for your DS9300 Series scanners. For example, 123Scan creates a single barcode to initially stage or update scanners. Develop and deploy applications faster and easier than ever with the Scanner SDK. ScanSpeed Analytics makes it easy to spot and correct issues before they impact performance and worker productivity. And you can remotely manage your scanners through Scanner Management Service (SMS) or Windows Management Instrumentation (WMI), eliminating the time and cost for onsite visits.


Markets and Applications

• Retail • Point of sale (1D/2D) • Mobile coupons/ loyalty (eCoupons/ eLoyalty) • Driver’s License parsing for age verification/loyalty and credit applications (North America only) • Cigarette and liquor tax verification • Checkpoint EAS Hospitality • Point of sale (1D/2D) • Mobile coupons/ loyalty (eCoupons/ eLoyalty) • Concession stands • Ticket processing (paper/mobile, 1D/2D) Quick Service Restaurants (QSR) • Point of sale (1D/2D) • Mobile coupons/ loyalty (eCoupons/ eLoyalty) • Driver’s License parsing for age verification/loyalty and credit applications (North America only) Transportation • Point of sale (1D/2D) • Ticket processing (paper/mobile, 1D/2D) • Gate/business lounge check-in (paper/mobile boarding passes) • Driver’s License parsing (Department of Motor Vehicles — NA only)


Zebra DS9308-SRD0004ZZWW Barcode Scanner Overview
The little presentation scanner with big functionality

From convenience and drug stores to quick serve restaurants and other retail environments - counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series - the little presentation scanner with big functionality.

Innovation-driven design and performance

A fit-everywhere modern design with a near-zero footprint

The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there's always room for the DS9300 Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.

Scan it all - with virtually no exceptions

Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra's DS9300 Series' state-of-the-art technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.

Rapid-fire can't-miss scanning

When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the "sweet spot".

Intelligent adaptive illumination

The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.

Instantly capture and process driver's license data

Use the information on a driver's license to instantly verify age, populate loyalty and credit card applications and monitor returns to prevent fraud.

Eliminate paper with document capture

With Intelligent Document Capture, the DS9300 Series can turn prescriptions, passports, checks and other A6 or smaller documents into clear and easy-to-read electronic images - the smart software automatically corrects lighting issues and more to ensure optimum document clarity. There's no need to locate and scan documents on a separate scanner, enabling faster checkout and a better customer experience at the POS.
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:
  • Code 39
  • Code 128
  • Code 93
  • Codabar/NW7
  • Code 11
  • MSI Plessey
  • UPC/EAN
  • I 2 of 5
  • Korean 3 of 5
  • GS1 DataBar
  • Base 32 (Italian Pharma)

2D:

  • PDF417
  • Micro PDF417
  • Composite Codes
  • TLC-39, Aztec
  • DataMatrix
  • MaxiCode
  • QR Code
  • Micro QR
  • Han Xin
  • Postal Codes
  • securPharm
  • DotCode
  • Dotted DataMatrix

OCR:

  • OCR-A
  • OCR-B
  • MICR
  • US currency
Image Sensor Type:
Imager
Display Screen:
Yes
Field of View (Horizontal):
52°
Field of View (Vertical):
33°
Reading Angle (Skew):
60°
Reading Angle (Pitch):
60°
Reading Angle (Roll):
360°
Image Formats:
  • JPEG
  • BMP
  • TIFF
Maximum Ambient Light:
107700 lux
Drop Specification:

Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
3 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
6.7 mil
Interfaces/Ports
Host Interface:
  • USB
  • EAS
  • Keyboard Wedge
  • Serial
Physical Characteristics
Form Factor:
Desktop
Product Color:
Midnight Black
Height:
5.7"
Width:
3.4"
Depth:
3.3"
Weight (Approximate):
11.22 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Retail
  • Hospitality
  • Quick Service Restaurant (QSR)
  • Transportation
Country of Origin:
Vietnam
Item Numbers
UNSPSC: 43211701
