The DS4600 Series Corded Imagers by Zebra revolutionizes retail operations with its unmatched scanning versatility and performance. Designed to streamline checkout and returns, this powerful scanner effortlessly handles barcodes of any size and in any condition, whether it’s from a label or a mobile coupon. With unique features like Optical Character Recognition for ID processing and fast data capture, the DS4600 series guarantees quicker transactions, enhancing customer satisfaction and ensuring repeat business.
Key Features:
Versatile Scanning: Scan 1D and 2D barcodes, IDs, documents, and more.
Ergonomic Design: Easily switch between handheld and hands-free scanning.
Durable Construction: IP52 rated, designed to withstand drops and spills.
High Performance: Captures barcodes up to 28 inches away with advanced imaging technology.
Multi-Code Data Formatting: Scan multiple barcodes in one trigger pull.
Specifications:
Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Weight: 5.7 oz. / 161.9 g
Input Voltage Range: 4.5 to 5.5 VDC
Supported Interfaces: USB, RS232, IBM 46XX
Operating Temperature: 32°F to 122°F / 0°C to 50°C
Drop Specification: Survives drops of 6 ft. / 1.8 m
Warranty: Five-Year Limited Warranty

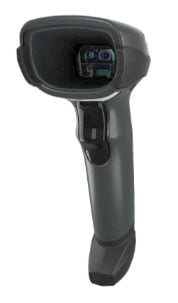

Zebra DS4608-HL00007ZZWW Barcode Scanner Overview
VERSATILITY THAT DOES MORE FOR YOUR WHOLE STORE
Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer's driver's license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewellery department, data from a travel document, the DS4600 Series does more for your whole store.
CAPTURE BARCODES MORE THAN 70 CENTIMETRES AWAY
Bulky and heavy items won't slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it's easy for checkout associates to scan items in a shopper's cart without leaving the checkout.
ONE SCANNER FOR YOUR WHOLE STORE
No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewellery tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver's license information. And much more.
FASTEST SCANNING PERFORMANCE IN ITS CLASS
Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.
Power Device, Zebra, Level Vi AC/DC Power Supply Wall Adapter, With Captive DC Cable And US Adapter Clip AC Input, 100-240V, 0.2A DC Output, 5.2V, 1.1A, 5.7W
Power Device, Zebra, Level Vi AC/DC Power Supply Wall Adapter, With Au, US, Eu, And Uk Adapter Clips, AC Input, 100-240V, 0.2A, DC Output, 5.2V, 1.2A, 6W, Requires, USB To Micro-USB Or USB To Device Specific Cable Cup And Br Adapter Clip.
Power Systems & Supplies, Zebra, Power, Level VI AC/DC Power Supply Wall Adapter, with Captive DC Cable and Br Adapter Clip. AC Input: 100-240V, 0.2A. DC Output: 5.2V, 1.1A, 5.7W
The DS4608-HL captures a comprehensive range of barcode symbologies including 1D codes (Code 39, Code 128, UPC/EAN, GS1 DataBar) and 2D codes (QR Code, DataMatrix, PDF417, Aztec, DotCode). It also supports Optical Character Recognition (OCR) for reading ID cards and travel documents, making it versatile for retail checkout, mobile coupons, and driver's license parsing. We offer this scanner with full symbology support right out of the box.
What is the scanning range of the DS4608-HL?
The DS4608-HL delivers a scan range of up to 28 inches (71 cm), allowing cashiers to easily scan bulky items in shopping carts while remaining seated at the checkout. The bright aiming spot provides clear visibility for precise targeting across this extended range. This superior range capability is ideal for high-volume retail environments where speed and convenience are critical.
Is the Zebra DS4608-HL durable enough for retail environments?
Yes, the DS4608-HL is engineered for durability with IP52 sealing to protect against spills and a double-sealed optical system that guards against dust and liquid. It survives multiple 6-foot drops to concrete and passes 2,000 tumbles in Zebra's rigorous tumble test. The recessed scan window further protects against smudges, dirt, and scratches, ensuring reliable day-in, day-out performance in demanding retail settings.
Can the DS4608-HL switch between handheld and hands-free scanning modes?
Yes, the DS4608-HL supports on-the-fly switching between handheld and hands-free modes using optional presentation stands or cradles—no setting changes required. Simply place the scanner in the cradle for hands-free operation or pick it up for handheld use. This flexibility allows your team to adapt scanning to different checkout scenarios and product types throughout the day.
What software tools are included with the DS4608-HL?
The DS4608-HL comes with Zebra DNA—a comprehensive suite of complimentary software tools including 123Scan for simplified deployment, Advanced Data Formatting for custom workflow optimization, and Remote Diagnostics for real-time fleet monitoring. We also provide IoT Connector for automated data collection and powerful management software for remote device management. These tools help you maximize efficiency and uptime across your entire scanning deployment.
What are the ideal use cases for the DS4608-HL in retail?
The DS4608-HL excels in retail checkout scanning, mobile scanning for eCouponing and loyalty programs, driver's license parsing for age verification and credit applications, and auxiliary handheld scanning in high-volume lanes. It also supports Checkpoint EAS tag deactivation, OCR for passport reading, and inventory/receiving operations. Contact us today to discuss how the DS4608-HL can optimize your specific retail operations.
The Zebra DS4608-HL00007ZZWW Barcode Scanner is also known as
ZEB-DS4608HL00007ZZWW
or DS4608HL00007ZZWW.
