Zebra C3B-0UBAV001-00 Portable Barcode Printer

Part Number: C3B-0UBAV001-00
Model: Cameo 3
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Bluetooth
Print Resolution
203 dpi

Product Description:

  Direct thermal, 203 dpi, 3" Printhead, Bluetooth, Linered Platen, VAR, Belt Clip and Mag Card Reader
Explore all Zebra Cameo 3 Portable Barcode Printers
Add to Quote
Zebra C3B-0UBAV001-00 Portable Barcode Printer
Zebra C3B-0UBAV001-00 Portable Barcode Printer
Zebra C3B-0UBAV001-00 Portable Barcode Printer
Zebra C3B-0UBAV001-00 Portable Barcode Printer Zebra C3B-0UBAV001-00 Portable Barcode Printer Zebra C3B-0UBAV001-00 Portable Barcode Printer
Full specifications (PDF)

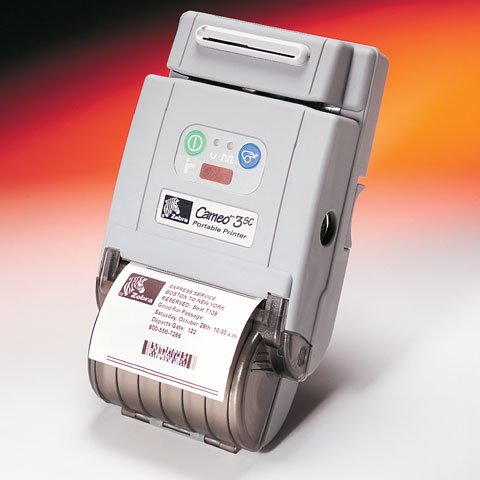

Zebra Cameo 3 Portable Barcode Printer Model Overview

The 1.4-pound Zebra Cameo 3 may be lightweight, but its rugged design enables it to adapt to the harshest environments and survive drops of up to six feet (with protective boot). The Zebra Cameo 3 printer is ideal for auto rental point-of-transaction processing, route accounting and package delivery, airline boarding passes, gaming/wager tickets, and parking tickets and violations. A 3-inch print width accommodates standard portable receipt printer paper.

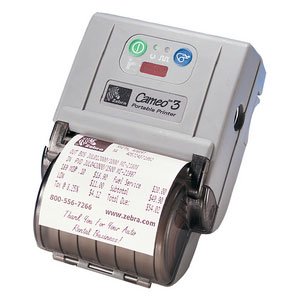

Zebra C3B-0UBAV001-00 Portable Barcode Printer Overview

Receipt printing is fast and efficient with the lightweight, versatile Cameo 3 mobile printer. Its rugged design enables it to adapt to the harshest environments and survive drops of up to 6' (1.29 m). It is easy to wear, and sleek and durable enough to carry and use anywhere. The Cameo 3 is ideal for auto rental point-of-transaction processing, route accounting and package delivery, airline boarding passes, gaming/wager tickets, and parking tickets and violations.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.83"
Barcode Symbology Supported:
  • Codabar
  • Code 128
  • Code 39
  • Code 93
  • EAN-8
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • POSTNET
  • UCC 128
  • EAN 128
  • UPC-E
  • UPC-A
  • EAN-18
  • NW-7
  • FIM
  • Maxi Code
  • PDF-417
Application/Usage:
Mobile
Features:
  • Belt Clip
  • Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Standard Memory:
1 MB
Flash Memory:
1 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Bluetooth:
Yes
Media Types & Handling
Media Type:
Continuous Receipt
Maximum Roll Diameter:
2.20"
Fonts & Emulation
Language Emulation:
CPCL
Battery Information
Battery Chemistry:
Nickel Metal Hydride (NiMH)
Battery Included:
Yes
Battery Capacity:
1600 mAh
Physical Characteristics
Form Factor:
Portable
Height:
6.2"
Width:
4.6"
Depth:
2.6"
Miscellaneous
Package Contents:
  • Cameo 3 Mobile Receipt Printer
  • NiMH Battery
Additional Information:
  • Character Set: US/Canadian English/Latin 1 & 5 (Incl. Turkish)
  • Media Handling: Direct Thermal/ Linered Platen
  • Ancillary Item: VAR (adds UMAN/accessories cd)
  • High-impact Texin polycarbonate/polyurethane blended plastic construction
  • 16 bit external high-performance processor
  • Paper out sensor
  • Media Sensor: Reflective
  • External power on/off control from keypad, terminal, or printer
  • Supports user-defined fonts and graphics, including custom logos
Platform Supported:
PC
Certifications & Standards:
  • CE
  • FCC Class A
  • FCC Class B
  • FCC Part 15 Subpart B
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 45101512
