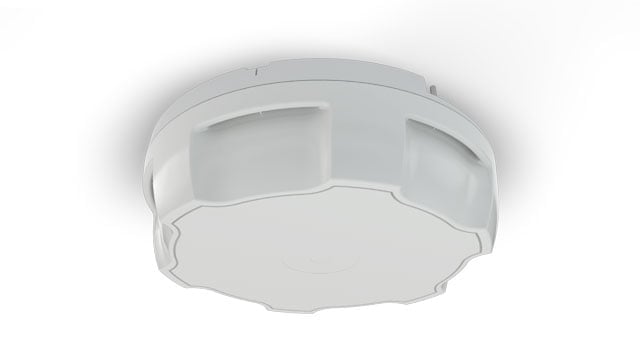

Zebra ATR7000-P2100A0-US RFID Reader
Full specifications (PDF)
Zebra ATR7000 RFID Reader Model Overview
The ATR7000 RTLS Reader revolutionizes operational efficiency with advanced RFID technology, enabling real-time visibility of your critical assets. With pinpoint accuracy of up to 2 ft. and the ability to detect asset movement, direction, and location, this reader empowers businesses to enhance productivity and streamline workflows. The ATR7000's easy integration with Zebra's RFID API and Configuration and Location Analytics Software (CLAS) allows for simplified management and monitoring of tagged assets, resulting in cost savings and improved asset visibility in complex environments.
Key Features
- Advanced RFID Technology: Proprietary technology that ensures superior accuracy and coverage.
- Real-Time Tracking: Monitor the location and movement direction of assets, even at peak speeds.
- Flexible Mounting Options: Easily installable with built-in pole mounts and standard VESA mounting.
- Cost Efficiency: Reduces hardware costs by covering larger areas with fewer units.
- No-Cost Tag Maintenance: Utilizes passive UHF tags that require no battery maintenance.
Specifications
- Physical Dimensions: Diameter 19.0 in. (482.6 mm), height 6.34 in. (161 mm) - Weight: 11.1 lbs (5.03 kg)
- Operating Temperature: -4° F to +131° F/-20° C to +55°C
- Storage Temperature: -40° F to +158° F/-40° C to +70° C
- Connectivity: 10/100 Base-T Ethernet, General Purpose I/O
- Power Supply: PoE+ (802.3at) or AC/DC power supply rated for +24Vdc, 3.25 A
- Location Accuracy: Typically within 2 ft./0.6 m
- Environmental Sealing: IEC IP51
- Warranty: 1-year limited warranty against defects
Recommended Accessories
Category
- Mounting Hardware and Stands (7)
- Power Device (1)
Recommended Accessories for Model: Zebra ATR7000-P2100A0-US RFID Reader
Top Mounting Hardware and Stands Purchased With Zebra ATR7000-P2100A0-US
-
Zebra BRKT-VMATR7-00 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Vesa Mount for ATR7000, Vesa-75 and Vesa-100In Stock$34.54 -
Zebra BR-000237-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Telescopic Adjustable (18" to 32") Ceiling Mount Pole, White, Short (1'6" to 2'8")In Stock$237.67 -
Zebra BR-000237-02 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Telescopic Adjustable (36" to 66") Ceiling Mount Pole, White, Medium (3' to 5'6")In Stock$258.49
Top Power Device Purchased With Zebra ATR7000-P2100A0-US
-
Zebra PWR-BGA24V78W1WW Power DevicePower Device, Zebra, Level VI AC/DC Power Supply with Captive DC Cable: AC Input 100-240V, 1.4A DC Output: 24V, 3.25A, 78W, -20 to +55 Degress C, Requires Country Specific Grounded AC Line CordIn Stock$111.47
Frequently Asked Questions
What is the location accuracy of the Zebra ATR7000 RFID reader?
The Zebra ATR7000 delivers real-time asset tracking with location accuracy better than 2 feet (0.6 meters), enabling precise visibility of tagged asset movement and direction. This superior accuracy is achieved through proprietary advanced RFID technology featuring parallel multi-transmit/receive architecture and digital beam-forming capabilities. We offer the ATR7000 as a premium solution for warehouses and logistics operations requiring precise asset location intelligence.
Can the Zebra ATR7000 integrate with my warehouse management system?
Yes, the Zebra ATR7000 features seamless integration with business systems including Warehouse Management Systems (WMS) through Zebra's RFID API, enabling easy deployment and compatibility with your existing infrastructure. The reader also includes a web-based interface for simplified setup and remote management of multiple units. Contact us today to discuss integration requirements for your specific WMS environment.
What are the power and mounting options for the ATR7000?
The Zebra ATR7000 supports flexible deployment with PoE+ (Power over Ethernet) or 24V DC power supply options, allowing you to choose the most convenient power source for your installation. The reader can be mounted via pole mount or VESA mount, providing versatility for warehouse ceiling, wall, or structural installations. Visit barcodesinc.com to explore mounting solutions available with our team.
How does the wide-angle antenna on the ATR7000 reduce hardware costs?
The Zebra ATR7000's wide-angle multi-polarized antenna covers up to double the area of competitive readers, allowing you to deploy fewer units across your facility while maintaining comprehensive asset visibility. This expanded coverage directly reduces the number of readers needed and associated installation costs, making it a cost-effective solution for large warehouse and logistics environments. We offer the ATR7000 as an economical alternative to deploying multiple standard readers.
Is the Zebra ATR7000 suitable for industrial warehouse environments?
Yes, the Zebra ATR7000 is built for industrial durability with IP51 sealing for dust and moisture protection, ESD (electrostatic discharge) protection, and compliance with global RF/EMI standards. These specifications ensure reliable operation in demanding warehouse and logistics environments with high equipment activity and electromagnetic interference. Contact us today to verify environmental compatibility for your specific facility conditions.
What frequency band does the Zebra ATR7000 operate on?
The Zebra ATR7000 operates on the 900 MHz frequency band and is designed for US operation, utilizing passive UHF RFID tags that require no maintenance or power source. This frequency band provides optimal range and penetration for warehouse asset tracking applications while maintaining compatibility with standard passive RFID tag infrastructure. Visit barcodesinc.com for technical specifications and frequency compliance documentation.
