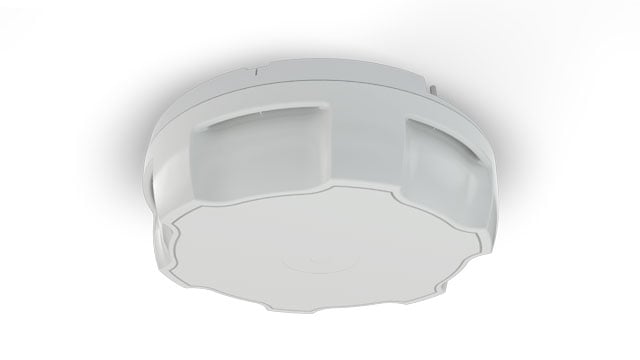

Zebra ATR7000-P2100A0-E8 RFID Reader
Full specifications (PDF)
Zebra ATR7000 RFID Reader Model Overview
The ATR7000 RTLS Reader revolutionizes operational efficiency with advanced RFID technology, enabling real-time visibility of your critical assets. With pinpoint accuracy of up to 2 ft. and the ability to detect asset movement, direction, and location, this reader empowers businesses to enhance productivity and streamline workflows. The ATR7000's easy integration with Zebra's RFID API and Configuration and Location Analytics Software (CLAS) allows for simplified management and monitoring of tagged assets, resulting in cost savings and improved asset visibility in complex environments.
Key Features
- Advanced RFID Technology: Proprietary technology that ensures superior accuracy and coverage.
- Real-Time Tracking: Monitor the location and movement direction of assets, even at peak speeds.
- Flexible Mounting Options: Easily installable with built-in pole mounts and standard VESA mounting.
- Cost Efficiency: Reduces hardware costs by covering larger areas with fewer units.
- No-Cost Tag Maintenance: Utilizes passive UHF tags that require no battery maintenance.
Specifications
- Physical Dimensions: Diameter 19.0 in. (482.6 mm), height 6.34 in. (161 mm) - Weight: 11.1 lbs (5.03 kg)
- Operating Temperature: -4° F to +131° F/-20° C to +55°C
- Storage Temperature: -40° F to +158° F/-40° C to +70° C
- Connectivity: 10/100 Base-T Ethernet, General Purpose I/O
- Power Supply: PoE+ (802.3at) or AC/DC power supply rated for +24Vdc, 3.25 A
- Location Accuracy: Typically within 2 ft./0.6 m
- Environmental Sealing: IEC IP51
- Warranty: 1-year limited warranty against defects
Recommended Accessories
Category
- Mounting Hardware and Stands (7)
- Power Device (1)
Recommended Accessories for Model: Zebra ATR7000-P2100A0-E8 RFID Reader
Top Mounting Hardware and Stands Purchased With Zebra ATR7000-P2100A0-E8
-
Zebra BRKT-VMATR7-00 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Vesa Mount for ATR7000, Vesa-75 and Vesa-100In Stock$34.54 -
Zebra BR-000237-01 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Telescopic Adjustable (18" to 32") Ceiling Mount Pole, White, Short (1'6" to 2'8")In Stock$237.67 -
Zebra BR-000237-02 Mounting Hardware and StandsMounting Hardware and Stands, Zebra, Telescopic Adjustable (36" to 66") Ceiling Mount Pole, White, Medium (3' to 5'6")In Stock$258.49
Top Power Device Purchased With Zebra ATR7000-P2100A0-E8
-
Zebra PWR-BGA24V78W1WW Power DevicePower Device, Zebra, Level VI AC/DC Power Supply with Captive DC Cable: AC Input 100-240V, 1.4A DC Output: 24V, 3.25A, 78W, -20 to +55 Degress C, Requires Country Specific Grounded AC Line CordIn Stock$111.47
Frequently Asked Questions
What is the location accuracy of the Zebra ATR7000 RFID reader?
The Zebra ATR7000 delivers real-time location tracking with accuracy better than 2 feet (0.6 meters), enabling precise asset visibility across your warehouse or logistics facility. This superior accuracy is achieved through proprietary advanced RFID technology with parallel multi-transmit/receive architecture and digital beam-forming capabilities.
How does the ATR7000's antenna design reduce hardware costs?
The ATR7000 features a wide-angle multi-polarized antenna array that covers up to double the area of competitive readers, allowing you to deploy fewer units across your facility. Combined with support for passive UHF RFID tags that require no maintenance, this design significantly lowers your total cost of ownership.
What power and mounting options are available for the ATR7000?
The ATR7000 supports flexible deployment with either PoE+ (Power over Ethernet) or a 24V DC power supply, and can be mounted using either a pole mount or VESA mount configuration. This flexibility allows seamless integration into existing warehouse infrastructure and network setups.
Is the ATR7000 suitable for harsh warehouse environments?
Yes, the ATR7000 is built for industrial durability with IP51 sealing to protect against dust and moisture, ESD protection for electronic safety, and compliance with global RF/EMI standards. These features ensure reliable operation in demanding warehouse and logistics environments.
How does the ATR7000 integrate with warehouse management systems?
The ATR7000 works seamlessly with Zebra's RFID API and features a web-based interface for simplified setup and remote monitoring of multiple readers. This enables straightforward integration with your existing Warehouse Management Systems (WMS) and business applications for real-time location intelligence.
What are the key performance advantages of the ATR7000's beam-steering technology?
The ATR7000's beam-steering capability electronically directs multiple narrow beams to provide precise location tracking and direction detection of tagged assets in real time. This advanced technology enables high-throughput processing of tagged items while improving compliance and loss prevention across your operation.
