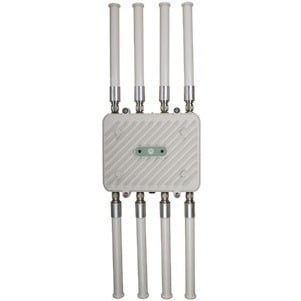

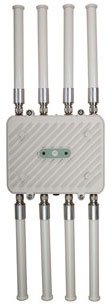

Zebra AP-8163-66S40-WR Wireless Access Points

Part Number: AP-8163-66S40-WR
Model: AP 8163

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Wireless Access Points, Motorola AP 8163, Outdoor Dual Radio 3x3: 3 11n with sensor radio WR

Motorola AP 8163 Wireless Access Points Model Overview

Extend your wireless LAN (WLAN) outdoors with the AP 8163, the rugged access point that is purpose built to enable the easy extension of robust wireless connectivity to workers in outdoor spaces. On the outside is a housing designed to handle virtually any weather condition. On the inside, three radios give you the power and flexibility to cost-effectively handle today's bandwidth-heavy applications and secure your data.
Zebra AP-8163-66S40-WR Wireless Access Points Overview
RUGGED DESIGN DElIVERS NEX TGENERATION HIGH PERFORMANCE WI-FI IN DEMANDING OUTDOOR ENVIRONMENTS

Break through your walls and extend your wireless LAN (WLAN) outdoors with the AP 8163. This rugged access point is purpose built inside and outside to enable the easy extension of robust wireless connectivity to workers in outdoor spaces. On the outside is a housing designed to handle virtually any weather condition. On the inside, three radios give you the power and flexibility to handle today's bandwidth-heavy applications and secure your data - without purchasing and managing an additional layer of equipment. Each of the two 802.11n radios can support either the 2.4 GHz or 5 GHz band, providing the flexibility to segment traffic as needed to maximize network and application performance. The third band-unlocked radio can be used to help increase security and network uptime as either a dedicated sensor for a Wireless Intrusion Prevention System (WIPS), enabling around the clock rogue detection - or as a Scan Ahead radio that can find clean channels and eliminate network outages due to radar interference in the 5 GHz band. And with high-powered radios, you'll experience greater capacity and better network performance with fewer access points, effectively reducing the cost of your wireless LAN.
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Total Number of Antennas:
8
Number of External Antennas:
8
Antenna Connector:
N-Type
Wireless Transmission Speed:
450 Mbit/s
Wireless Security:
  • WPA2
  • WPA
  • WIPS
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • LED Indicator
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Physical Characteristics
Height:
2.6"
Width:
10"
Depth:
9"
Weight (Approximate):
5.60 lb
Miscellaneous
Certifications & Standards:
Operation Shocks:
  • IEC60721-3-4
  • Class 4M3
  • MIL STD 810F
Safety:
  • uL / cuL 60950-1
  • IEC / EN60950-1
Radio Approvals:
  • FCC (USA)
  • Industry Canada
  • CE (Europe)
  • Australia
IEEE Standards:
  • 802.1x
  • 802.11d
  • 802.11i
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3at
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
