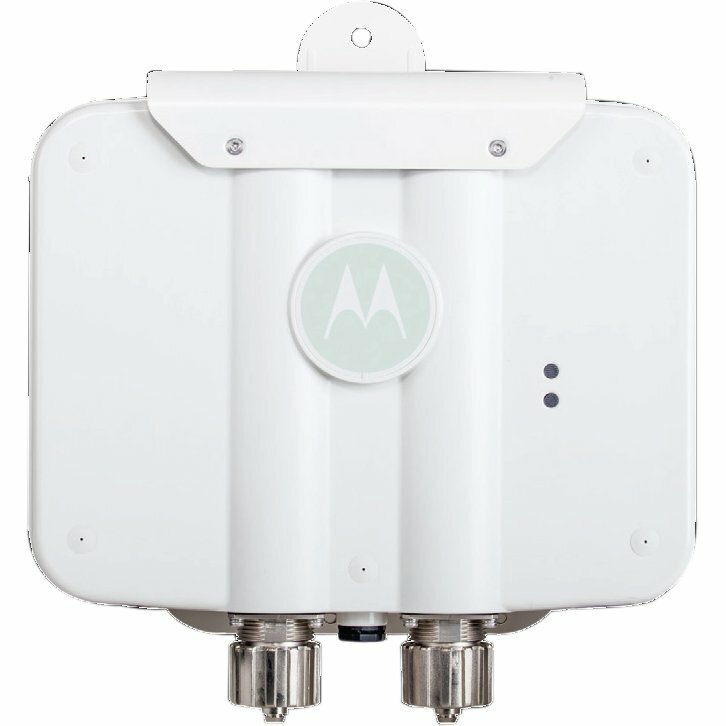

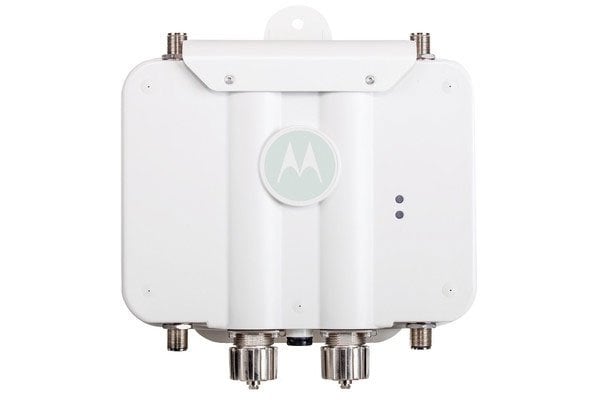

Zebra AP-6562-66030-WR Wireless Access Points

Part Number: AP-6562-66030-WR
Model: AP 6562

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Wireless Access Points, Motorola AP-6562, Outdoor Dual Radio Mesh Wireless Access Point (802.11n, Independent AP, Internal Antenna, WW Only, No Europe)

Motorola AP 6562 Wireless Access Points Model Overview

The AP 6562 access point is designed to help lower the cost of deploying and operating a secure, reliable, and targeted outdoor wireless network, all powered by the WiNG 5 architecture. Choose from two models: an integrated antenna model for fast wall mounting or an external antenna model for pole mounting and remote wireless backhaul. The access point features dual 802.11n 2x2 radios with superior receive and transmit performance, a console port for configuration, and a GiGE LAN/WAN POE-enabled port for local or remote network connectivity. With it's WiNG 5 intelligence, this access point seamlessly extends your network to the outdoors with higher throughput along with direct forwarding, security, QoS services and site survivability.
Zebra AP-6562-66030-WR Wireless Access Points Overview

Designed for extending Wi-Fi coverage to outdoor areas, the AP 6562 provides a cost-effective means of supporting the most demanding wireless applications and large number of wireless devices. Ideal for distribution centers, hospitality, retail, and education campuses, the AP 6562 can handle the increasing number of Wi-Fi enabled devices and bandwidth heavy applications connecting to your wireless network.

The AP 6562 access point is designed to help lower the cost of deploying and operating a secure, reliable, and targeted outdoor wireless network, all powered by the WiNG 5 architecture. Choose from two models: an integrated antenna model for fast wall mounting or an external antenna model for pole mounting and remote wireless backhaul. The access point features dual 802.11n 2x2 radios with superior receive and transmit performance, a console port for configuration, and a GiGE LAN/WAN POE-enabled port for local or remote network connectivity. With it's WiNG 5 intelligence, this access point seamlessly extends your network to the outdoors with higher throughput along with direct forwarding, security, QoS services and site survivability.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.18 GHz
UNII Maximum Frequency:
5.83 GHz
Antenna Gain (Isotropic):
  • 3 dBi
  • 5 dBi
  • 6 dBi
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
Wireless IPS
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Network (RJ-11):
No
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Pole-mountable
Height:
9.8"
Width:
9.1"
Depth:
2.6"
Weight (Approximate):
2.90 lb
Miscellaneous
Certifications & Standards:

Regulatory:

  • UL 60950
  • cUL
  • EU EN 60950
  • TUV
  • UL 2043

Radio Approvals:

  • FCC
  • CE
  • TELEC

IEEE Standards:

  • 802.11g
  • 802.11a
  • 802.11n
  • 802.11b
  • 802.3at
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43222631
