Zebra 384Z-10302-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review

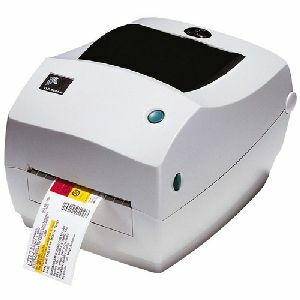

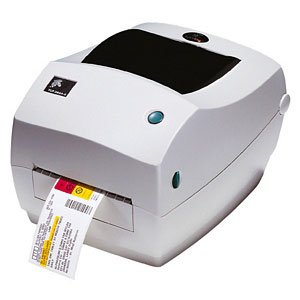

Zebra TLP 3844-Z - Thermal transfer, 300 dpi, 4 ips, 4.25" print width, parallel, serial & USB interfaces, 8MB SDRAM, 4MB flash. Includes US power supply and cutter. Order cables separately. See accessories.

The 3844-Z Series's 300 dpi printhead enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional barcodes, fine text, or composite graphics. Scanning and reading data on very small labels, for example laboratory vial labels or jewelry tags, is greatly enhanced. Quickly and easily network the 3844-Z Series into an Ethernet environment with the optional internal ZebraNet PrintServer II.

Technical Information

  • Print Method:
    • Direct Thermal
    • Thermal Transfer (TT)
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 4 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Sensor:
    • Reflective
    • Transmissive
  • Input Voltage Range: 100 to 240 V AC
  • RAM Memory: 8MB
  • Flash Memory: 4MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.8" (198.12mm) x 9.4" (239mm)
    • 6.8" (172.72mm) x 7.8" (198.12mm) x x 9.4" (239mm)
  • Weight: 3.7 lb (1.68 kg)
  • Shipping Weight: 6.3lb (2.86kg)

Included Features

  • Included Features: Cutter

Agency Approvals

  • Agency Approvals:
    • FCC
    • VCCI
    • PSE
    • C-TICK
    • UL
    • IRAM/S
    • NOM
    • GOST-R
    • CSA
    • CE
    • CCC
    • SRRC
    • CB
    • BSMI

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"

Other

  • Package Contents:
    • TLP 3842 Label Printer User Documentation: English/European/Latin America
    • TLP 3842 Label PrinterUser Documentation: English/European/Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 3844-Z Series
Print Method Thermal Transfer
Print Speed 4
Interface Options Parallel, Serial, USB
Print Resolution 305 dpi
Label Core 1 inch
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Max Label Width 4.25
Printer Type Desktop
Included Features Cutter
Printer Mobility Not Mobile
Ribbon Core 0.5
