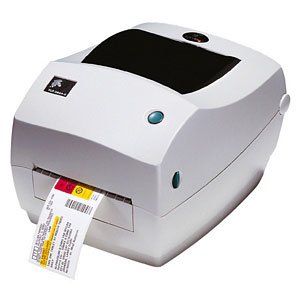

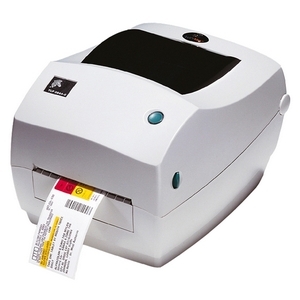

Zebra 384Z-10301-0001 Barcode Label Printer

Zebra GX43-102511-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX43-102511-000 Barcode Label Printer.
Zebra 3844-Z Series - Thermal transfer & direct thermal, 300 dpi, 4 ips, 4.25" print width, parallel, serial & USB interfaces, 8MB SDRAM, 4MB flash. Includes U.S. power supply and dispenser. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Dispenser
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • 4.25" maximum label width for your convenience and feasible usability
  • 39" maximum label length for your convenience and feasible usability
  • Supports roll fed media type for dependable, efficient results with maximum productivity
  • Cutter effectively designs a line around your design to help determine what specific shape you're after to ensure maximum dependability
  • Comes with 8 MB standard memory to ensure maximum efficiency with great quality printing results
Read More

Need a different version? See all Zebra 3844-Z Series Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 384Z-10301-0001 Barcode Label Printer
Zebra 384Z-10301-0001 Barcode Label Printer Zebra 384Z-10301-0001 Barcode Label Printer Zebra 384Z-10301-0001 Barcode Label Printer
Zebra 384Z-10301-0001 Barcode Label Printer
Zebra 384Z-10301-0001 Barcode Label Printer

Full specifications (PDF)
Zebra 3844-Z Series Barcode Label Printer Model Overview
The 3844-Z Series's 300 dpi printhead enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional barcodes, fine text, or composite graphics. Scanning and reading data on very small labels, for example laboratory vial labels or jewelry tags, is greatly enhanced. Quickly and easily network the 3844-Z Series into an Ethernet environment with the optional internal ZebraNet PrintServer II.
Zebra 384Z-10301-0001 Barcode Label Printer Overview

The TLP 3844-Z desktop printer with ZPL capability brings high resolution performance to the ZPL desktop architecture. The 3844-Z's 300 dots-per-inch printhead enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional bar codes, fine text, or composite graphics. Scanning and reading data on very small labels, such as laboratory vials or electronic components, is greatly enhanced.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 128
  • Code 93
  • Code 39
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • ISBT-128
  • LOGMARS
  • MSI
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • EAN With 2 or 5 Digit Extension
  • RSS-14
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • Micro PDF-417
  • UPC-A
  • UPC-E
  • EAN-14
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
Memory
Standard Memory:
8 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Form
  • Tag Stock
  • Continuous Receipt
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
39"
Label Core Size:
1.50"
Fonts & Emulation
Language Emulation:
ZPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.8"
Depth:
9.4"
Miscellaneous
Package Contents:
  • TLP 3844-Z Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Power: USA and Europe
  • Printer Font Set: USA and European
  • No Real Time Clock
  • User Documentation: English/European/Latin America
  • Auto-Calibration
  • Head-up sensor
  • Zebra Printer Management
  • Zebra E3 Printhead Energy Control
  • Reflective &Transmissive Media Sensors
Platform Supported:
PC
Certifications & Standards:
  • FCC
  • VCCI/PSE
  • C-TICK
  • UL
  • IRAM/S
  • NOM
  • GOST-R
  • CSA
  • CE
  • CCC/SRRC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 384Z-10301-0001 Barcode Label Printer is also known as ZEB-384Z103010001 or 384Z103010001.
