Barcodes,Inc.

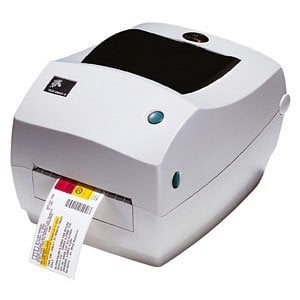

Zebra 384Z-10300-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra TLP 3844-Z - Thermal transfer, 300 dpi, 4 ips, 4.25" print width, parallel, serial & USB interfaces, 8MB SDRAM, 4MB flash. Includes US power supply. Order cables separately. See accessories.

The 3844-Z Series's 300 dpi printhead enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional barcodes, fine text, or composite graphics. Scanning and reading data on very small labels, for example laboratory vial labels or jewelry tags, is greatly enhanced. Quickly and easily network the 3844-Z Series into an Ethernet environment with the optional internal ZebraNet PrintServer II.

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 300 dpi
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Codabar
    • Code 11
    • Code 128
    • Code 93
    • Code 39
    • EAN-13
    • EAN-8
    • Industrial 2 of 5
    • Interleaved 2 of 5
    • ISBT-128
    • LOGMARS
    • MSI
    • Plessey
    • POSTNET
    • Standard 2 of 5
    • UPC 2 or 5 Digit Extension
    • EAN With 2 or 5 Digit Extension
    • RSS-14
    • Codablock
    • Code 49
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • RSS
    • Micro PDF-417
    • UPC-A
    • UPC-E
    • EAN-14
    • UPC-A with 2 or 5 Digit Extension
    • UPC-E with 2 or 5 Digit Extension
    • RSS14 Limited
    • RSS14 Truncated
    • RSS Composite
    • RSS14 Stacked

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: TLP
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 3844-Z
  • Product Name: TLP 3844-Z Thermal Label Printer
  • Product Line: Desktop

Physical Characteristics

  • Height: 6.8"
  • Width: 7.8"
  • Depth: 9.4"

Other

  • Platform Supported: PC
  • Package Contents:
    • TLP 3842 Label Printer
    • User Documentation: English/European/Latin America
    • TLP 3842 Label Printer
    • User Documentation: English/European/Latin America
  • Certifications & Standards:
    • FCC
    • VCCI/PSE
    • C-TICK
    • UL
    • IRAM/S
    • NOM
    • GOST-R
    • CSA
    • CE
    • CCC/SRRC
  • Additional Information:
    • Power: USA and Europe
    • Printer Font Set: USA and European
    • No Real Time Clock
    • User Documentation: English/European/Latin America
    • Auto-Calibration
    • Head-up sensor
    • Zebra Printer Management
    • Reflective &Transmissive Media Sensors

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Black Bar
    • Continuous Form
    • Continuous Receipt
    • Die-cut Label
    • Fanfold
    • Notched
    • Perforated Label
    • Receipt
    • Roll Fed
    • Tag Stock
    • Tag
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model 3844-Z Series
Interface Options Serial, USB, Parallel
Printer Type Desktop
Print Method Thermal Transfer
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Max Label Width 4.25
Print Speed 4
Print Resolution 305 dpi
Label Core 1 inch
Printer Mobility Not Mobile
Ribbon Core 0.5


Customer Review Summary

Recommended Accessories for Model: Zebra 3844-Z Series Printer
Cables To Go Cables (13172)
6 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-02M).
In Stock: Ships Same Day
$12.30
+ Add to Quote
BCI (2901-6MF9)
6' Serial cable (25 pin male to 9 pin female)
In Stock: Ships Same Day
$11.90
+ Add to Quote
Cables To Go Cables (13400)
10 ft. USB cable (USB 2.0, A to B). Replaces (Part# USB-5000-03M).
In Stock: Ships Same Day
$12.70
+ Add to Quote
Zebra (2901-9MF9ST)
Cable, Serial, 6 feet, Straight, DB-9 to DB-9, Compatible with Zebra.
Ships in 3-5 Days
$11.40
+ Add to Quote
Recommended Labels for Model: Zebra 3844-Z Series Printer
Zebra Z-Ultimate 4000T White (10002629-R)
2" x 1" Thermal transfer polyester label. 2,530 labels/roll, single roll. Also available as a case (Part# 10002629).
In Stock: Ships Same Day
$65.20
+ Add to Quote
Zebra PolyPro 4000D (10010063-R)
2.25" x 1.25" Direct thermal polypropylene label. 2,000 labels/roll, single roll. Also available as a case (Part# 10010063).
In Stock: Ships Same Day
$29.60
+ Add to Quote
Zebra Z-Perform 2000D (10010028-R)
2" x 1" Direct thermal paper label. 2,340 labels/roll, single roll. Also available as a case (Part# 10010028).
In Stock: Ships Same Day
$14.80
+ Add to Quote
Zebra PolyPro 3000T (17154-R)
2" x 1" Thermal transfer polypropylene label. 2,100 labels/roll, single roll. Also available as a case (Part# 17154).
In Stock: Ships Same Day
$29.50
+ Add to Quote
Zebra PolyPro 3000T (18930-R)
1.5" x 0.5" Thermal transfer polypropylene label. 3,780 labels/roll, single roll. Also available as a case (Part# 18930).
In Stock: Ships Same Day
$36.00
+ Add to Quote
Recommended Ribbons for Model: Zebra 3844-Z Series Printer
Zebra 5095 Performance Resin (05095GS11007-R)
4.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (05095GS11007)
In Stock: Ships Same Day
$15.90
+ Add to Quote
Zebra 3200 Performance Wax-Resin (03200GS11007-R)
4.3" x 244' Black Wax-Resin Ribbon, Compatible with Desktop printers and Polypropylene Labels, rolls/case: 1, Core Size: 0.5", single roll. Available as a case (03200GS11007)
In Stock: Ships Same Day
$9.40
+ Add to Quote
Zebra 5319 Wax (05319GS08407-R)
3.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(05319GS08407)
In Stock: Ships Same Day
$6.30
+ Add to Quote
Zebra 5095 Performance Resin (05095GS11007)
4.3" x 244' Black Resin Ribbon, Compatible with Desktop printers and Polyester Labels, Rolls per Case: 12, Core Size: 0.5", Available as a single roll (05095GS11007-R)
In Stock: Ships Same Day


5.0

(1 reviews)

$176.60
+ Add to Quote
Zebra 5319 Wax (05319GS11007-R)
4.3" x 244' Black Wax Ribbon, Compatible with Desktop printers and Paper Labels, Rolls per Case: 1, Core Size: 0.5", Priced per roll. Available as a case(05319GS11007)
In Stock: Ships Same Day
$8.20
+ Add to Quote
Recommended Printheads for Model: Zebra 3844-Z Series Printer

The Zebra 384Z-10300-0001 is also known as ELT-384Z103000001 or 384Z103000001 .
