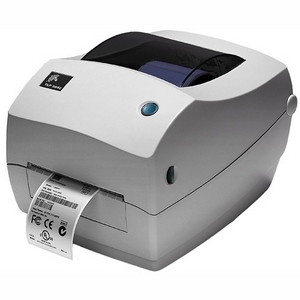

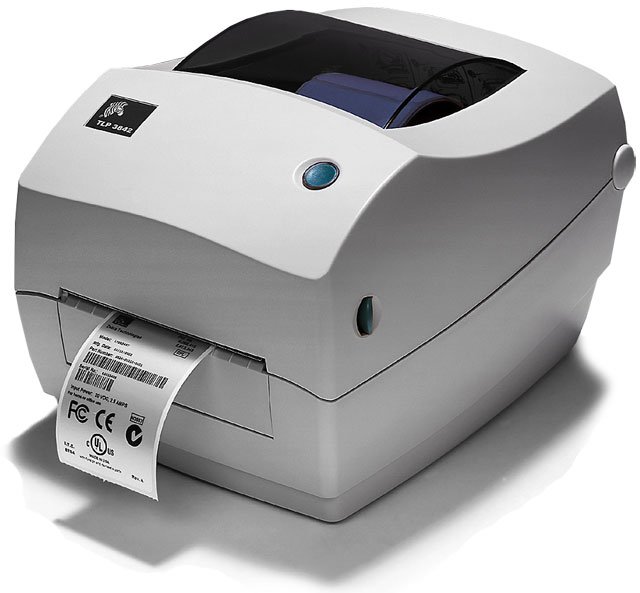

Zebra 3842-10402-0001 Barcode Label Printer

Zebra GX43-102410-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX43-102410-000 Barcode Label Printer.
Zebra TLP 3842 - Thermal transfer & direct thermal, 300 dpi, 2 ips, 4" print width, serial, USB & ZebraNet PrintServer II interfaces, 512KB RAM, 1MB flash. Includes U.S. power supply & cutter. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Cutter
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 300 maximum print resolution (dpi) for your convenience and easy usage
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Save time and money for your business by using one printer for all your employees
  • 4.25" maximum label width for your convenience and feasible usability
  • 11" maximum label length for your convenience and feasible usability
  • Supports fanfold media type for dependable, efficient results with maximum productivity
  • Features multi-functional knives for conveniently cutting the paper to provide you with the desired shape
  • Comes with 512 KB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra TLP 3842 Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 3842-10402-0001 Barcode Label Printer
Zebra 3842-10402-0001 Barcode Label Printer Zebra 3842-10402-0001 Barcode Label Printer Zebra 3842-10402-0001 Barcode Label Printer
Zebra 3842-10402-0001 Barcode Label Printer
Zebra 3842-10402-0001 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 3842 Barcode Label Printer Model Overview
The Zebra TLP 3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional barcodes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.
Zebra 3842-10402-0001 Barcode Label Printer Overview

The TLP 3842's enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional bar codes, fine text, or composite graphics. Producing data on very small labels. The TLP 3842 is used for a variety of applications, including prescription bottle labeling, laboratory specimen labeling, electrical component, and mechanical part labeling.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Codabar
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Interleaved 2 of 5 A
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN-13
  • EAN-8
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • RSS-14
  • MSI-3
  • Maxi Code
  • Micro PDF-417
  • Macro PDF-417
  • QR Code
  • Data Matrix
Memory
Standard Memory:
512 KB
Flash Memory:
1 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Cutter
Cutter:
Yes
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Fed
  • Tag Stock
  • Continuous Receipt
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
11"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 3842 Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Printer Font Set: USA and European
  • Transmissive & Reflective Media sensors
  • User Documenttaion: English/European/LatinAmerica
  • 1 MB Flash & 512 KB SRAM without Real Time Clock
Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC
  • VCCI/PSE
  • C-TICK
  • NOM
  • CSA
  • CE
  • CB
  • CCC
  • IRAM
  • BSMI
  • GOST
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 3842-10402-0001 Barcode Label Printer is also known as ZEB-3842104020001 or 3842104020001.
