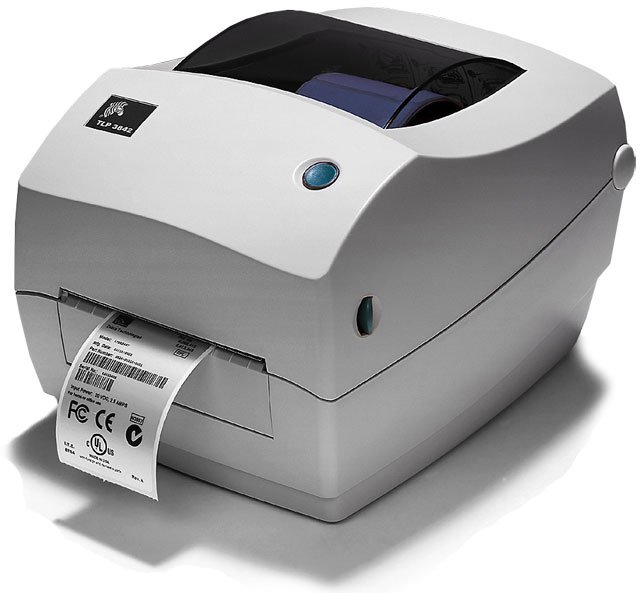

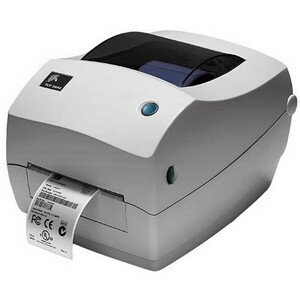

Zebra 3842-10401-0001 Barcode Label Printer

Zebra GX43-100411-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX43-100411-000 Barcode Label Printer.
Zebra TLP 3842 - TLP 3842 Thermal Transfer Desktop Label and Receipt Printer (EPL2 Command Language, Serial, PrintServerII and USB Interfaces, 100-240VAC US, Dispenser, 512K RAM, 1MB Flash and No Real Time Clock)
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
  • A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
  • 300 maximum print resolution (dpi) offers great dependability with added efficiency
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Label Print gives dependable results with maximum productivity
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 4.25" maximum label width for your convenience and feasible usability
  • 11" maximum label length to easily accommodate your needs with added productivity
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Dispenser feature for maximum efficiency and convenience
  • Comes with 512 KB standard memory to make you productive with the direct thermal/thermal transfer printer?s smooth performance
Read More

Need a different version? See all Zebra TLP 3842 Barcode Label Printers

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Zebra 3842-10401-0001 Barcode Label Printer
Zebra 3842-10401-0001 Barcode Label Printer Zebra 3842-10401-0001 Barcode Label Printer Zebra 3842-10401-0001 Barcode Label Printer
Zebra 3842-10401-0001 Barcode Label Printer
Zebra 3842-10401-0001 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 3842 Barcode Label Printer Model Overview
The Zebra TLP 3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional barcodes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.
Zebra 3842-10401-0001 Barcode Label Printer Overview

he TLP 3842 300 dpi print head enables high quality, crisp, clear printing for labeling applications that require data such as two-dimensional bar codes, fine text, or composite graphics. Producing data on very small labels, for example laboratory vial labels or jewelry tags, is greatly enhanced by the high-density 300 dpi print resolution.Equipped with serial, parallel, and USB interfaces, Zebra's 3842 offers versatile connectivity and integration.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Codabar
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Interleaved 2 of 5
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN-13
  • EAN-8
  • EAN-8 With 2 or 5 Digit Extension
  • EAN-13 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • RSS-14
  • MSI-3
  • Maxi Code
  • Micro PDF-417
  • Macro PDF-417
  • QR Code
  • Data Matrix
Features:
Dispenser
Memory
Standard Memory:
512 KB
Memory Technology:
SRAM
Flash Memory:
1 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Label
  • Continuous Form
  • Fanfold
  • Tag Stock
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
7 mil
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
11"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Additional Information:

No Real Time Clock

Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC
  • VCCI/PSE
  • C-TICK
  • NOM
  • CSA
  • CE
  • GOST-R
  • BSMI
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 3842-10401-0001 Barcode Label Printer is also known as ZEB-3842104010001 or 3842104010001.
