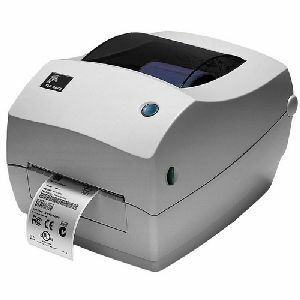

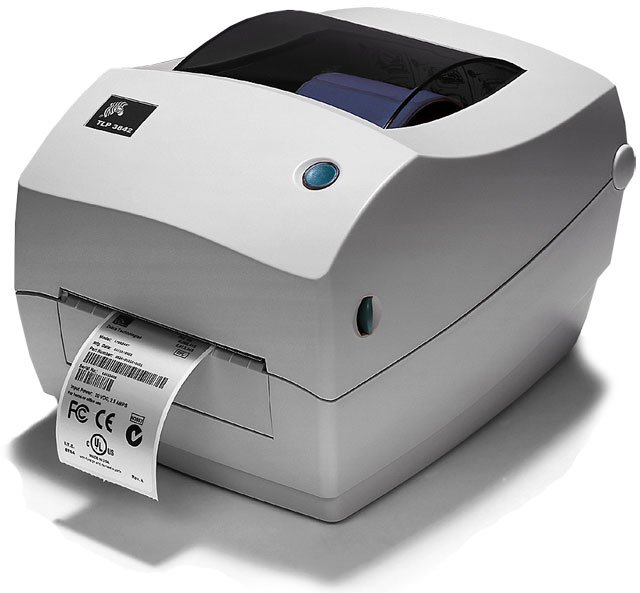

Zebra 3842-10400-0001 Barcode Label Printer

Zebra GX43-102410-000 Barcode Label Printer A newer version of this item is available.
It is replaced by the Zebra GX43-102410-000 Barcode Label Printer.
Zebra TLP 3842 - Thermal transfer & direct thermal, 300 dpi, 2 ips, 4" print width, serial, USB & ZebraNet PrintServer II interfaces, 512KB RAM, 1MB flash. Includes U.S. power supply. Order cables separately. See accessories.
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
Ethernet, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.25 inch
Ribbon Core Size
0.5 inch
  • Direct Thermal/Thermal Transfer Printer provides high-quality label/receipt printing with maximum dependability
  • 300 maximum print resolution (dpi) for better reliance and added usability
  • Delivers high-speed, hassle-free labeling solution for your business needs
  • Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
  • 4.25" maximum label width for your convenience and feasible usability
  • 11" maximum label length for dependable, desired results
  • Supports fanfold media type for better reliance and maximum usability
  • Comes with 512 KB standard memory for timely printing with added reliability
Read More

Need a different version? See all Zebra TLP 3842 Barcode Label Printers

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Zebra 3842-10400-0001 Barcode Label Printer
Zebra 3842-10400-0001 Barcode Label Printer
Zebra 3842-10400-0001 Barcode Label Printer
Zebra 3842-10400-0001 Barcode Label Printer Zebra 3842-10400-0001 Barcode Label Printer

Full specifications (PDF)
Zebra TLP 3842 Barcode Label Printer Model Overview
The Zebra TLP 3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional barcodes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.
Zebra 3842-10400-0001 Barcode Label Printer Overview

The space-saving TLP 3842 desktop printer, for print widths up to 4 inches, adds high-resolution print capability to Zebra's popular and proven Desktop series. The TLP 3842's 300-dpi printhead enables high-quality, crisp, clear printing of two-dimensional bar codes, fine text, and complex graphics - ensuring high-density data on very small labels is easy to read and highly scannable.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Codabar
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Interleaved 2 of 5 A
  • UPC-A
  • UPC-E
  • UPC-A with 2 or 5 Digit Extension
  • UPC-E with 2 or 5 Digit Extension
  • EAN-13
  • EAN-8
  • EAN-13 With 2 or 5 Digit Extension
  • EAN-8 With 2 or 5 Digit Extension
  • POSTNET
  • Japan Postal
  • Plessey
  • German Post Code
  • RSS-14
  • MSI-3
  • Maxi Code
  • Micro PDF-417
  • Macro PDF-417
  • QR Code
  • Data Matrix
Memory
Standard Memory:
512 KB
Flash Memory:
1 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Fanfold
  • Roll Fed
  • Tag Stock
  • Continuous Receipt
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Maximum Roll Diameter:
5"
Maximum Label Width:
4.25"
Maximum Label Length:
11"
Label Core Size:
1.50"
Ribbon Core Size:
0.50"
Fonts & Emulation
Language Emulation:
EPL II
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
6.8"
Width:
7.9"
Depth:
9.8"
Miscellaneous
Package Contents:
  • TLP 3842 Label Printer
  • User Documentation: English/European/Latin America
Additional Information:
  • Printer Font Set: USA and European
  • Transmissive & Reflective Media sensors
  • User Documentation: English/European/Latin America
  • 1 MB Flash & 512 KB SRAM without Real Time Clock
Platform Supported:
PC
Certifications & Standards:
  • UL
  • FCC
  • VCCI/PSE
  • C-TICK
  • NOM
  • CSA
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 3842-10400-0001 Barcode Label Printer is also known as ELT-3842104000001 or 3842104000001.
