Barcodes,Inc.

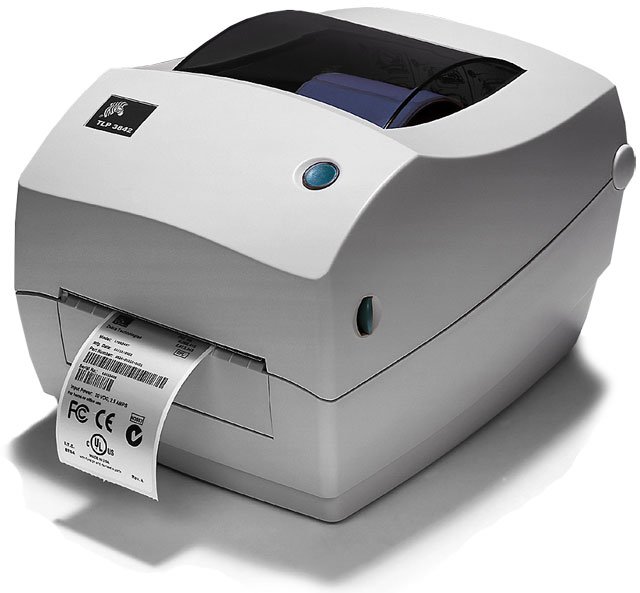

Zebra 3842-10302-0001 Barcode Printer


0.0

(No reviews)

Be the first to

Write a Review
Zebra TLP 3842 - Thermal transfer, 300 dpi, 2 ips, 4" print width, parallel, serial & USB interfaces, 512KB RAM, 1MB flash. Includes US power supply & cutter. Order cables separately. See accessories.
300 dpi printing at an affordable price.

The Zebra TLP 3842's 300 dpi printhead enables high quality, crisp, clear printing in applications requiring data such as two-dimensional barcodes, fine text or composite graphics. 300 dpi resolution printing also ensures that very small labels, such as those used on laboratory vials or items of jewelry, are easy to read and scan.

Technical Information

  • Print Method:
    • Thermal Transfer (TT)
    • Direct Thermal
    • Direct Thermal (DT)
  • Print Resolution: 300 dpi
  • Print Speed: 2 ips
  • Interfaces:
    • 1 x Parallel
    • 1 x Serial
    • 1 x USB
  • Maximum Print Width: 4.09"
  • Maximum Label Width: 4.25"
  • Maximum Label Length: 11"
  • Media Sensor:
    • Transmissive
    • Reflective
  • Printer Language: EPL II
  • Input Voltage Range: 100 to 200 V AC
  • Power Supply: External Not Included
  • RAM Memory: 512KB
  • Flash Memory: 1MB
  • Mobile Printer: No

General Information

Physical Characteristics

  • Dimensions:
    • 6.8" (172.72mm) x 7.9" (200.66mm) x 9.75" (248mm)
    • 6.8" (172.72mm) x 7.9" (200.66mm) x x 9.75" (248mm)
  • Weight: 3.2 lb (1.45 kg)
  • Shipping Weight: 5.8lb (2.63kg)

Included Features

  • Included Features: Cutter

Agency Approvals

  • Agency Approvals:
    • UL-CUL
    • FCC
    • VCCI/PSE
    • C-TICK
    • NOM
    • CSA
    • CE
    • CB
    • CCC
    • IRAM
    • BSMI
    • GOST

Environmental Conditions

  • Temperature:
    • 40°F (4°C) to 105°F (41°C) Operating - Thermal Transfer
    • 40°F (4°C) to 105°F (41°C) Operating - Direct Thermal
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity:
    • 10 to 90% Operating Non-condensing
    • 5 to 95% Storage Non-condensing

Media Characteristics

  • Maximum Label Roll Diameter: 5"
  • Label Core Size: 1.5"
  • Ribbon Core Size: 0.5"
  • Ribbon Setup: Wound Out

Other

  • Package Contents:
    • TLP 3842 Label Printer User Documentation: English/European/Latin America
    • TLP 3842 Label PrinterUser Documentation: English/European/Latin America

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Zebra
Model TLP 3842
Print Method Thermal Transfer
Interface Options Serial, Parallel, USB
Printer Type Desktop
Included Features Cutter
Max Label Width 4.25
Print Resolution 305 dpi
Label Core 1 inch
Max Roll Outer Diameter 5
Maximum Print Width 4.09
Print Speed 2
Printer Mobility Not Mobile
Ribbon Core 0.5
