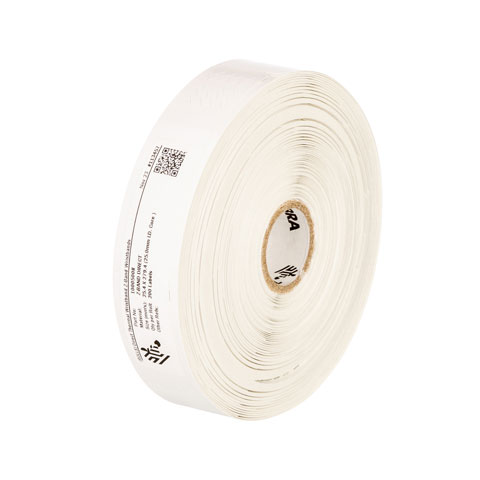

Zebra 3014578 RFID Wristband

• Smallest inlay with NXP UCODE 8 for item level applications
• Offers good sensitivity with read ranges up to 10m in free space
• Meets Auburn University RFID Lab ARC quality performance categories A, B, C, D, G, M, Q
• Theoretical read ranges up to 10m on various surfaces

This inlay is designed for use in item level applications, and transportation and logistics sectors. For more information, visit www.zebra.com/supplies

Product Performance and Suitability:

The information contained in this document is to be used for guidance only and is not intended for use in setting specifications. All purchasers of Zebra products shall be solely responsible for independently determining if the product conforms to all requirements of their unique application.

DETAILS

• General Purpose inlay • Applications: Item tracking • Meets Auburn ARC Specs: A, Q

TECHNICAL INFORMATION

• Chip: NXP UCODE 8 o EPC memory: 128 bit o User memory: N/A o TID: 96 bit factory locked (48 bit unique) o Read Sensitivity: -23dBm o Write Sensitivity: -18dBm o EPC Gen2v2 • Good sensitivity chip with read ranges up to 10m in free space

RADIATION PATTERN*

THEORETICAL** READ RANGES ON VARIOUS SURFACES (m)

Material ETSI (865-868 MHz) FCC (902-928 MHz) Air 6 10 Cardboard 6 7 Fiberglass 3 4 Glass 3 2 PTFE 7 7 Polyacetyl 4 5 PVC 4 6 Rubber 3 2 * Read range drops to 11% of maximum when inlay is perpendicular (90º and 270º) to the reading antenna. **Theoretical read range data is meant to be directional. Actual performance will depend on your application and environment. Testing is recommended. All inlays certified by Zebra have been pre-tested with Zebra printers and readers. For more information on Auburn’s ARC specifications, testing, and the certification process, please go to rfid.auburn.edu.

SUGGESTED APPLICATIONS

• Item level tracking
